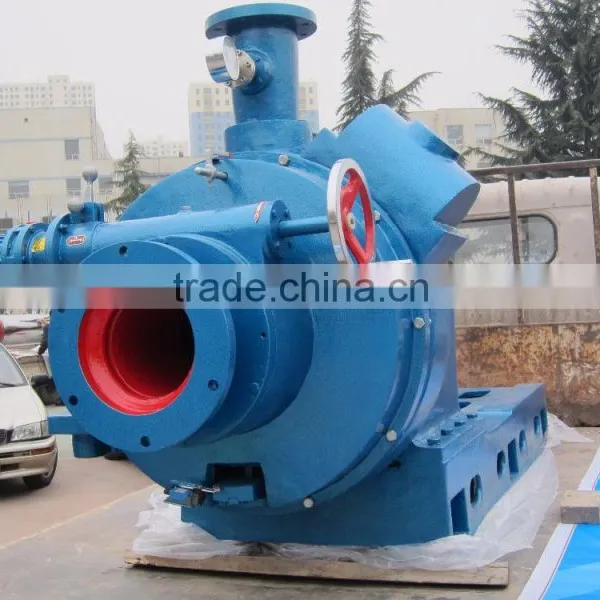

Disc Refiner for paper pulp recycling machine
The equipment is available for continuous beating of chemical wood pulp, mechanical pulp and waste paper pulp. It is furnished with automatic control system and can beat with constant power or constant energy consumption. The beating effect is stable.
ZM series disc refiner mainly used in purified pulp continuous beating and waste paper pulp beating in paper making industry. It can be used with double disc refiners,but with conical refiners and also can be used alone.It has the advantages:new design,resonable structure,high yield and good quality.
Type Item |
ZM 550 |
Gig End Diameter of Rotor (mm) |
Φ550 |
Conical degree(°) |
40 |
Productivity |
20-60 |
Consistency of input pulp(%) |
3-5 |
Diameter of inflow tube(mm) |
Φ150 |
Diameter of outflow tube(mm) |
Φ125 |
Motor Power(kw) |
160-500 |
Out size dimension(mm) |
3200×990×1000(L*W*H) |
disc refiner for paper pulp
pulp machine
disc refiner
Beating machine is suitable for continuous refining of wood pulp, mechanical and waste paper pulp of consistency of 3%-5%, it is ideal the syrup beats to strach the epuipments.
Internal structure of disc refiner
paper product making machinery like following
ZM series conical refiner
ZDP series double disc refiner
Advantages
1. New design,resonable structure,high yield and good quality.
2. Large capacity, high beating efficiency, low energy consumption.
3. Pumping effect of the refining zone is longer, the centrifugal force generated is smaller, and
thus the fiber in the longer stay time of the refining zone, the fiber by refining the role of increased frequency of the stator refining area, while receipt of refining the role of fiber number, fiber processing of more uniform.
4. The conical grinding motor, the size of the fixed ring gear is small, compact structure; the dynamic side of the ring gear size larger diameter, the move given the gap between the ring gear are better than the centrifugal acceleration of the plasma flow, so fiber driven deep and wide ring gear grinding machine has strong tear, broom and fine fibers on the paper fibers.
Whole Stock Preparation Line In Egypt
Project: Whole set of 150t/d Kraft Liner, Fluting, White board paper, T-paper Stock Preparation Line.
Customer company: Egypt Al- Karma Paper Industries
Address: Sadat city, Egypt.
Time: 2015
Working Site
Project: 600T/D T-Paper, Fluting&Testliner Paper production line .
Project: Toilet Tissue Roll Making Project Egypt.
---About Leizhan
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment.
Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support.
---Trading Nation
We have exported to many foreign countries,for example, Russia, Egypt, Iran, Argentina, Uzbekistan, Turkmenistan, Burma, Vietnam, Pakistan etc. And we are looking forward to establish cooperation relationship with friends all around the world.We warmly welcome you on-the-spot investigation!
Acceptance standard
- Unless stipulated in the technical documents accordingly, technology acceptance standards of designed main parts are in accordance with relevant state departments issued current relevant standards.
- providing main parts technology acceptance standard of technical design.
Technical service
- During paper machine installation, We cooperate with buyer for technological improvement to reach desired results.
- We explains paper machine performance, structure and operation to buyer related people for free.
Quality guaranteed
- We makes sure paper machine achieve promised performance with correct installation, commissioning, normal operation and maintenance.
- In warranty period, for quality problem, we repair and replace defective parts for free(except quick-wear part).
Welcome to visit us, we are located in Zhengzhou city, Henan province, We will pick you up at air port.
