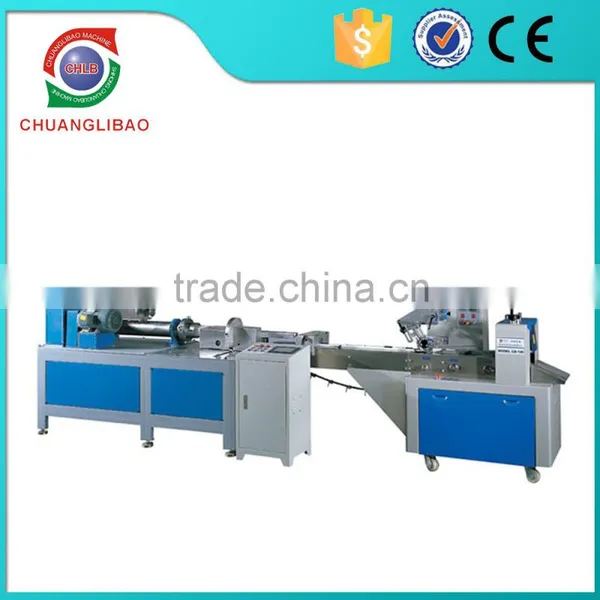

Film Width 280Mm Automatic Manual Soap Wrapping Machine

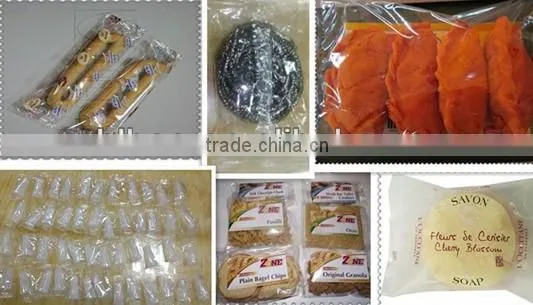

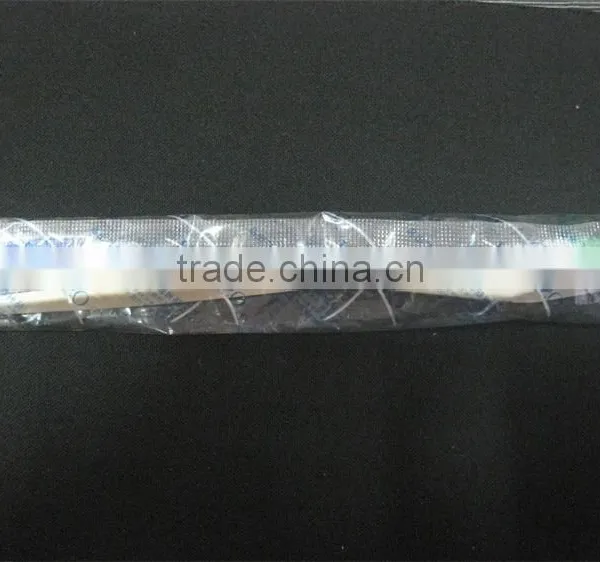

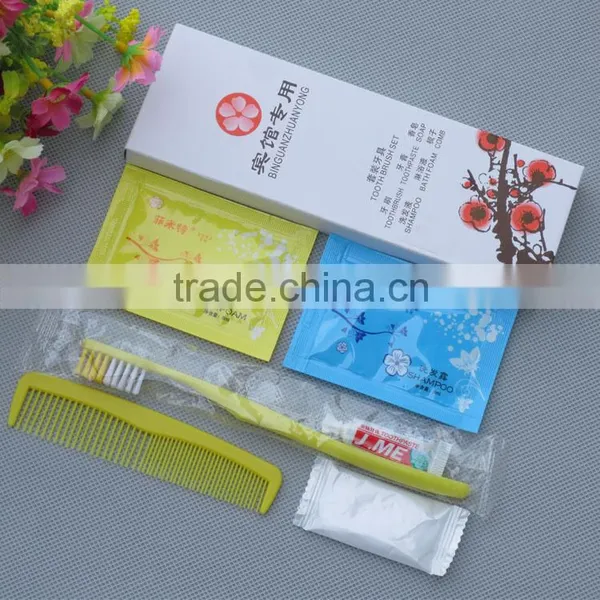

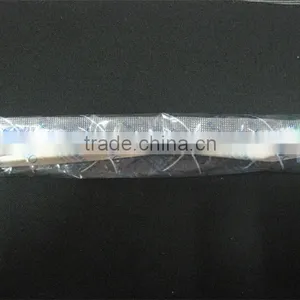

Sample display:

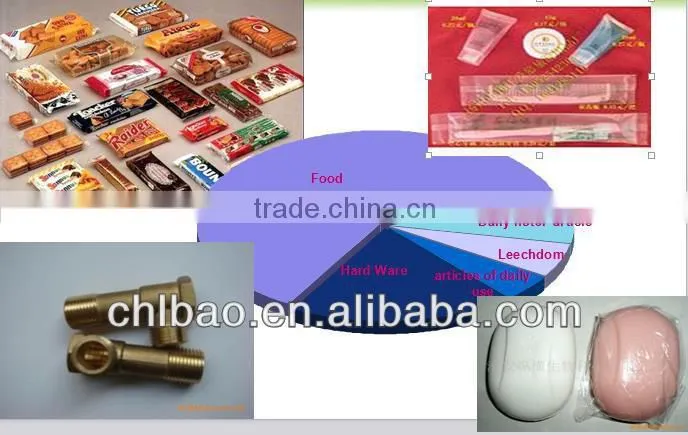

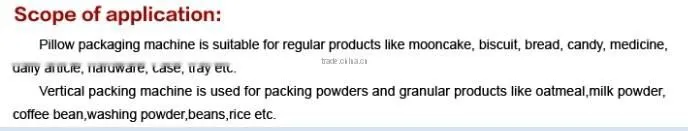

Scope of application:
Suitable for regular products like moon cake, biscuit, bread, candy, medicine, daily article, toothbrush, hardware, carton, tray etc.
Technical Specifications:
Model |
CB-100 |
Single knife |
Bag size: L (160-300) ×W (30-90) × H (3-35) mm |
Speed: 100 bags/min | |
Double knife |
Bag size: L (80-150) × W (30-90)× H (3-55) mm |
Speed: 200 bags/min | |
Thickness of film |
30-70 um |
Width of film |
≤220 mm |
Dimension of film roll |
outer diameter ≤300 mm inner diameter ≤75mm |
Power requirement |
220V, 50HZ, 3KW |
Machine size |
L 3868* W 860* H 1510 |
Machine Weight |
550KG |
Optional device |
printer, gas charging device, feeder, tidier |
Function Description:
1. The key parts of the machine are adopted of stainless structure, in accordance with food QS and medicine GMP health requirements.
2. Controlled by dual frequency conversion, the cutting of bag length is following the length setting, saving time and film.
3. High sensitive electronic eye tracing system, after setting, the machine is no need to be adjusted by hand, the cutting position is accuracy, and the seal is firm and beautiful.
4. Temperature is controlled by PID intelligence independently and steadily which is suitable for various materials.
5. Machine can be turned off by position; fault is self-diagnosed and displayed clearly.
6. Counting automatically, the packaging production’s counting is accuracy.
7. Machine design and convey system is simple. The machine is convenient to maintain.
8. The machine can be equipped with gas charging device and production date code system according to client’s packaging requirements.
Spare Parts machine:
Parts |
Tools |
||
Heat tube |
2 pcs |
Inner turret spanner |
1 set |
Solid relay |
1 pcs |
Monkey wrench |
1 set |
Knife (up & down) |
1 pairs |
Screwdriver |
1 set |
Printing ink roll |
3pcs |
Manual |
1 piece |

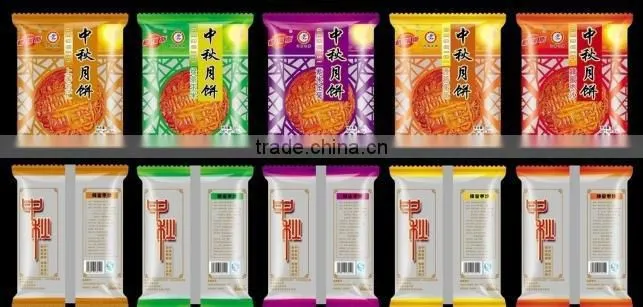

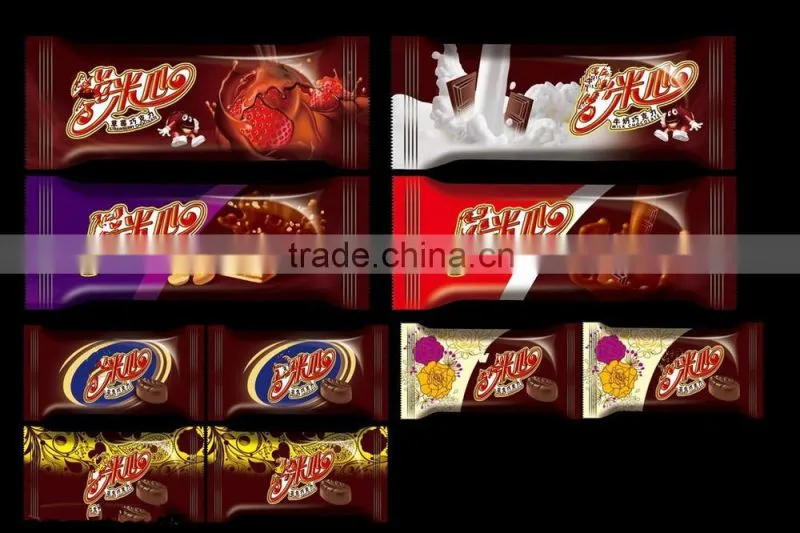

Package styles:
Certificted:
Why choose us:
• With more than 10 years expertise and experience.
• Embrace flexibility and professionalism.
• No lowest price but always value for money.
• We treat our staffs and suppliers as respectful partners.
• We keep stock of electronic components, touch displays, motors, etc. ready for immediate delivery.
• Provide customized services for special orders according to specifications.
Pillow and vertical packing machine details:
