automatic food tray wrap machine
1. Scope of application
Suitable to regular products like biscuit, bread, candy, medicine ,daily hotel article, hardware, case ,tray etc.
2. Function Description:
1.The key parts of the machines contact are made of SUS 304, meeting the food QS and medicine GMP requirements.
2. The operation and maintenance of the packing machine are convenient by intelligent parameter settings.
3. Intelligent control module makes temperature control more stable.
4. Controlled by dual frequency conversion, the cutting of bag length is following the length setting, saving time and film.
5. High sensitive electronic eye tracing system, after setting, the machine is no need to be adjusted by hand, the cutting position is accuracy, and the seal is firm and beautiful.
6. Temperature is controlled by PID intelligence independently and steadily which is suitable for various materials.
7. Counting automatically, the packaging production’s counting is accuracy.
8. Machine design and convey system is simple. The machine is convenient to maintain .
9. The machine can be equipped with gas charging device and production date code system according to client’s packaging requirements.
3.Technical Specifications:

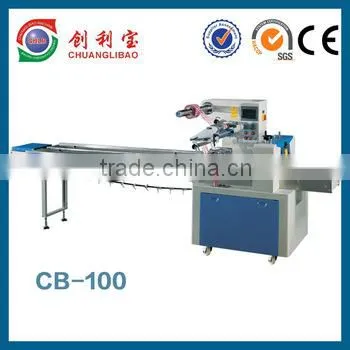

Model |
CB-100 |
Single knife |
Bag size: L (120-290) ×W (30-100) × H (3-35) mm |
|
Speed: 100 bags/min |
Double knife |
Bag size: L (60-145) × W (30-100)× H (3-35) mm |
|
Speed: 200 bags/min |
Thickness of film |
30-70 um |
Width of film |
≤220 mm |
Dimension of film roll |
outer diameter ≤300 mm inner diameter ≤75mm |
Power requirement |
220V, 50HZ, 2.75KW |
Machine size |
L 3900* W 850* H 1500 |
Machine Weight |
550KG |
Optional device |
printer, gas charging device, feeder, tidier |
4. Origin of each components
Touch screen: Siemens/Germany Switch series: Schneider/French
PLC controller: Siemens/Germany Module: Siemens/Germany
Inverter: Schneider/French pan Relay: Omron/Ja
Date printer: DS-1108/Shanghai Photo-sensor: SICK/Germany
5.Service:
1) Free consultation service before, during, and after sales;
2) Free project planning and design services;
3) Free debugging of equipment until everything is functional;
4) Free management of equipments' long distance shipping;
5) Free training of equipment maintenance and operating personally;
6) Free new production techniques and formulas;
7) Provide 1 year complete warrantee and lifetime maintenance service.
Customer service:
The company will work with all areas of business partners to provide automated data collection program planning users,
design, configuration, installation, implementation and upgrades.The company will ensure the successful implementation
of packaging machinery products provide comprehensive and specialized services.
Technical Support:
Service Department will be responsible for the user's service and maintenance support.Through the improvement and advanced techniques,
such as technical maintenance, user support centers, systematically ensure the timeliness of service, continuity and professionalism, and provide
quality packaging machinery.
6.Spare part with machine:
heater bar : 2pcs Hex driver : 1set
Solid-state relay : 1 pcs Adjustable wrench : 1pcs
Cutter : 2pcs Screwdriver : 2 pcs
7.photos:
simple photos about us
Certification
our honor
Packing detail:film + wooden case
Last Update Time:2013-12-23
