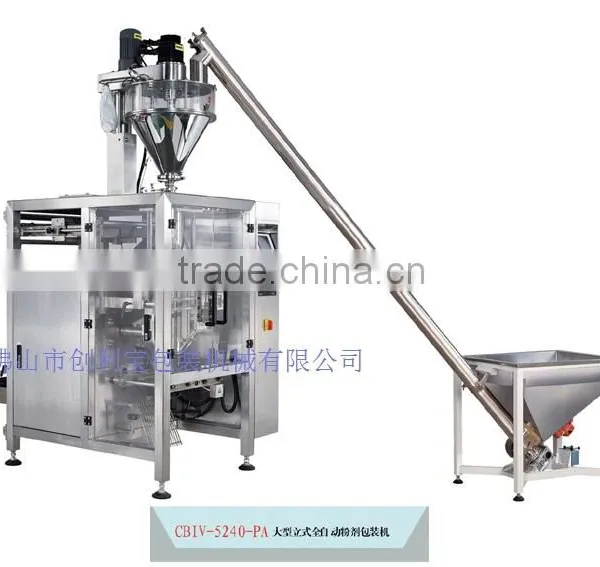

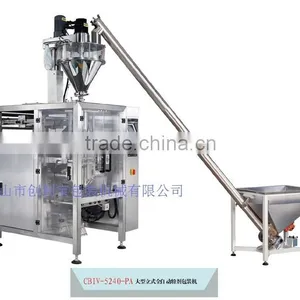

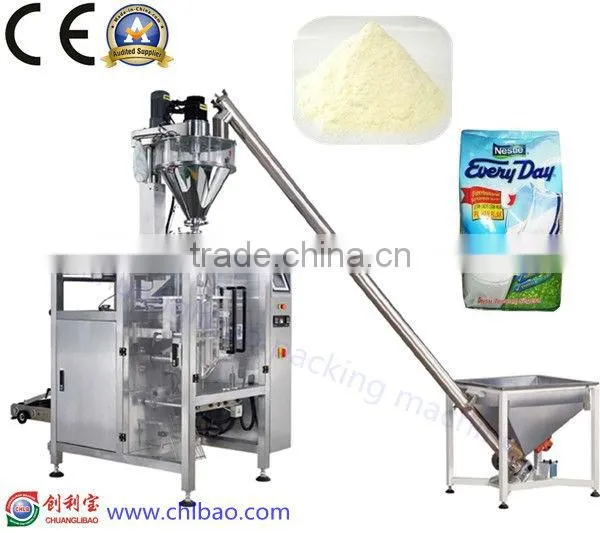

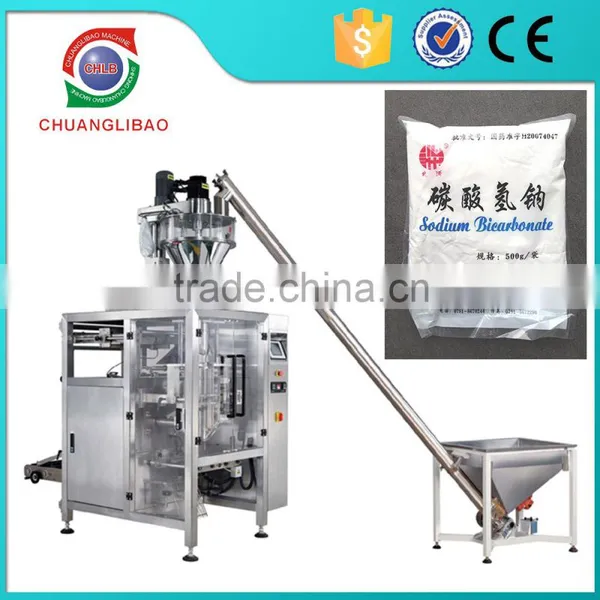

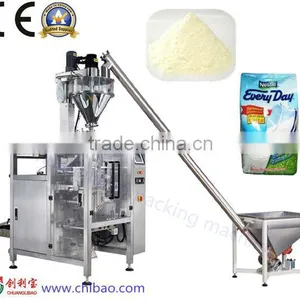

High Speed Aotomatic Detergent Washing Powder Filling Packing Machine
Scope of application:
Widely used for powder, slice, strip, powder such as salt, sugar, rice, beans, seeds, coffee powder,
chocolate powder.
Function characteristics:
- Packaging film can be used directly by whole roll instead of customized prefabricated bag which can simplify the packing process and reduce the cost.
- Easy to install packaging material because of the external film releasing mechanism.
- Drawing film smoothly by servo motor makes orientation more precise and size more nicety.
- Controlled by PLC micro computer through color touch screen, makes the machine more stable and reliable.
- The process of vertical sealing can adjust the deviation automatically which makes the labor intensity reduce by large margin.
- Finishing bag-making, measuring, filling, printing, cutting and punching in one operation.
- Formulating the parameters designed, can save many combinations of packing specifications, more convenient and fast for changing packing materials.
- Convenient to slit pocket because adopting easy tearing notch design.
Technical parameters:
| Model | CBQ1-4230 | CBQ1-5240 |
| Bag size ( L × W ) | (60-300) × (60-200)mm | (60-400) × (60-250)mm |
| Max width of roll film | 420mm | 520mm |
| Packing speed | 5-60bag/min | 5-50bag/min |
| Measuring range | 150-1200ml | 3000ml Max |
| Dimension | (L)1700mm ×(W)950mm ×(H)1900mm | / |
| Net weight of machine | 400kg | 510kg |
| Gas consumption | 0.3m3/min | 0.3m3/min |
| Air pressure | ≥0.65Mpa | ≥0.65Mpa |
| Power voltage | 220VAC/50HZ | 220VAC/50HZ |
| Power | 2KW | 2.5KW |
| Packing Material | OPP/CPP OPP/PE PET/PE PE | |
Origin of each components
Touch screen: Magic Switch series: Schneider/French
PLC controller: Siemens/Germany Module: Siemens/Germany
Servo motor: TECO/Taiwan Inverter: Schneider/French
Relay: Omron/Japan Date printer: Dingsheng/Shanghai
Solid phase: Schneider/French Photo-sensor: SICK/Germany
The equipment production process:
Turn on the power will temperature setting and constant temperature setting packaging machine parameters (bag making size and packaging weight) and the artificial feeding reservoir expect hopper vibration to improve transportation measures-material hoist conveying material combination and start electronic measurement and said to print production date, bag making, filling and sealing materials, packaging and inflatable cut off-packing products output process; (this equipment configuration for the double luck film agency: tension membrane resistance small, the film speed, etc.)
1. Put hopper
2. The shock
3. Automatic vertical packaging machine
4. Bull electronic combination says
5. Finished product conveyor
CHUANGLIBAO has been an professional manufacturer of packing machine since 1998. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
