Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > LMT5160GLQ 10 m 3 ASPHALT DISTRIBUTOR (Semi-automatic)

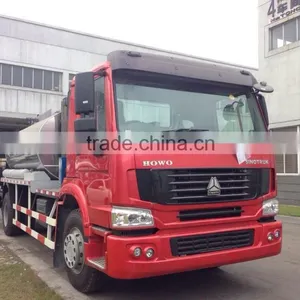

LMT5160GLQ 10 m 3 ASPHALT DISTRIBUTOR (Semi-automatic)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
LIONKIN
Model Number:
LMT5160GLQ
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LMT5162GLQ 10 m 3 ASPHALT DISTRIBUTOR (MultifunctionType)NegotiableMOQ: 1 Set -
LB600 Asphalt Mixing Plant (48tph)NegotiableMOQ: 1 Set
-
GLB3000 Asphalt Mixing Plant (240t/h)NegotiableMOQ: 1 Set
-
LMT5310TXF Slurry SealerNegotiableMOQ: 1 Set
-
KFM5144TYHRQ Road Maintenance TruckNegotiableMOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
LIONKIN
Model Number
LMT5160GLQ
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
A. Suitable media of the distribution truck: Emulsified asphalt, modified and emulsified asphalt, basic hot asphalt, SBS modifie
| MAIN TECHNICAL PARAMETER | ||||
| Model | LMT5160GLQ-1 | Engine Model | WD615.62 | |
| Chassis Model | ZZ1167M5011 | Displacement (L) | 9.726 | |
| Truck Type | flat head 4×2 rear drive | Max. Power (kw/r/min) | 196/2200 | |
| Dimension | 9660×2480×3350 | Max. Torque (N·m/r/min) | 1100/1400-1600 | |
| (L×W×H) mm | ||||
| Cab Passenger | 2 | Cleaning Diesel Tank Capacity (L) | 60 | |
| Vehicle kerb Mass (kg) | 11870 | Fuel Tank Capacity (L) | 145 | |
| Rated Load Mass (kg) | 4000 | Hydraulic Oil Tank Capacity (L) | 90 | |
| Max. Total Mass (kg) | 16000 | Gearbox Model | 8JS10013 | |
| Distribution of Axle Load (KG) | Front Axle (no load) | 5020 | ||
| Front Axle (full load) | 6500 | |||
| Rear Axle (no load) | 6850 | Asphalt Pump Model | QGB-450 | |
| Rear Axle (full load) | 9500 | Asphalt Pump Displacement (ml/r) | 1600 | |
| Wheelbase (mm) | 5000 | Asphalt Pump Rotating Speed (r/m) | 600 | |
| Tread (front/rear) mm | 2022/1830 | Power Take-off Model | 211/70 PQ1-3 | |
| Min. Ground Clearance (mm) | 248 | Burner Model | G20-474T1 | |
| Suspension (front/rear) mm | 1500/2980 | Hydraulic Pump Model | CBQ-F563AFP | |
| Approach/Departure Angle (°) | 34/12 | Hydraulic Motor Model | AM05-90-8H | |
| Ramp Angle (°) | 23 | Rated Pressure (Mpa) | 16 | |
| Max. Speed (km/h) | 90 | Heat Conducting Oil Pump Model | BRY40-25-160 | |
| Working Speed(km/h) | 6-15 | Heat Conducting Oil Model | Great Wall 32# | |
| Max. Gradeability (%) | >23 | Asphalt Tank Capacity (L) | 10000 | |
| Tyre Model | 11.00-20×16PR | Nozzle | 39 | |
| Tyre Pressure front/rear (kPa) | 630/630 | Spraybar Variable (m) | 2~6 | |
| Main Drive Ratio | 4.22 | Spraybar Value (kg/m2) | 0.5~3.0 | |
| Max. Braking Distance (m) | <10 | Emission Standard | GB17691-2001(Ⅱ) | |
| Min. Turning Circle Dia. (m) | <23.8 | GB3847-1999 | ||
| Oil Consumption (L/100km) | <26 | |||
| Parking Gradient (%) | >20 | |||
