Specifications
PSH mechanical car parking equipment :1.Less occupied area.
2.The design is flexible.
3.Multiple protection device.

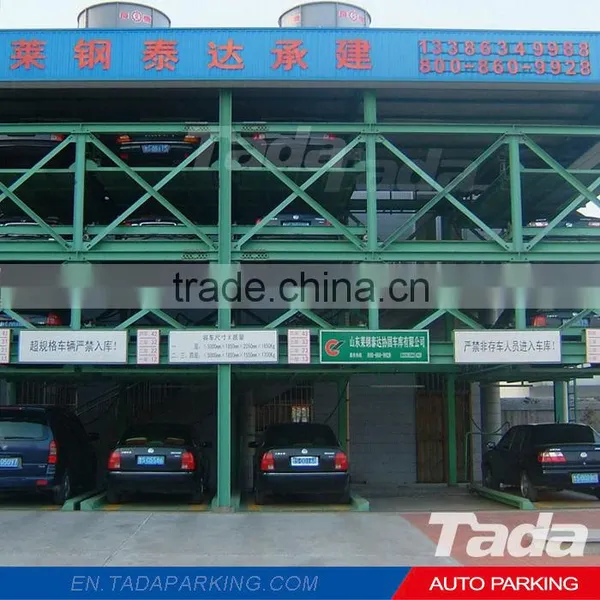

Four-layer PSH mechanical car parking equipment
1. Advantage and Application
(1)The equipment utilizes steel wire to lift, it can be designed into 3 layers to 6 layers.
(2)It has better utilization ratio of the space than the other common parking systems and more suitable for outdoors.
(3) Big span design and PLC controlling are good for environmental protection and energy-saving.
2. Layout
Each group of controlling of this parking system is designed into 3-car to 6-car, just depending on specific site conditions.
3.Working Principle
The entrance of this type is on the ground floor, the car boards on the top layer can only be lifted, the car boards on the bottom layer can only be slid, and car boards on the middle layers can be both lifted and sild. The middle layers had empty spaces, so that the car boards could be slid, and let the vehicle above down to the ground floor to be picked. The vehicles on the bottom layer can be driven out directly.
4.Safety Performance
4-point safety device on the ground and underground; independent car-resistant device, over-length, over-range and over-time detection, crossing section protection, with extra wire detection device.
5.Technical Parameters
Name |
Instruction |
|||
Layer |
Upper layer |
Middle layer |
Ground layer |
|
Vehicle Size |
Length |
5000(mm) |
5000(mm) |
5200(mm) |
Width |
1850(mm) |
1850(mm) |
1900(mm) |
|
Height |
1550(mm) |
1550(mm) |
2050(mm) |
|
Vehicle Weight |
1700(kg) |
1700(kg) |
2000(kg) |
|
Lifting |
Power |
2.2(kw) |
||
Speed |
5.5-6(m/min) |
|||
Sliding |
Power |
0.2(kw) |
||
Speed |
8(m/min) |
|||
Driven Mode |
Electric machine+Cycle chain+ Steel wire rope |
|||
Operation Mode |
Button, Automatic, Manual |
|||
Power Supply |
AC380V/220V50Hz; 3¢380V/220V50Hz |
|||
