Specifications

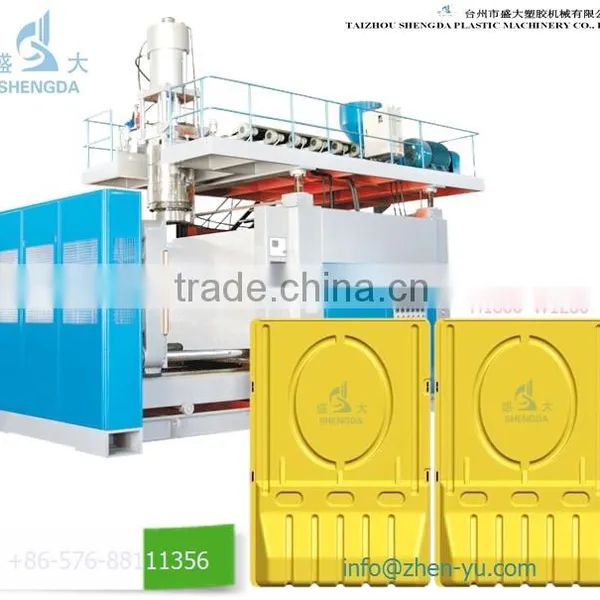

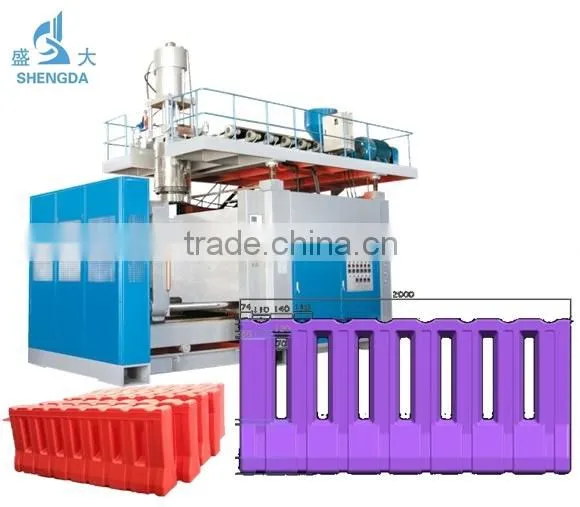

plastic road hoarding blow molding machinemax.end product:1400*2200mm
plastic road hoarding blow machine -- EMB MACHINE ZK-135B
Blow molding is a complex process, a blow molding machine doesn’t work alone by itself. Machine, mold,tooling, auxiliary equipment, materials, additives… all of them are interdependent in processing of converting raw material into desired products.
Though machine builder as us have sufficient project records and proven solutions to refer from, it is still highly suggested to each customer to ensure accuracy and least modifications.
I'm Ashley Huang, in sales position of Shengda for the 4th year. What I can do is not just giving you a machine model, but put our expert team in your position, service you with our technically know-how, resources of industrial in-depth, develop solutions especially for the specific scenario you are in.
Technical specifications:
specification |
unit |
zk-135B |
max container capacity |
L |
500 |
number of die heads |
set |
1 |
machine dimension(L*W*H) |
M |
11*3.2*6(+0.8) |
total weight |
ton |
32 |
clamping unit |
|
|
clamping force |
KN |
1800 |
clamping speed |
m/min |
10 |
platen opening stroke |
mm |
600-1600 |
platen size(W*H) |
mm |
2000*1700 |
mould thickness |
mm |
500-800 |
power |
|
|
max drive |
KW |
30 |
total power |
KW |
250 |
air pressure |
Mpa |
1 |
air consumption |
m3/min |
5 |
extruder unit |
|
|
screw diameter |
m |
135 |
screw L/D ratio |
L/D |
28:1 |
plasticizing capacity |
kg/hr |
320 |
number of heating zone |
zone |
5 |
extruder heating power |
KW |
30 |
extruder driving power |
KW |
63/160 |
accumulator head |
|
|
number of heating zone |
zone |
5 |
power of die heating |
KW |
6 |
max die-pin diameter |
mm |
750 |
accumulator volume |
KG |
40 |
Biz standpoint of my company is blow molding machine & mold, for more, we also plan and deliver all peripheral equipment for all production stages, both upstream and downstream of blow molding machine.
Contact us for more~
