1, Our Industry Advantage:
(1) PP/PE/PVC/PC/AS/PET/PET-G;
(2) Products of volume: 30ml-1000L;
(3) 1 years warranty;
(4) 20 years experience
(5) After-sales Service Provided: Engineers available to service machinery overseas
(6) All machine for Hydraulic system
(7) Many patent certificates
(8) More than 1000pcs different samples
(5)Screw diameter :50mm;55mm,65mm,70mm,80mm,90mm,100mm,120mm,130mm etc.
(6) L/D: 23:1; 25:1; 28:1, 30:1
(7) Sales to more than 30 countries
(8) From 1-3 layers

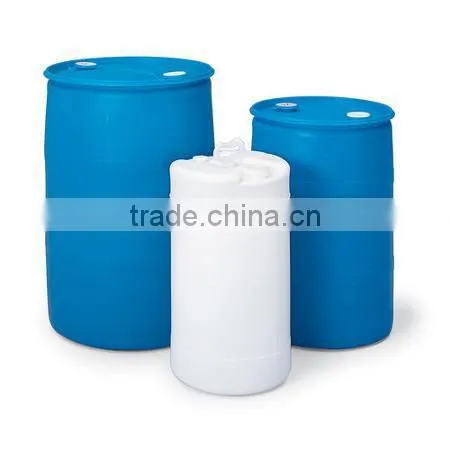

blue plastic barrel drums extrusion blow molding machine price in taizhou
2, YF-100A blue plastic barrel drums extrusion blow molding machine price-Hydraulic system For Max. 80L
3, Main characteristic
(1) Single process with single Die-head
(2) Max. 80L
(3) Hydraulic system
(4) Wide of products 550mm
(5) 220-380V; 3 phase; 50-60HZ (Custom Made)
(6) 100mm Diameter of screw
(7) 1 Year warranty
4, Technical specification

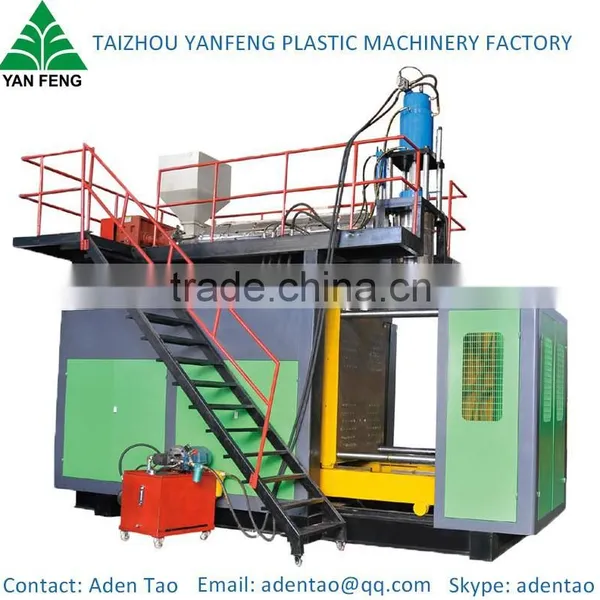

blue plastic barrel drums extrusion blow molding machine
Model |
YF-100A |
|
Suitable Materials |
PE,PP,PC,PVC,PS,ABS,EVA ,AS |
|
Output (Running free) |
Wide of products |
550mm |
Product Volume |
1 Cavity |
80L |
Die Head Amount |
Piece |
1 |
Work Station Amount |
Piece |
1 |
Extrusion Unit |
Screw Diameter |
100mm |
Screw L/D Ratio |
23:1 L/D |
|
Screw Speed |
80r/min |
|
Plasticizing Capacity |
160kg/h |
|
Number of Heating Zone on Screw |
4 |
|
Die Heat Unit |
Volume of Storage Jar |
10L |
Max. Die-pin Diameter |
400mm |
|
Number of Heating Zone |
4 |
|
Mould Unit |
1 Cavity |
1 Cavity |
Mould Board Space |
450~1200mm |
|
Clamping Force |
400KN |
|
Power Unit |
Electrical Source |
220~380V,3phase 50~60Hz |
Total Heating Power |
25KW |
|
Main Power |
22 KW |
|
Screw Motor Power |
30 KW |
|
Waterhead |
Cooling Tower |
|
Weight |
15T |
|
Dimension |
5300*2700*4000mm |
|
Air Supply Pressure |
0.6~0.8Mpa |
|
Auxiliary Equipments |
Low Pressure Air Compressor 1 Set (requisite) |
1.0m3 / 1.0MPa |
Crusher machine 1set |
65 |
|
Mixing machine 1set |
200kg |
|
5, Parts and Brand for your reference
Item |
Brand |
Country |
Oil Pump |
YUKEN |
Japan |
Control switch |
MITSUBISHI PLC |
Japan |
The contactor |
Schneider Electric |
France |
Reversing valve |
DUPLOMATIC |
Italy |
Proportioning valve |
SMC |
Japan |
oil valve |
YUKEN |
Japan |
Touch screen |
PROFACE |
Japan |
PLC |
MITSUBISHI |
Japan |
Inverter |
INVT |
Taiwan |
Temperature |
OMRON |
Japan |
Valve |
ATOS |
Italy |
6, Main part pictures
Gate of Factory
Sample Room
Meeting Room
Reception Room
Extrusion blow moulding machine
PET blow moulding machine
Samples
