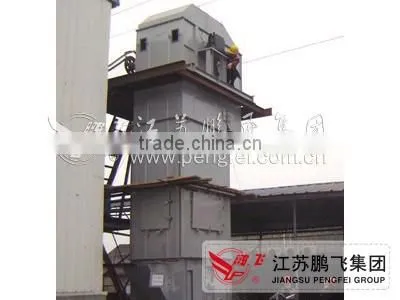

Help CenterHL Bucket Elevator
Related Products
The working principle of bucket elevator: the materials will be fed to hopper then lift to the top by belt or chain. And the hopper will turn over in the top which feed the material to receiving groove. The bucket elevator will be transmitted by belt which is installed on upper and bottom drive drum.
1. Low drive power, adopt flow type feeding and induction discharging and dense arrangement for hopper, there is no back and packing material, so the reactive power is less.
2. It has large lifting range, it can not only lift normal powder materials with small size and also lifting materials with high wearing feature. And it has good sealing and less pollution to the environment.
3. With advanced design principle and machining methods, which guarantee the reliability, and it can be operating for 20,000 hours.
4. The lifetime is long and flow feeding, no need to dig materials by hopper, so that there is no crush happed between materials. This machine was designed to guarantee less spilling while discharging, which can reduce mechanical wear.
| Model |
Capacity(t/h) |
Speed(r/min) |
Motor power(kw) | weight (kg) | |
| 10m | m | ||||
| HL160 | 15-8.0 | 1.25 | 3.0-11 | 2480 | 140 |
| HL250 | 21-11 | 1.25 | 3.0-15 | 3390 | 180 |
| HL300 | 28-16 | 1.25 | 5.5-18.5 | 3930 | 200 |
| HL400 | 47-30 | 1.25 | 7.5-22 | 4990 | 260 |
| HL315 | 59-35 | 1.4 | 4.0-11 | 3960 | 180 |
| HL400 | 94-58 | 1.4 | 7.5-18.5 | 4980 | 205 |
| HL500 | 118-73 | 1.4 | 11-22 | 5820 | 255 |
| HL630 | 145-90 | 1.4 | 15-30 | 6980 | 310 |
