UHMWPE Pipe could save your money and time in the dredging and mining projects:
Diameter ranging:
6'',8'',10'',12'',14'',16'',18'',20'',22'',24'',26'',28'',30'',32'',34'',36'',38'',40''
UHMWPE Piping Advantages:
Longer Life
With a wear resistance 4 to 7 greater than Q235 Steel or 10 times that of HDPE (PE100) pipes under the same operating conditions, UHMWPE Pipe will give you far superior life under most operating conditions.
Non-Scaling
Because of its very smooth surface and self-lubricating properties, UHMWPE Pipe has far superior anti-scaling properties to any other pipeline on the market today. A non-stick factor that leads to its strength in the marine industry, preventing barnacle formation.
Lower Maintenance Costs, Less Maintenance Time, Less Downtime, Less Loss of Production
The far superior collaboration of wear resistance and weight reduction (0.93 SG) means the time between pipe replacements and/or rotations can be increased whilst simultaneously reducing installation management constraints of lifting gear and excavation requirements.
Reduced Pumping Costs
Along with the benefits mentioned above, UHMWPE Pipes also offer significant cost savings through increased pumping efficiency. With a surface roughness of 0.00022mm UHMWPE Pipe is extremely smooth and has resultant properties superior to PTFE (Teflon). Quantifying by example UHMWPE has a friction coefficient of 0.05, compared to 0.28 for HDPE or 0.58 for Steel (ISO 8295).
This means less friction, less pressure loss and greatly reduced energy inputs to deliver the same result.
Chemical and Corrosion Resistance
With chemical resistance second only to PTFE (Teflon), UHMWPE pipe will offer superior life to other pipeline products in acidic or corrosive applications under 85 degrees C.
Lower Installation Costs
The strength of UHMWPE pipes can offer many savings in installation costs:
- High compressive strength means reduced size or eliminating excavations (greater than 1.5x that of HDPE)
- Combination of strength and flexibility (>250% tensile elongation) means concrete bases are not required on wetlands and difficult terrain
- High strength and flexibility provides greater protection against damage due to ground subsidence, earthquakes or other unexpected movement and loading of the pipeline
- Can be laid directly on the seabed
The UHMWPE pipes are continually extruded by special extruders and moulds. Here is the brief introduction of
UHMWPE pipe production:
1. The UHMWPE powder will be melted together with a small amount of paraffin, carbon black in high temperature
2. Different pipes with different diameter and wall thickness will need to make different moulds.
3. the length of the UHMWPE pipes could be cut according to customers requirements
4. The color of UHMWPE pipes is the original color of the raw material, and it is specially processed during production.
UHMWPE Pipe on the production line:

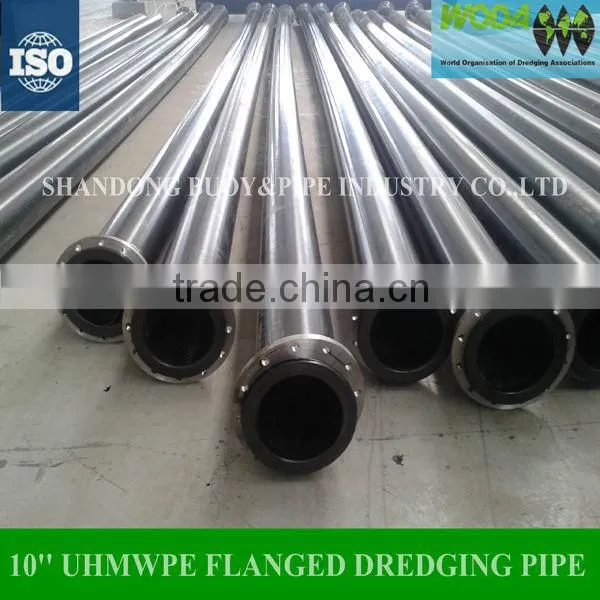

UHMWPE Flanged Pipe:
UHMWPE Pipe Projects:
Our Mission:
Completely specifications and high level service timely for you.
Larger production capability and shorter lead time for you.
Superior Quality and competitive price for you.
And OEM is also permitted for you.
Feel free to call ‘ 86-189 6356 5106 ’, our professional pipeline solution for you to solve any technical problems.
