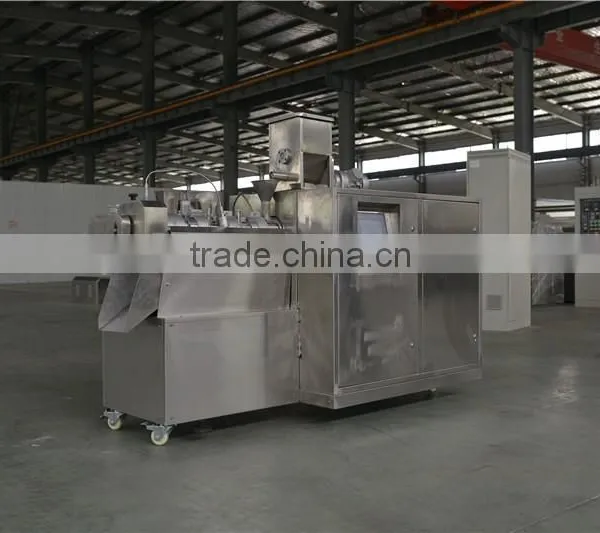

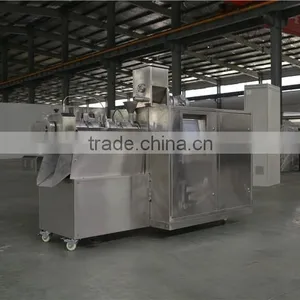

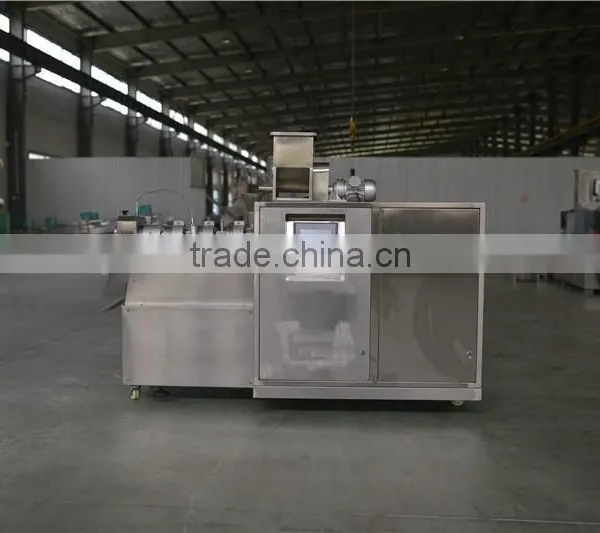

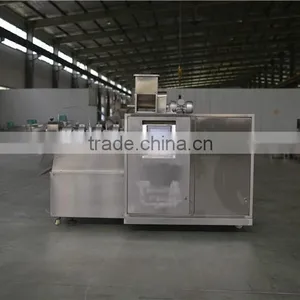

Help CenterNew Condition Lab Twin-screw Extruder
Related Products
-
Twin Screw Lab Extruder/laboratory Twin Screw Extruder MachineUS$ 5,000 - 8,000MOQ: 1 Set -
Saibainuo High Quality Twin Screw Extruder for LabUS$ 2,000 - 5,000MOQ: 1 Set
-
CE&competitive Price Twin Extruder LabUS$ 2,000 - 5,000MOQ: 1 Set
-
Ribbon-blender Mixer MachineNegotiableMOQ: 1 Set
-
Small Twin-screw Lab ExtruderUS$ 1,000 - 15,000MOQ: 1 Set
lab twin-screw extruder feature:
1.Three feed:For a special experiment in addition to the ingredients of various components will be added to the list, there are some to be added to the list sooner or later. At this time you can from the first, second, third mouth to feed and in order to control raw materials stay time in the tube. also Can use metering pump press liquid raw materials from the second and third Feed into it.
2.Two-way temperature control:Laboratory equipment should meet the requirements of different temperatures, Extrusion is a process generated heat, the heat sometimes less than the required calories, Sometimes the heat is greater than the necessary calories, and some segments need high temperature, some segments need low temperature, The drum machine is divided into four sections, the whole course with heating and cooling bidirectional control ,and ensure that achieved the requirements temperature.
In the mold also used two-way heating and cooling control, to control the Expanded in the export of raw materials , or just a maturation without puffing.
lab twin-screw extruder technical paremeters
Engine power |
5.5KW |
Second series L/D |
9.3 15 20.6 |
Pressure scope |
0-30MPa |
Engine speed-control |
Frequency speed-control |
Heating way |
Heating ring |
Pressure precision |
0.1MPa |
Screw diameter |
30 |
Cooling way |
Water |
Number of measuring pressure |
3 |
Screw central distance |
26mm |
Temperature scope |
20℃-300℃ |
Model cooling way |
Water |
Speed range |
0-500rpm |
Temperature precision |
±1.0℃ |
Filling intake |
3 |
Screw mode |
Building block-combined type |
Number of measuring temperature point |
4 |
Water intake |
3 |
First series L/D |
11.6 12.7 23 |
Output |
10-25KG/H |
Percent of water |
6%-7% |

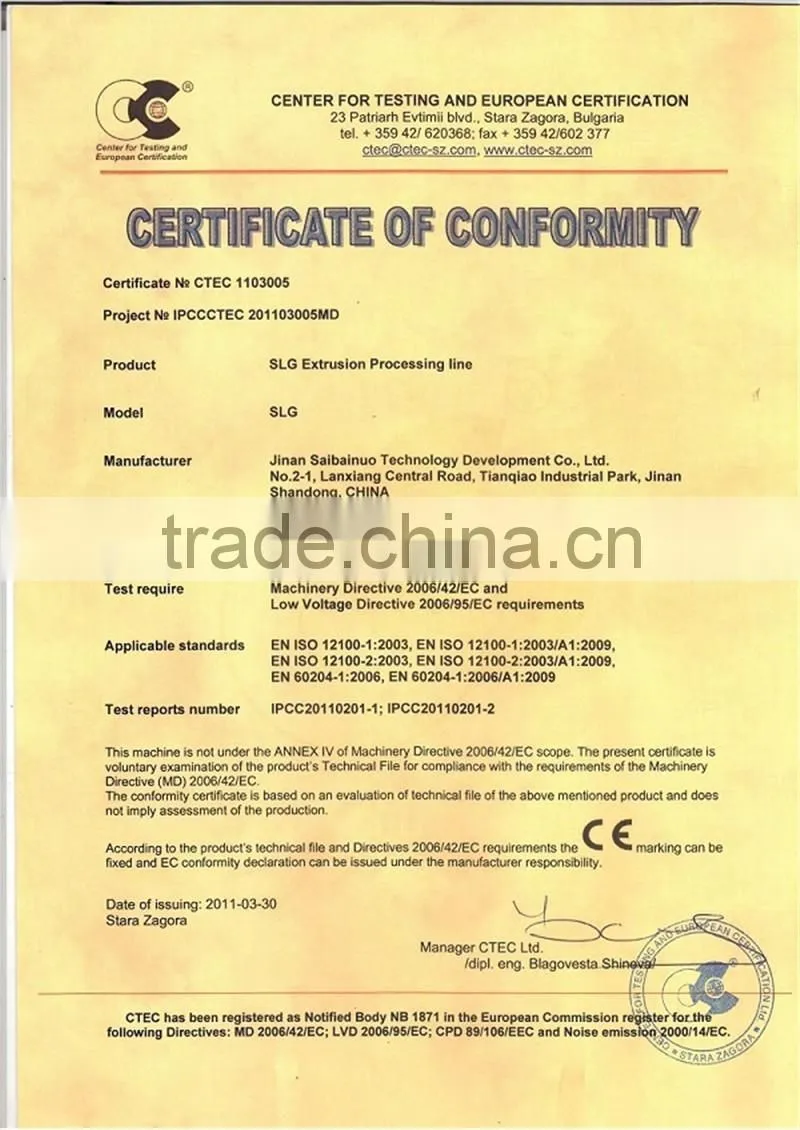

lab twin-screw extruder certifications
lab twin-screw extruder
Jinan Saibainuo Technology Development Co.,Ltd.
We have got several certificates including CE and we are 8 Years Alibaba Golden Supplier.Saibainuo has a comprehensive manufacturing program offering equipment and systems to customers in extruded snack food processing machinery and allied industries. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to meet the requirements of customers.
Factory standing area:30000 square meters
Workshop standing area:20000 square meters
Office area:4 floor with 600 square meters.
1. |
Potato pellet chips making machine
|
| 2. | Textured soya protein making machine
|
| 3. | Breakfast cereals Corn flakes making machine
|
| 4. | Nutritional powder making machine
|
| 5. | Core-filling snacks making machine
|
| 6. | Bread crumbs making machine
|
| 7. | Artificial rice making machine
|
| 8. | Fish feed making machine
|
| 9. | Pet animal food making machine
|
| 10. | Pet chews treats making machine
|
| 11. | Potato chips making machine |
| 12. | Modified starch making machine
|
Thanks for your attention.
