UHMWPE Resin Injection Molded

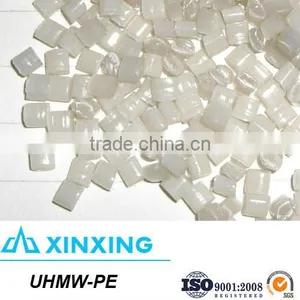

UHMWPE Resin Injection Molded thumbnail-1
UHMWPE Resin Injection Molded photo-1
US$ 2 - 3 MOQ: 100 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
XINXING
Model Number:
XH-801, XH-802, XH-803, XH-804, XH-805
Contact Supplier Request Quote Chat Now
Jiujiang Xinxing Fiberglass Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Jiujiang etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Brand Name XINXING
Model Number XH-801, XH-802, XH-803, XH-804, XH-805

Specifications

1.Anti-friction,anti-impact,anti-chemicals,anti-corrosion,self-lubricating
2.Customized grade

Description of UHMWPE resin
Ultra-high molecular weight polyethylene (UHMWPE) is thermoplastic engineering plastics. It combines the excellent properties of all plastics, like shock resistance, abrasion resistance, anti-corrosion, self-lubricating, antistatic, absorb of shock power, etc. It is recognized as "amazing engineering plastics".
Industry Application
Machinery for food, leather and packing industry Star wheel,worm,guide rail,gear wheel,slider,baffle plate and meat processing plant face  plates,impact plate, etc.
Construction Machinery Bulldozer shovel lining,excavator shovel lining,dump truck body lining
Paper-making Machinery Case sealing,wrist guide roller, scraper faucet,wiper panel,suction chamber cover, guide plate hydrofoil, etc.
Textile machinery Absorber panel coupler, picker stick
Chemical machinery Valve, gasket, filling, gear wheel, bolt, nozzle, axle, sleeve transmission gear, metal screen backing,pipe, flange, blender fanprotector and lining of machinery tools, etc
General machinery Impeler pulley,bush,axle sleeve spacer,sealing spacer , slide guide plate tug boat
Mine machinery Ball mill lining, flotation machine impeller, cover plate,cutting machine lining,filter press plate slide way
Sports products Slider, snowmobile, skating rink pavement, protective frame, guard, bowling alleys, etc.
Automotive, shipping and ceramic industry Driving device, take-up housing, fixed plate, guide rail for automotive, cabin linings, pier preventer plate, rolling head, filtering plate, whell and carriage for ceramic industry.
Features

Excellent abrasion resistance

Excellent impact strength

Superior chemical resistance

Low friction coefficient

Water repellent highly resistance to hydrolysis

Biologically inert

Excellent dielectric & insulting properties

Stress crack resistant

Non-toxic

Unique resistance to low temperature
Property and grade of UHMWPE powder
Property Unit XH-802 XH-803 XH-804 XH-805
Molecular weight (mil/mol) 2.5±0.5 3.5±0.5 4.5±0.5 5.5±0.5
Density g/cm3 0.93-0.95 0.93-0.95 0.93-0.95 0.93-0.95
Volatile Content< (%) 0.1 0.1 0.1 0.1
Grain Size <40 mesh 95 95 95 95
Apparent density≥ g/cm3 0.45 0.45 0.45 0.45
Deflection temperature≥ (°C) 80 80 80 80
Tensile Elongation at Break≥ (%) 350 300 250 250
Tensile strength≥ (Mpa) 35 35 30 30
Impact Strength Izod KJ/m2 120 100 70 70
Packing of UHMWPE powder
  1. Packing Material: Bag
  2. Unit Net Weight: 25kg
  3. Container quantity: 15 MT
Payment
  1. T/T
  2. L/C
Certification and test of UHMWPE powder
  1. ISO9001:2008
  2. RoHS
  3. PAEs
Characters Compare
UHMWPE resin injection molded

Related product
UHMWPE resin injection molded

Our serviceBuyer Guidelines
We provide UHMWPE products and raw materials on above grades and properties, accept customized size.
