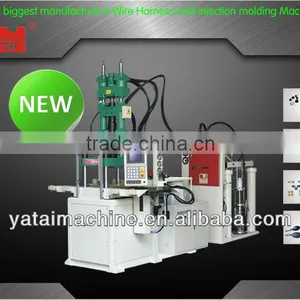

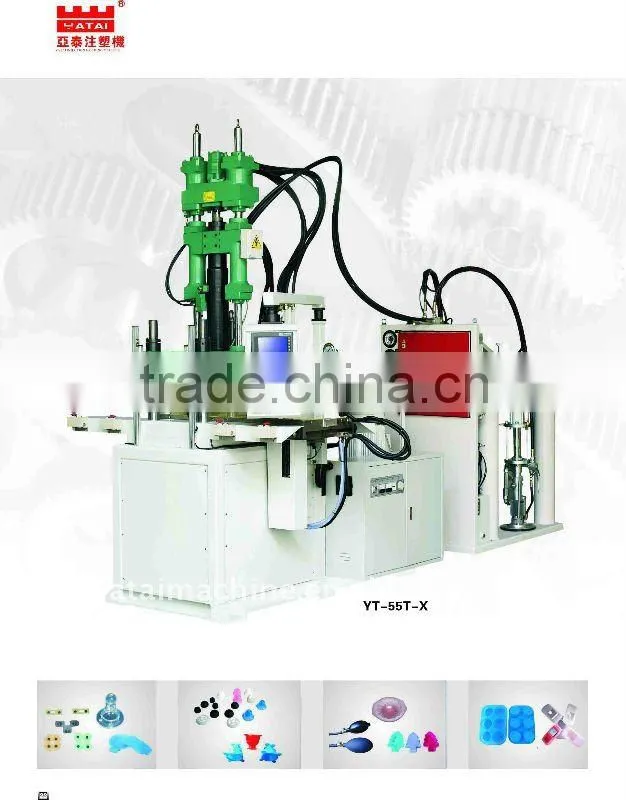

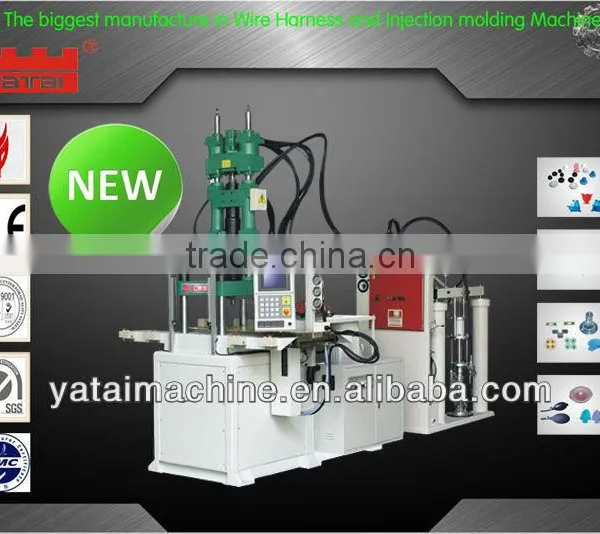

2013 LSR Injection Molding Machine
US$ 4,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical Injection Molding MachineNegotiableMOQ: 1 Set -
2013 Vertical Injection Molding MachineUS$ 5,000 - 800,000MOQ: 1 Set
-
2013 Vertical Injection Molding MachineUS$ 4,000 - 2,000,000MOQ: 1 Set
-
2013 Vertical Injection Molding MachineUS$ 1,500 - 80,000MOQ: 1 Set
-
BMC Injection Molding MachineUS$ 1,600 - 65,000MOQ: 1 Set
Condition
New
Type
Preform Injection
Style
Vertical
Brand Name
YATAI
Model Number
YT-V55T-LSR
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
134.6cm3
Injection Rate
0-180
Clamping Force
55
Opening Stroke
200
Power(W)
7.5KW (motor)
Certification
CE
After-sales Service Provided
Overseas service center available
Specifications
1.High efficiency LSR2.Most famous component parts
3Vertical injection molding machine
4.Bady nipple ,silica gel .
| YT-V55T-X | 1 | |
| Injection Unit | Clamping force (Tf ) | 55 |
| Screw Diameter (mm) | 35 | |
| Injection Volume (cm3) | 134.6 | |
| Injection Pressure (kg/cm2) | 1260 | |
| Screw Speed (RPM) | 0-180 | |
| Clamping Unit | Min.Mould Thickness (mm) | 260 |
| Max Mould Thickness | 400 | |
| Ejection Force (Tf) | 2.75 | |
| Ejection Stroke (mm) | 125 |
|
| Others | Motor Power (kw) | 7.5 |
| Dimenshion(LxWxH) (m) | 1.88x1.52x2.96 | |
| Machine Weight (kg) | 2300 | |
Proportional valve |
YUKEN OR HNC |
|
| Hydraulic Oil pump | YUKEN OR HNC |
1.High efficiency.
2.Most famous component parts.
3Vertical plastic injection molding machine.
4. Bady nipple ,silica gel .
