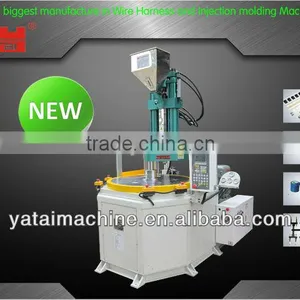

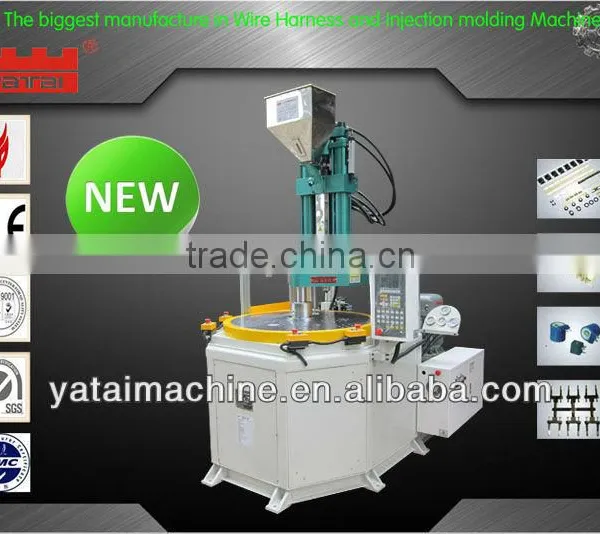

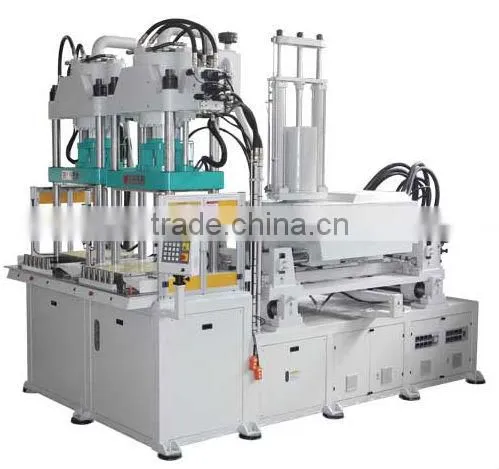

200T Good Vertical Injection Rotary Table Molding Machine

Name: 200T Good Vertical Injection Rotary Table Molding Machine
Brand: Qianke
SKU: 111078149

US$ 1,500 - 80,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Preform Injection

Style:

Vertical

Zhongshan Yatai Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Preform Injection

Style Vertical

Brand Name Qianke

Model Number V200R2

Place of Origin Guangdong, China

Plastic Type Thermoplastic

Automatic Yes

Injection Weight 530-858g

Injection Rate 90(110)mm/s

Clamping Force 200tf, 30-500 Ton

Opening Stroke 350mm

Certification CE

After-sales Service Provided Overseas service center available

Specifications

1.Clamping force 35-500tons
2.Vertical clamping,Vertical injection,easy to insert
3.Famous brand in each parts.
4.Yuken,Omron

1,Specifications

Unit				V200R2
Injection Unit	Screw Diameter		mm	55	50	70
	Theoretical Injection Volume		cm3	570	678	923
	Injection Weight(PS)		g(oz)	530(18.6)	630(22.2)	858(30.2)
	Max.Injection Pressure		Mpa(kgf/cm2)	235(2406)	198(2022)	146(1486)
	Injection Rate		cm3/s	214	254	346
	Injection Speed		mm/s	90(110)
	Screw Speed Rotation		r.p.m	0-220
	Nozzle Out From Platens		mm	≥45
Clamping Unit	Clamping Force		KN(tf)	1960(200)
	Clamping Stroke		mm	350
	Min.Mold Thickness		mm	350(450)
	Max.Opening		mm	700(800)
	Distance Between Tie Bars		mm	----
	Max.Mould Size		mm	590*590
	Platen/Slide Size		mm	1590
	Ejector Distance		mm	150
	Ejector Force		KN(tf)	45(4.6)
Others	System Pressure		Mpa(kgf/cm2)	13.7(140)
	Oil Tank Capacity		L	920
	Electric Power		KW(HP)	37.5(50_
	Heater Power		KW	20.2
	Machine Dimensions	L*W	mm	3176*2465
		H	mm	4205(5295)
	Machine Weight		tf	14
