Help CenterMicro DC Linear Vibration Motor With Coined Structure and Long Life for Industrial Equipment
Related Products
-
Mini DC Geared Motor With High Efficiency and Micro Structure for Robots ,gearbox and Household AppliancesUS$ 0.1 - 100MOQ: 500 Units -
High Performance Outrunner DC Brushless Motor for RC Airplane ,UAV and Aircraft-chaoliUS$ 7.9 - 8.85MOQ: 500 Units
-
Long Life and High Torque Carbon Brushed DC Motor for Medical Apparatus,printer and Intelligent HobbyUS$ 0.1 - 100MOQ: 500 Units
-
Vibrating and High Speed dc Coreless Motor for UAV,electric Toothbrush,and HelicopterUS$ 0.4 - 10MOQ: 500 Units
-
China Branded Micro DC Motor With High Quality and Reasonable PriceUS$ 0.1 - 100MOQ: 500 Units
MOTOR SIZE: Diameter 8mm,height 3.4mm
Special features/structure:
Motor type: Flat vibration DC motor
Motor housing (D*F*L): Φ8*3.4mm
Housing material: SECD-O
Shaft (diameter): 0.8mm SUS304 steel (nickel coating)
Way of commutation: Precious metal-brush
Structure: Eccentric wheel vibrating type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight: 1.2g(approx)
Options:
Wire diameter and turn number
Key parameters/performance
Rated voltage: 3.0V DC
Terminal resistance:
1)Single phase state:(30±10%)Ω
2)Dual phase state:(60±15%)Ω
Mechanical Noise:≤50dBA
Rated load:
Speed: 12000+/-2500 rpm
Current: 70+/-20% mA
At stall:
Current: 140mA (maximum)
Starting voltage: 2.3VDC(maximum)

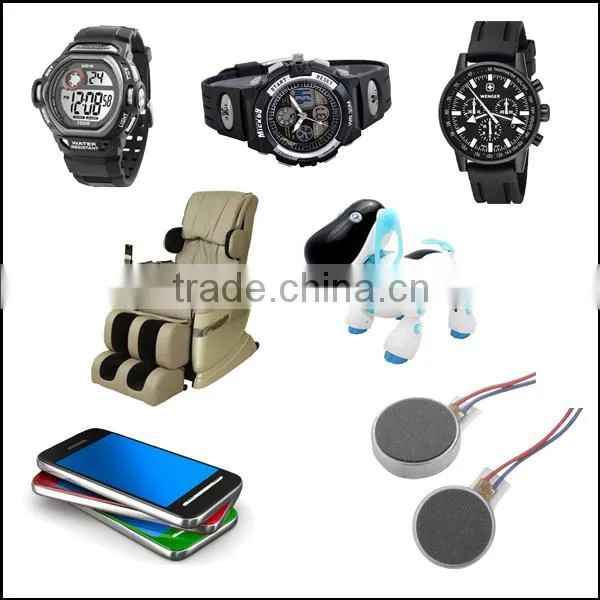

This product is widely used in: Mobile phone vibrator, vibrating massager, high-grade nursing instrument, electronic watch, quartz watch, intelligent models.
Provide high quality, Bring honorable value.
2.Our products
Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
Our advantages:
.Specialized manufacture
. Complete variety of product
.Volume production ability
.Reasonable pricing with high quality
.Short leading time, customized service
Please send us inquiries table including specifications
for the performance and structure requirements .
