Dairy Fermenter With Jacket for Beer ,wine ,fruit Juice

Dairy Fermenter With Jacket for Beer ,wine ,fruit Juice thumbnail-1
Dairy Fermenter With Jacket for Beer ,wine ,fruit Juice thumbnail-2
Dairy Fermenter With Jacket for Beer ,wine ,fruit Juice thumbnail-3
Dairy Fermenter With Jacket for Beer ,wine ,fruit Juice photo-1
Dairy Fermenter With Jacket for Beer ,wine ,fruit Juice photo-2
Dairy Fermenter With Jacket for Beer ,wine ,fruit Juice photo-3
US$ 150 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
thrive
Contact Supplier Request Quote Chat Now
Zhengzhou Thrive Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao tianjin shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name thrive
Model Number 300L
Usage Milk
Voltage 220/380V
Power(W) 20kw
Weight 150kg
Dimension(L*W*H) 1240*1240*1900mm
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description
Dairy Fermenter with jacket for beer,wine,fruit juice





Descriptions of Dairy Fermenter with jacket for beer ,wine ,fruit juice





 Dairy Fermenter with jacket for beer ,wine ,fruit juice







Dairy Fermenter with jacket for beer ,wine ,fruit juice





Dairy Fermenter with jacket for beer ,wine ,fruit juice










A:  Main parts of Dairy Fermenter with jacket for beer ,wine ,fruit juice





1,Tank:The  dairy fermenter with jact for beer,wine and fruit juice  is mainly used to cultivate a variety of fermentation of various bacteria, sealing is good (to prevent the bacterial contamination)



2,In the  dairy fermenter with jact for beer,wine and fruit juice there is a stirring slurry, which is used for the stirring of the fermentation process.



3,There is a sparger in the bottom of  the dairy fermenter the air or oxygen needed for the growth of the bacteria.



4,There is a control sensor in the top of the dairy fermenter, most commonly used is  pH electrode and DO electrode. The sensor is used to monitor the changes in the DO and pH of the fermentation broth and to display and control the fermentation conditions.





B  :Usage of Dairy Fermenter with jacket for beer ,wine ,fruit juice



1,The dairy fermenter is widely used in dairy products, beverage, biological engineering, pharmaceutical, fine chemicals and other  industries .



2,The dairy fermenter  is equipped with a sandwich, insulation layer, can be heated, cooling, heat preservation.









C :Classification of Dairy Fermenter with  jacket for beer ,wine ,fruit juice




1,According to the equipment of the daiyr fermenter with jacket for beer ,wine and fruit juice ,It can be divided into the mechanical stirring, ventilation, and the non - mechanical stirred tank.



2,According to the scope of use, the dairy fermenter can be divided into laboratory small and medium fermentation tank, the pilot production of the fermentation tank, large-scale fermentation tank

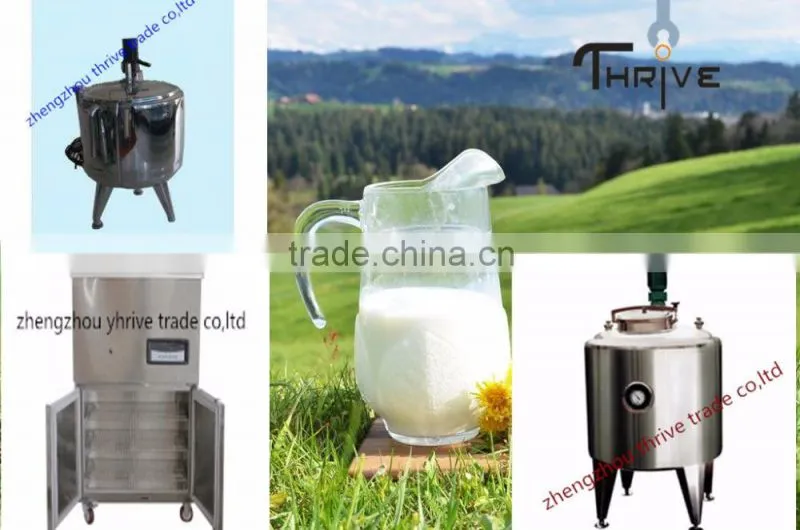

 Pictures show about Our factory and production process of Dairy Fermenter with  jacket for beer ,wine ,fruit juice





Dairy Fermenter with jacket for beer ,wine ,fruit juice





Dairy Fermenter with jacket for beer ,wine ,fruit juice



Dairy Fermenter with jacket for beer ,wine ,fruit juice







Dairy Fermenter with jacket for beer ,wine ,fruit juice








                           Dairy Fermenter with jacket for beer ,wine ,fruit juice                  Dairy Fermenter with jacket for beer ,wine ,fruit juice





Dairy Fermenter with jacket for beer ,wine ,fruit juice





Dairy Fermenter with jacket for beer ,wine ,fruit juice











Features of Dairy Fermenter with  jacket for beer ,wine ,fruit juice



1,The dairy fermenter with jacket for beer,wine and fruit juice is equipped with a sandwich, insulation layer, can be heated, cooling, heat preservation.



2,The dairy fermenter and the filling head (or conical) were treated with spinning R angle processing, on the inner wall of the tank through mirror polishing treatment, no dead angle,



3,Fully enclosed design  of the dairy fermenter ensure material is always a pollution-free mixing, fermentation,



4,The dairy fermenter is equipped with air breathing holes, CIP cleaning nozzles and manhole device.,



5, The dairy fermenter with jacket for beer,wine and fruit juice can be online CIP cleaning, SIP sterilization (121 degrees C/0.1MPa).



6, In accordance with the requirements of the health level of the design of the dairy fermenter the structure design is very user-friendly, easy to operate. Stable transmission, low noise.



7,Suitable diameter ratio design, according to the need to customize the mixing device, energy saving, mixing and fermentation effect is good,  corrosion resistance, strong productivity, easy cleaning and operation



8,Inside the dairy fermenter surface is a mirror polishing treatment (roughness Ra≤0.4µ m).

The import and orifice,  mirror, into the hole  process hole and the inner tank welding place were the stretch flanging process arc transition, smooth and easy to clean no dead angle, ensure the reliability and stability of the production process, comply with the "GMP" and other regulatory requirements.



9, Materials of the dairy fermenter with jacket for beer ,wine and fruit juice are imported 316L, SUS304 composition.







Specifications of Dairy Fermenter with  jacket for beer ,wine ,fruit juice





Basic and main technical data of dairy fermenter with  jacket for beer ,wine ,fruit juice



 Basic data:                      Model : 300L

                                         Effective volume:200L-10000L

                                         Processing customization :yes

                                         Scope of application: Beverage shop equipment

                                         installation dimension : 1140*1140*1900mm

                                         Power:20KW

                                         Raw material : 304 Stainless Steel

                                         Weight : 150Kg

                                         Condition : new

                                         Voltage:220/380v







 Technical data :



Model

electric power



mounting dimensions

(mm)

Weight

(kg)

Size

(mm)

Agitator speed

heating area(m2 )

Stirring power

(KW)

Operating pressure

(mpa)

300L

20

1140-1140-1900

150

Φ800*600*2

36r/min

1.6

0.55

0.09

400L

20

1240-1240-1900

180

Φ900*600*2

36r/min

1.6

0.55

0.09

500L

20

1400-1400-1950

220

Φ1000*650*3

36r/min

2.5

0.55

0.09

600L

20

1400-1400-2050

250

Φ1000*750*3

36r/min

2.5

0.55

0.09

700L

24

1400-1400-2200

280

Φ1000*900*3

36r/min

2.5

0.75

0.09

800L

24

1500-1500-2150

320

Φ1100*850*3

36r/min

4.0

0.75

0.09

900L

24

1500-1500-2250

350

Φ1100*950*3

36r/min

4.5

0.75

0.09

1000L

24

1600-1600-2200

380

Φ1200*900*3

36r/min

4.5

0.75

0.09















If you are interested in the fermenter of various milk, juice and beer and want to get further information,pleas feel free to contact me ,I will reply with you in time.

Contact person:Alisa

Tel:0086-0371-56095598

Skype: thrive003

QQ: 514938354







Packaging & Shipping



Packing : The dairy fermenter is putted in strong iron sheet case or wooden case.



Delivery time : we will send  dairy fermenter  within 3-15 working days after receiving the down payment.



 Dairy Fermenter with jacket for beer ,wine ,fruit juice



 Dairy Fermenter with jacket for beer ,wine ,fruit juice





  Dairy Fermenter with jacket for beer ,wine ,fruit juice
