pulverizer for sale
PROCESS

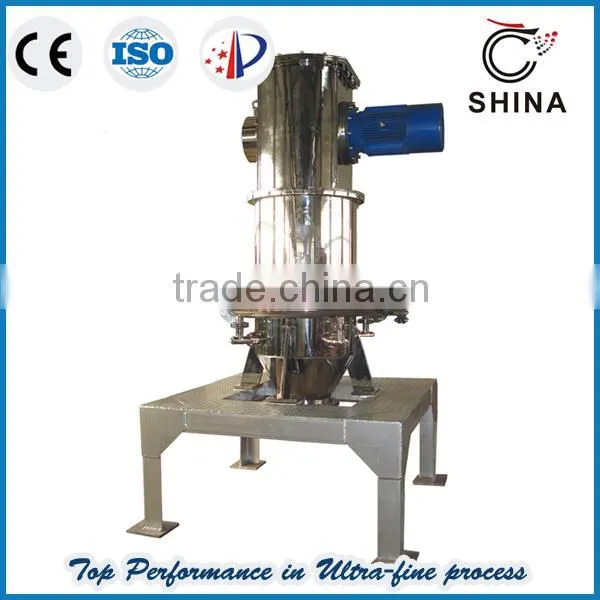

Clsssifier mill consisting of fluid bed opposed jet mill with integrated turbo classifier(s) for highest applications with best top cut and steep particle size distribution.
There are a variation of application as mainly:grinding,classifying,homogenisation,selective operation,drying,surface treatment,and many others.
The fluid bed opposed jet mill can be combined with single wheel classifiers or multi-wheel classifier.
FEATURES
- Fluidbed opposed jet principle
- Integrated turbo classifier as single wheel or multi-wheel
- Products free of oversize
- Steep particle size distribution
- Multifunction
- Special nozzle configuration
- Loss in weight system
- Laboratory system available
- Contamination free processing
- Cyrogen,inert,hot gas solutions
Abrasive products,sticky products,mineral fillers, ceramic fillers,food,chemical products and other powders.
|
Type Parameters |
QWJ03 |
QWJ06 |
QWJ10 |
QWJ20 |
QWJ40 |
QWJ60 |
QWJ80 |
QWJ120 |
QWJ160 |
QWJ240 |
QWJ320 |
|
Product Fineness D97: μm |
3~100 |
3~100 |
3~100 |
3~100 |
3~100 |
3~100 |
3~100 |
3~100 |
3~100 |
3~100 |
5~100 |
|
Grinding air m3/min |
3 |
6 |
10 |
20 |
40 |
60 |
80 |
120 |
160 |
240 |
320 |
|
Air Pressure Mpa |
0.7~1.0 |
0.7~1.0 |
0.7~1.0 |
0.7~1.0 |
0.7~1.0 |
0.7~1.0 |
0.7~1.0 |
0.7~1.0 |
0.7~1.0 |
0.7~1.0 |
0.7~1.0 |
|
Motor output kw |
3 |
6 |
4 |
5.5/7.5 |
15 |
18.5 |
5.5×4/22 |
15×3 |
15×4 |
15×6 |
30×3 |
Note: 1. Capacity depends on material properties and final product fineness.
2. Product fineness is adjustable.
Quality guarantee is for 18 months. During 18 months, if there is any problem or destroy (non-artificial damage), we will repair or change for free. After 18 months, if there is any problem, we will still supply good service, and we will charge cost if parts needed to be changed.
- Flow sheet of the process
- Electrical interlocking sequence
- Dimension drawings for supplied equipment
- Operation manuals
- Technical information and specification for local supply
- Engineering drawings for local supplies
- Technology data and drawings for installation and commissioning
- Spare parts list
