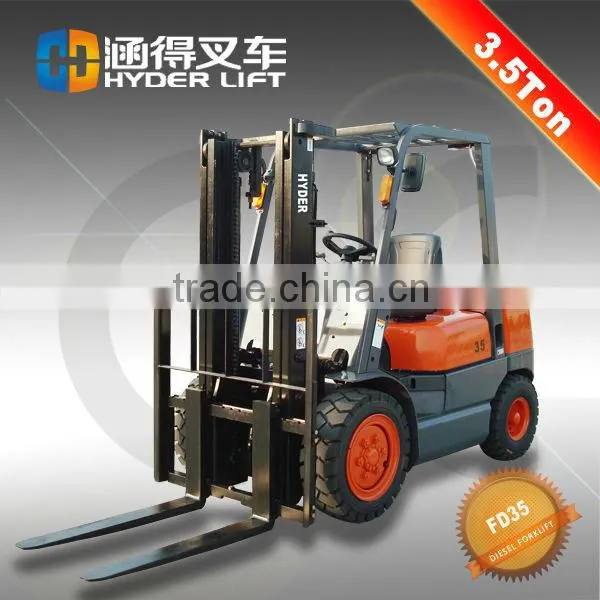

2t to 3.5t HYDER forklift truck
Product Advantages:
1.High efficient Xinchai/Dachai/ISUZU/Yanmar engine
2.Reasonable structure layout, simple maintenance
3.The advanced liquid crystal display instrument
4.Wide-view mast design improves the productivity and safety
5.The short turning radius and load sensing hydraulic power steering system
6.No harmful gas released and is nice for the environment protection and energy saving
7.Scientific ergonomic designs ensure the comfort of driving,advanced technique with good after-sale service
Product Parameter:
| Manufacturer | HYDER | ||
| Model | Power shift T/M | FD35T | |
| Manual shift T/M | FD35C | ||
| Load capacity | kg | 3500 | |
| Load center | mm | 500 | |
| Power unit | Diesel/gasoline/electric | Diesel | |
| Operator type | Driver/seat | ||
| Tire type | Front/rear | Pneumatic | |
| Wheel | Front/rear | 2/2 | |
| Max. lifting height | mm | 3000 | |
| Free lift | mm | 150 | |
| Fork size | L*W*T | mm | 1070*125*50 |
| Tilt range | Mast forward/backward | deg | 6/12 |
| Overall length(without fork) | mm | 2720 | |
| Total width | mm | 1285 | |
| Mast height (fork lowering) | mm | 2075 | |
| Overall height fork raised | With backrest | mm | 4250 |
| Height to head guard | mm | 2140 | |
| Turning raduis(outside) | mm | 2460 | |
| Min. right angle stacking aisle width | without load length&clearence | mm | 2940 |
| Speed | Max Travelling full/no load | km/h | 18/19.5 |
| Lifting full/no load | mm/s | 450/500 | |
| Lowering full/no load | mm/s | 450/420 | |
| Max.drawbar pull | Power shift T/M full/no load | kg | 2100/1000 |
| Manual shift T/M full/no load | kg | 2100/1000 | |
| Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/20 |
| Manual shift T/M full/no load | % | 18/20 | |
| Truck weight | kg | 4690 | |
| Tires | Number | front/rear | 2/2 |
| Model | front axle | 28x9-15-12PR | |
| rear axle | 6.50-10-10PR | ||
| Wheelbase | mm | 1700 | |
| Ground clearence | At lowest point(mast) | mm | 120 |
| Frame | mm | 135 | |
| Brake | Service brake | Hydraulic-foot pedal | |
| Parking brake | Mechanical-hand lever | ||
| Battery | Voltage/capacity | V/AH | 12/80 |
| Engine | Model | ISUZU 4JG2 | |
| Rated power | PS(kw/rpm) | 61/2450(44.8/2450) | |
| Rated torque | kg-m max.(N.m) | 19/1800(186/1800) | |
| Number of cylinders | 4 | ||
| Emission | L | 3.059 | |
| Fuel tank capacity | L | 70 | |
| Transmission | Speed forward/backward | Power shift T/M | 1-1 power shift T/M |
| Manual shift T/M | 2-2 power shift T/M | ||
| Operating pressure | Hydraulic system pressure | kg/cm² | 180 |
Product Picture:
Detail View:
Product Features:
Attachment:
Our Factory:
Options:
As a professional manufacturer of forklift, we also can offer you customized service,
the following items are optional:
Tires: Pneumatic standard and Solid
Color: Yellow,red,orange and white for your options
Engine:Xinchai/Dachai/ISUZU/Yanmar engine optional
Mast:2 stage mast,2-stage full free mast,3-stage full free mast
Power source:Diesel,Gasoline,LPG,AC/DC electric forklift are available
Load capacity:2ton,2.5ton,3ton,3.5ton,4ton,4.5ton,5ton,6ton,7ton,8ton,10ton are optional
Attachment:Side shifter,rotator,ejector,fork positioner,paper roll clamp,soft clamp and so on
If you have any question,please don't hesitate to contact us
HYDER professional service will be impressed on you
