European Quality 8 Cores Mini Coaxial Cable

Name: European Quality 8 Cores Mini Coaxial Cable
Brand: Dong Sheng
SKU: 111177791

European Quality 8 Cores Mini Coaxial Cable thumbnail-1

European Quality 8 Cores Mini Coaxial Cable photo-1

US$ 0.01 - 10,000 MOQ: 20 Kilometers

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Dong Sheng

Model Number:

8 cores Mini Coaxial cable

Contact Supplier Request Quote Chat Now

Hangzhou Lin'an Dongsheng Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Dong Sheng

Model Number 8 cores Mini Coaxial cable

Type Coaxial

Number of Conductors 1

Specifications

1) European quality 8 cores Mini Coaxial cable
2) Since 1991 years
3) For telecom system
4. ISO9001/CE/ROHS

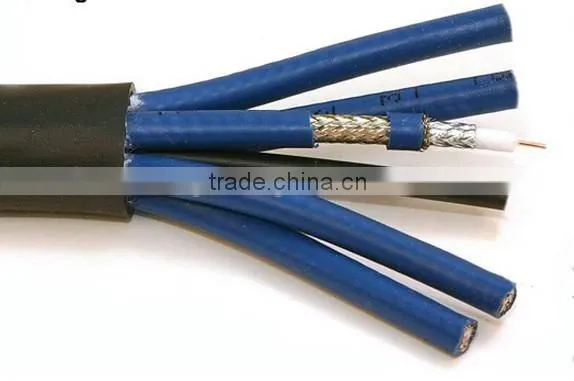

European quality 8 cores Mini Coaxial cable

8cores Mini Coaxial cable

Product Specification:

Telecom Coax Cable BT Series
	The British Telecom types BT3002 suitable for the interconnection of telecommunication transmission equipment. They are mainly used for indoor installation in the transmission equipments for the digital telephone exchange system.They also available in both single and multi-core versions, in standard PVC and LSOH versions.

Type	Imp.Ohms	Inner Conductor(mm)	Dielectric (mm)	Shield	Outer Sheath	O/D mm
BT2001	75	7/0.2 BC	FPE	TC	PVC	4.40
BT2002	75	7/0.2 BC	FPE	2×TC	PVC/LSZH	5.10
BT2003	75	1/0.61 BC	PE	2×TC	PVC/LSZH	6.70
BT3002	75	1/0.31 BC	PE	2×TC	PVC/LSZH	3.55
BT3002*8 Core	75	1/0.31 BC	PE	2×TC	PVC/LSZH	16.0
BT3002*16 Core	75	1/0.31 BC	PE	2×TC	PVC/LSZH	21.0

RG174 mini coaxial cable ,Mini Coaxial Cable RG59 1885A , Sub-Miniature 59/U(1865A)

Miniature Coax Cable

Mini RG59(1855A)

Sub-Miniature 59/U(1865A)

RG174 mini-coax

RG178 mini-coax

RG179 mini-coax

RG188 A/U

0.81 mm Mini-Coax

1.13 mm Miniature Coax

1.32 mm Miniature Coax

1.37 mm Miniature Coax

1.48 mm Miniature Coax

Miniature Coax Cable » Mini RG59(1855A)

Mini RG59(1855A) is the HDMI(High Definition Multimedia Interface) cable. HDMI cable to transmit through a high-definition, all-digital audio and video content. HDMI is the future direction of HDTV (high definition television).
• Mini RG59 have 23 AWG solid bare copper conductors, Foamed HDPE insulation, 100% bonded foil shield and 95% tinned copper braid shield, PVC jacket. • Return Loss: 5MHz to 1600MHz>23 dB ; 1601MHz to 4500MHz >21 dB. • Out jacket following colors: brown, red, orange, yellow, blue, violet, gray, white, black, aqua, rose and green

Type	Imp.Ohms	Inner Conductor(mm)	Dielectric (mm)	Shield	Outer Sheath	O/D mm
MiniRG59	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	4.10
MiniRG59×3	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	11.20
MiniRG59×4	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	12.22
MiniRG59×5	75	1/0.5 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	13.80
MiniRG59×8	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	16.20
MiniRG59×10	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	20.22
MiniRG59×12	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	20.96
MiniRG59×16	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	23.27

Application:

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable

for satellite systems where lower attenuation required

Packing:

1) Packing Lengths:100/roll,200m/roll,250m/roll,300m/roll

2) Inner Packing:Wooden reel,plastic reel,and paper reel

3) Outer Packing:Carton box,pull out box,pallet available

4) Other packing available according to clients’request

Product pacakge:

Certificate:

We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.

Factory and Production line

We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.

Exhibition Trade Show

We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company and products to the future new customers.

As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59, RG6,RG11 CATV and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor, Telephone Cable,Combined Cable,and cable accessories etc. We are covering 1,6000 square meters, including standard workshops and warehouse,to ensure your goods in goods production condition.

Meanwhile,Our company has obtained ISO9001,also our products has passed CE,RoHS ,UL certificate,which is Promise high quality cable .

Dongsheng Cable products have been exported to Southeast Asia ,Middle East, European,South America,USA and gain good reputation.We will meet client requirements
