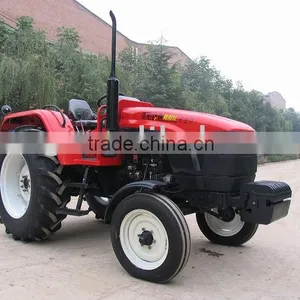

Tractor thumbnail-1
Tractor photo-1
US$ 6,300 - 7,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Wheel Tractor
By wheel:
2WD
Usage:
Farm Tractor
Contact Supplier Request Quote Chat Now
Luoyang Lutong Heavy Industry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Wheel Tractor
By wheel 2WD
Usage Farm Tractor
Certificate Other
Brand Name LUYANGHONG
Model Number LHY820
Place of Origin Henan, China

Specifications

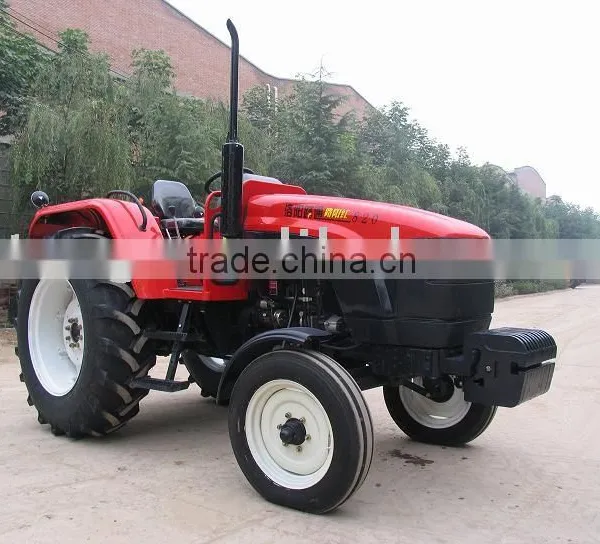

LHY820 82HP 4x2 farm tractor

LHY820  82HP 4x2  farm tractor



Main technical parameters

Type

LYH820

        LYH824

Model

4*2 (double-wheel driving)

4*4 (4-wheel driving)

Dimension (mm)

Length (with front loading)

4060

4396

Width

2038

2038

Height (to vent)

2810

2810

Wheelbase (mm)

2195

2195

Front-wheel tread (mm)

1385~1685 (1485 in common use)

1610

Rear wheel tread (mm)

1620~2020 (1620 in common use)

The smallest ground gap (mm)

476



Agriculture ground gap (mm)

396

379

Turning radius

   (m)



5.1

5.6

not apply the brake with single side





The whole tractor mass (kg)

structure mass

3350

3750

the smallest using mass

3100

3500

Loading mass

front loading

3590

3990

rear loading

3340

3740

Rated traction (KN)

17.3

20.8

Engine type

4108T82

Marked power (KW)

60.3

Clutch

10 inch double action

Gear box

Shift combination style. Mesh cover shift

Speed range

2.4-31.9

Centre turn

Spire and taper sub-gear

Different speeder

Double planet wheels, close style

Different speed lock

Post and pin style

Final transmission

Planet gear style

Front driving bridge

 Full closed prick gear style (for types with 4- wheel driving )

Independent driving box

   Column gear with straight teeth (for types with 4-wheel driving )

Front wheel table specification

7.5-16

11.2-24

Rear wheel table specification

13.6-38

Redirector type

Mechanical or hydraulic turning

Arrester type

Arrester with double pieces of oil-bath tray (mechanical style)

Lifter type

Semi-separation

Control way to plough depth

Force, place control and floating control

Hanging device type

Three point hanging with postposition

Driving output axis turning speed (r/min)

540/760
