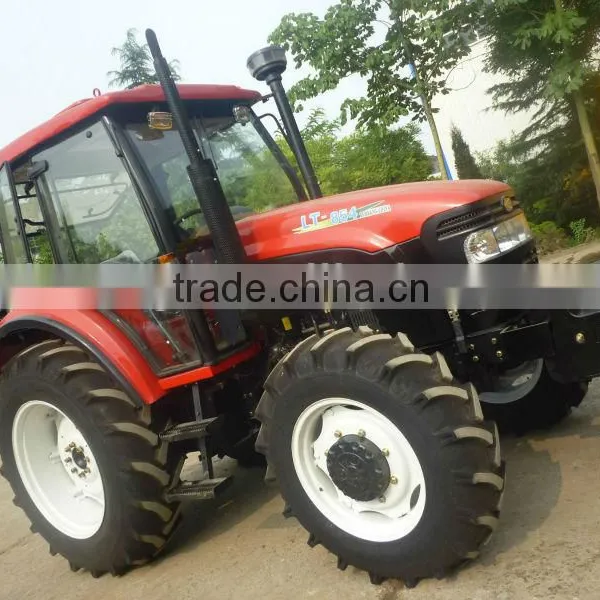

85HP 4WD Wheel Tractor

85HP 4WD Wheel Tractor thumbnail-1
85HP 4WD Wheel Tractor photo-1
US$ 13,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Luoyang Lutong Heavy Industry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 62.5KW
Certificate CE
Brand Name LUTONG
Model Number LT854
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

85HP 4WD Wheel Tractor
1.16F+8R shift gearbox;
2.6-spline 540/1000 r/min;
3.Cabin with air-conditioner;
4.CE.

Hot Sale LT854 85HP 4WD Wheel Tractor

Main Features

1.Chinese YTO(Dong'fang'hong Brand) famous diesel engine,large torque backup and low fuel consumption;

2. Independent 12-inch double action clutch;

3. Gearbox is 4X(4+2),16 forward gears+8 reverse gears, mesh sleeve shift;

4. Split-type and High-pressure Lifter with double cylinder;

5.Full hydraulic front-wheel steering with independent circuit;

6.Reliable hydrostatic disc brake with large brake torque;

7.Stable and Independent Power Output, with 6-spline 540/1000 r/min;

8.Planet-gear Final Transmission with small volume and large reduction ratio;

9.Rear three-point linkage, tire (front wheel+rear wheel) is 11.2-24+16.9-34

10.Cabin with air-conditioner and comfortable seat.

85HP 4WD Wheel Tractor

Technical Specifications



Model LT854

Type

4x4

Diesel Engine

Diesel model

YTO DONGFANGHONG Diesel Engine LR4B5-23

Type

Vertical, water-cooled, 4-stroke, direct injection, natural aspiration

Engine power/speed

62.5kw & 2300r/min

Cylinder

4No.s

Weight

Structure mass

3960/3800kg(with cab/without cab)

Min. using mass

4250/4090kg(with cab/without cab)

Mass distribution(type with cab)

1560/2690kg ( front wheel /rear wheel )

Mass distribution(type without cab)

1520/2570kg ( front wheel /rear wheel )

Front counterweight

max.270kg

Rear counterweight

max.470kg

Parameters (1&2&3&4)

1).Min. turning circle radius

4.2+ 0.3m/ 4.9+0.3m (unilateral/ not unilateral brake)

2).Rated traction force

19.9KN

3).Speed range(Forward/Reverse)

34.85-0.46/10.78-0.62km/h

Gear

16F+8R

4). Front & Rear Wheel Specification

Front wheel spec.

11.2-24

Rear wheel spec.

16.9-34

Overall Dimensions

Min. Ground clearance

379mm (low-side from front driving axle)

Wheelbase

2195mm

Front wheel tread

1610mm

Rear wheel tread

1620-2020mm (1620mm dispatching from factory)

Overall dimension (L*W*H)

4396*2038*2810mm

Note: L includes front counterweight;

H includes exhaust outlet.

Brake System

Parking brake

Independent hand brake

Service brake

Hydrostatic, wet style, disc style

Trailer brake control

Air-cut brake

Hydraulic Suspension System

Type

Split-style

Linkage category

Rear three-point linkage II

Depth Control Method

Split-style lifter & Floating control

Cylinder Type

Double action, Split-style

Lifting force

15.2KN (610mm behind the hanging point)

PTO System

Type

Rear independent type

PTO Power

62.5KW

PTO Speed

540/1000 6-spline

Rotation direction

Clockwise
