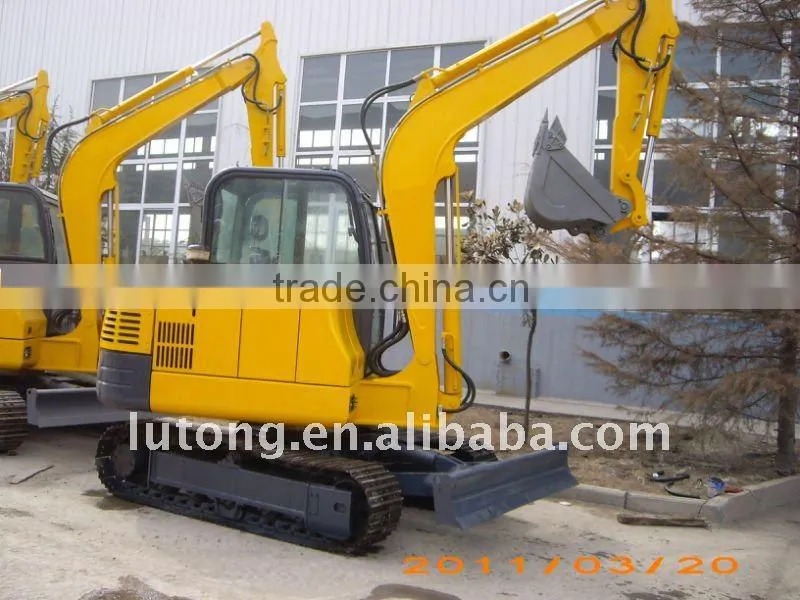

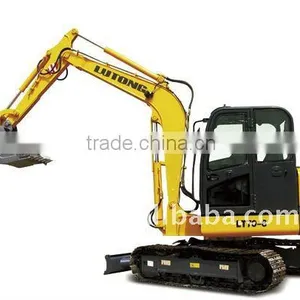

(Construction Machinery)7 Ton Hydraulic Crawler Excavator

Name: (Construction Machinery)7 Ton Hydraulic Crawler Excavator
Brand: lutong
SKU: 111184685

US$ 1 - 100,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Henan, China

Brand Name:

lutong

Model Number:

LT70-6

Luoyang Lutong Heavy Industry Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name lutong

Model Number LT70-6

Condition New

Moving Type Crawler Excavator

Operating Weight 6800kg

Bucket capacity 0.24m3

Maximum Digging Height 5752mm

Maximum Digging Depth 4022mm

Machine Weight 7000Kg

Max Digging Radius 6387mm

Specifications

1.CUMMINS B3.3
2.Main factory of China.
3.LT70-6 Crawler Excavator.

Technical parameters:

Model			LT70-6
Bucket capacity		m3	0.24
Operating weight ---including boom & arm & bucket & operator & lubricant & coolant liquid & full fuel tank		kg	6800
Dimension (in transportation)	Overall length	mm	6,230
	Overall width	mm	2,060
	Overall height	mm	2,780
	Min. clearance	mm	350
Engine	Model	Japan Original Imported Cummins B3.3
	Type	Water-cooled, DI, 4-stroke
	No. of cylinders	4
	Bore x Stroke	95mm x 115mm
	Total displacement	L	3.3
	Rated output power	KW/rpm	44.1/2200
	Peak torque	N.m/rpm	214/1600
Digging performance	Max. digging height	mm	5,752
	Max. dumping height	mm	4,063
	Max. digging depth	mm	4,022
	Max. digging radius	mm	6,387
	Max. bucket digging force	kg	3800
Hydraulic system	Main pump	piston pump X 2 + gear pump X 1
	Max. displacement	ml/r	66.2
	Max. pressure
	Boom & arm & bucket	Mpa	22
	Driving system	Mpa	22
	Swing system	Mpa	21
	Control system	Mpa	4
	Pilot pump	Gear pump
	Main valve	9-set Multi-way valve
Travel system	Travel motor	Dual-speed independent piston motor
	Brake system	Spring-loaded multi-disc hydraulic brake
	Travel speed (Gear I/II)	km/h	4.6/2.8
	Max. output torque	KN	8.5
	Grade ability	°/%	35°/70%
	Track shoe width	mm	400 (standard)
	Ground pressure	Kpa	38
	Track length ( chassis)	mm	2,550
	Track wheel base	mm	1,990
	Track gauge	mm	1,660
Bulldozing plate	Bulldozing plate width	mm	2,100
	Bulldozing plate height	mm	420
	Operating distance(lifting up/down)	mm	370/350
Capacity	Fuel tank capacity	L	128
Capacity	Hydraulic oil tank capacity	L	75
