Semi-hermetic Compressor Racks for Cold Storage Room Condensing Unit

Semi-hermetic Compressor Racks for Cold Storage Room Condensing Unit thumbnail-1
Semi-hermetic Compressor Racks for Cold Storage Room Condensing Unit photo-1
US$ 2,233 - 34,325 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Other, Condensing unit
Place of Origin:
Shandong, China
Brand Name:
LYTTE, LUTE, OEM
Contact Supplier Request Quote Chat Now
Shandong Lvte Air Conditioning System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Condensing unit
Place of Origin Shandong, China
Brand Name LYTTE, LUTE, OEM
Model Number JZBB
Certification CE, GS, UL
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Bitzer Compressor Rack
-For Cold Storage Room Condensing Unit
-Semi-hermetic Compressor
-20HP-250HP
-Cold Room,Freezer R

Semi-hermetic Compressor Racks for Cold Storage Room Condensing Unit



JZBB Series Air Cooled Compressor Racks for Cold, Freezer Room Condensing Unit



Introduction&Features



1. Utilized Semi-Hermetic Bitzer Refrigeration Compressors; Good Quality and Reliable Performance;

2. The products feature by their structures of muti semi-hermetic Bitzer Compressors paralleled together to from one integrated  systems. The discharge pipes, suction pipes are one shared by all the compressors for each units. The paralleled system is simpler for intergrated control and cap adjustment;

3. Structure is compacted to save installation space;

4. According to the change of cooling load,the multilevel energy regulation can be realized and also can reduce the equipment running cost.

5. Reduce the influence on operation that caused by machine failure so as to increase the realibity of the unit operation.

6. R404a, R22 units can be provided.



Models Specifications: JZB     B     F     3 ------- 30     M     B     Y

JZB--LVTE Company Products Code

B--Compressor Type Code: B(1-stage Semi-hermetic); SB(2-stage Semi-hermetic)

F--Cooling Type: F(Air Cooled); S(Water Cooled)

3--Compressor Quantity

30--Compressor Power Input; HP

M--Temperature:M:-5~5°C;L:-20~-15°C;J:-40~-25°C

B--Compressor Brand: Bitzer

Y--Refrigerant, Y-R404A, ---:R22



Model Details:

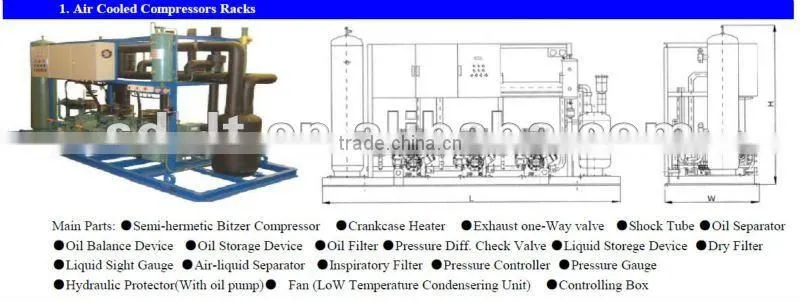

Air Cooled Compressor Racks; Refrigerant-R22

Main Parts: Semi-hermetic Bitzer Compressor/Crankcase Heater/Exhaust one-Way valve/Shock Tube/Oil Separator/Oil Balance Device/Oil Storage Device/Oil Filter/Pressure Diff. Check Valve/Liquid Storege Device/Dry Filter/Liquid Sight Gauge /Air-liquid Separator/Inspiratory Filter/Pressure Controller/Pressure Gauge/Hydraulic Protector(With oil pump)/Fan (LoW Temperature Condensering Unit)/Controlling Box

Semi-hermetic Compressor Racks for Cold Storage Room Condensing Unit

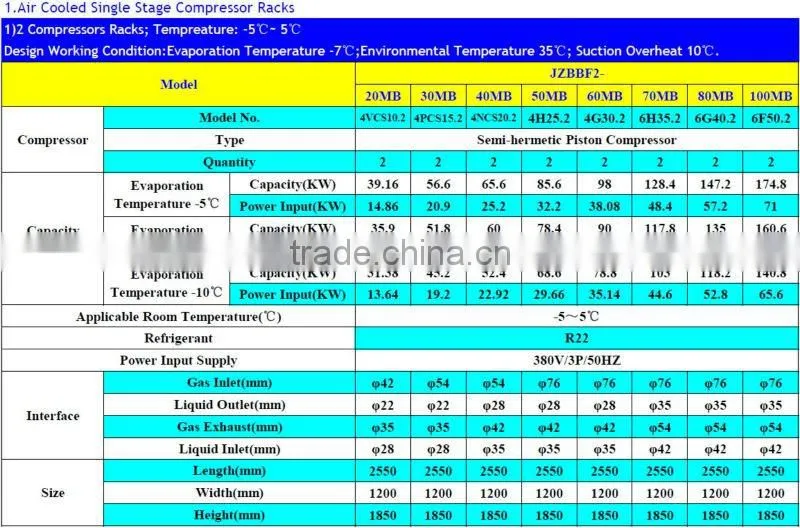

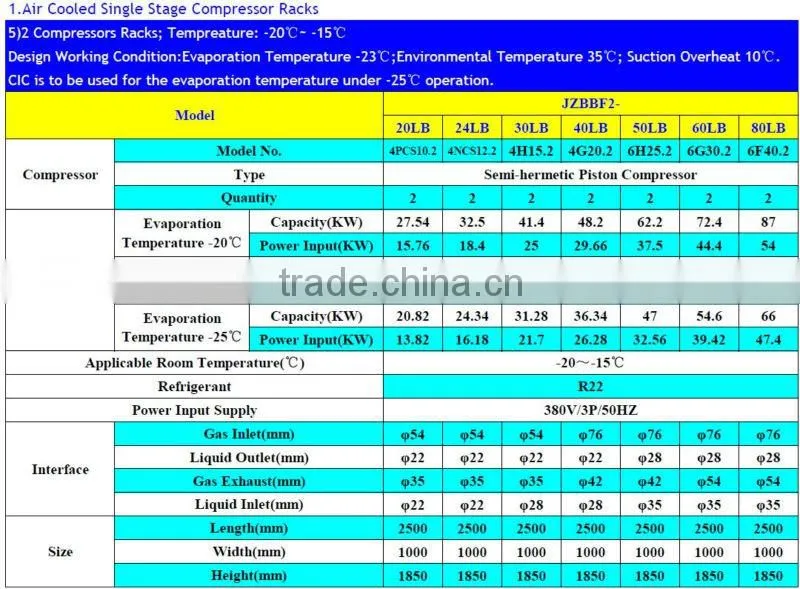

a. 2 Compressors Racks

Temperature:-5°C~ 5°C              Models:JZBBF2-20MB---JZBBF2-100MB(20HP-100HP)

Temperature:-20°C~ -15°C        Models:JZBBF2-20LB---JZBBF2-100LB(20HP-100HP)

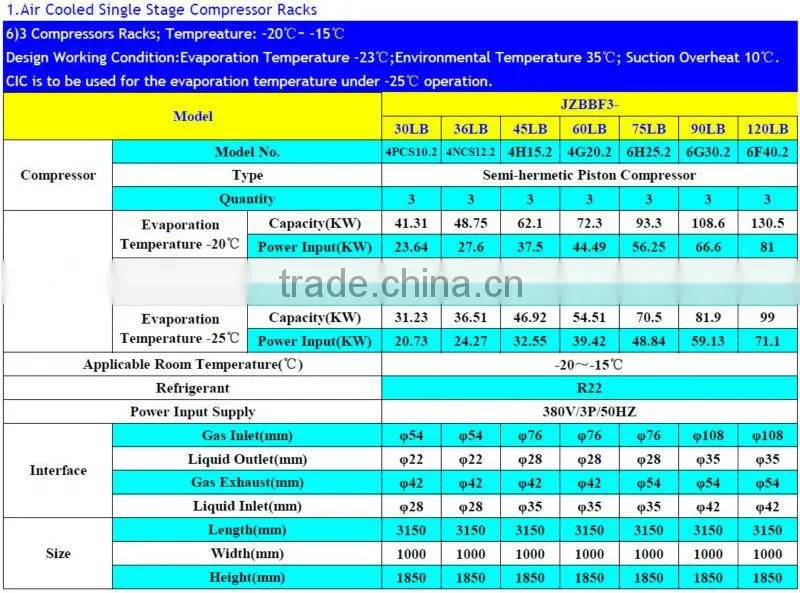

b. 3 Compressors Racks

Temperature:-5°C~ 5°C              Models:JZBBF3-30MB---JZBBF3-150MB(30HP-150HP)

Temperature:-20°C~ -15°C         Models:JZBBF3-30LB---JZBBF3-120LB(30HP-120HP)

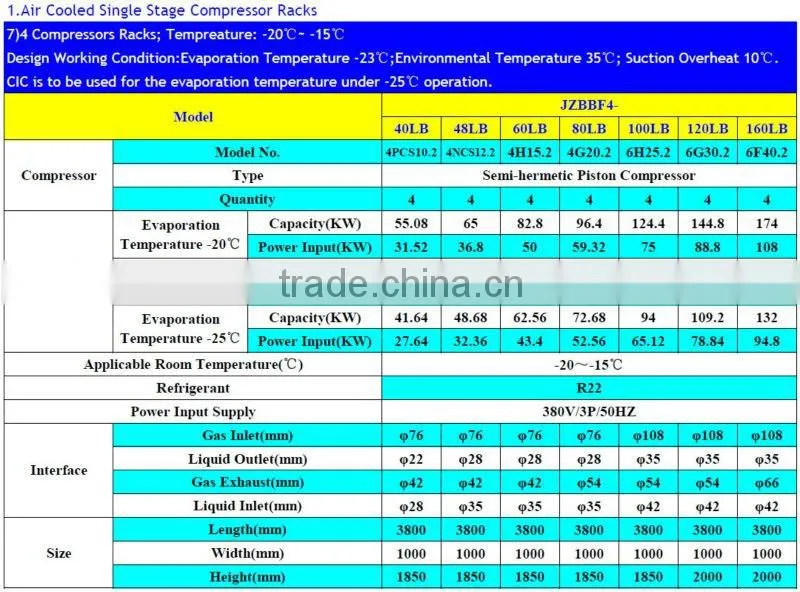

c. 4 Compressors Racks

Temperature:-5°C~ 5°C               Models:JZBBF4-40MB---JZBBF4-200MB(40HP-200HP)

Temperature:-20°C~ -15°C           Models:JZBBF4-40LB---JZBBF4-160LB(40HP-160HP)

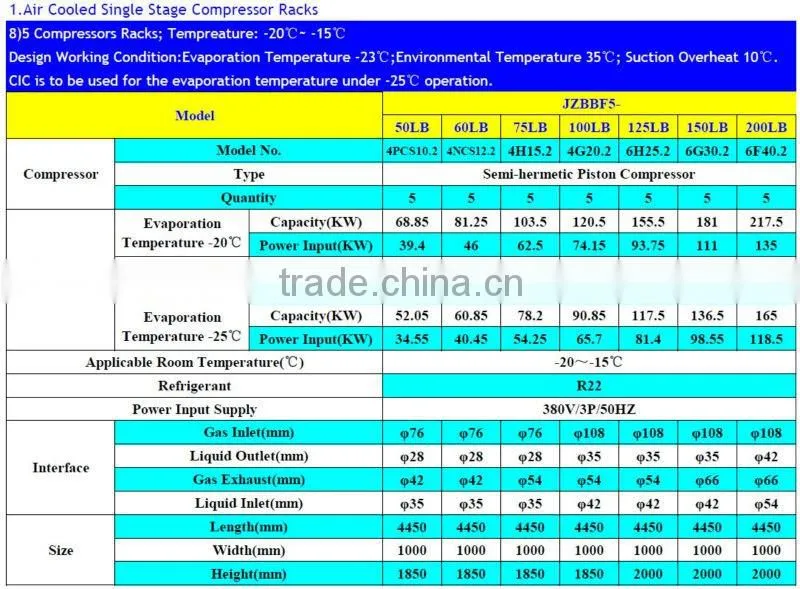

d. 5 Compressors Racks

Temperature:-5°C~ 5°C                Models:JZBBF5-50MB---JZBBF4-250MB(50HP-250HP)

Temperature:-20°C~ -15°C           Models:JZBBF5-50LB---JZBBF4-200LB(50HP-200HP)

Semi-hermetic Compressor Racks for Cold Storage Room Condensing UnitSemi-hermetic Compressor Racks for Cold Storage Room Condensing UnitSemi-hermetic Compressor Racks for Cold Storage Room Condensing UnitSemi-hermetic Compressor Racks for Cold Storage Room Condensing UnitSemi-hermetic Compressor Racks for Cold Storage Room Condensing UnitSemi-hermetic Compressor Racks for Cold Storage Room Condensing Unit

Semi-hermetic Compressor Racks for Cold Storage Room Condensing UnitSemi-hermetic Compressor Racks for Cold Storage Room Condensing Unit
