Specifications
Danfoss Maneurop Condensing Unit-Maneurop Compressor
-Open Type for Cold Storage, Freezer
-R404a Refrigerant
-CE, ISO

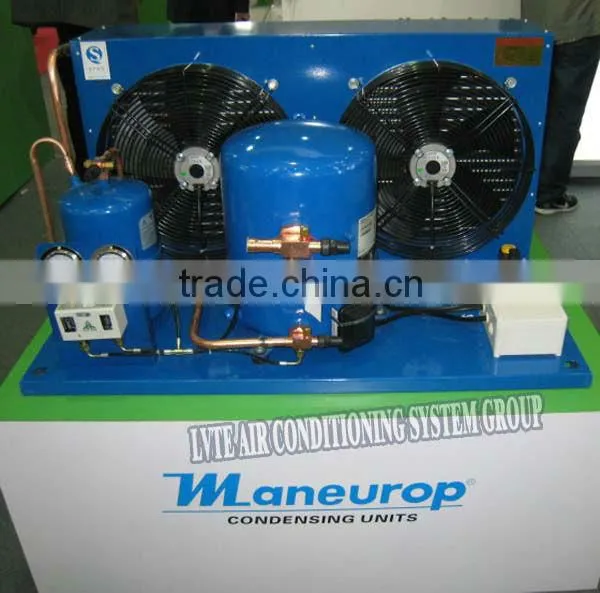

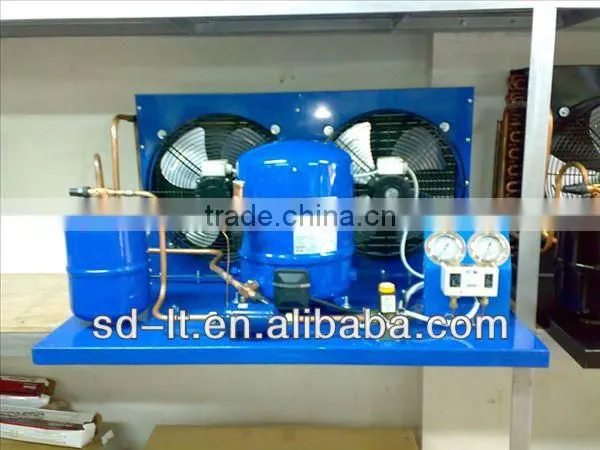

Cold room Refrigeration Condensing Unit with Maneurop Compressor
1. Product description
This series products feature open type structure with hermetic Danfoss Maneurop compressor, that is liquid shock proof. The units are air cooled , no cooling system is needed.
2. Main components
Excellent brand refrigeration parts are employed for all products:
Hermetic Danfoss Maneurop compressor;
Copper tube & aluminum fin type heat exchanger;
Air Cooled Condensing Unit Specifications:
Model Specifications:
H G M - 18
H-Temperature, H:-5~5°C; M:-18~-15°C(R22), -25°C~ -15°C(R404a)
G-Compressor Brand:Danfoss Maneurop
M-Refrigerant Type, M:R22; Z:R404a
18-Compressor Model No.
Maneurop Compressor:
R22 Units:
| MT18 | MT22 | MT28 | MT36 | MT40 | MT50 | MT64 | MT80 | MT100 | MT125 | MT160 |
R404a Units:
| MTZ18 | MTZ22 | MTZ28 | MTZ36 | MTZ40 | MTZ50 | MTZ64 | MTZ80 | MTZ100 | MTZ125 | MTZ160 |
2. Refrigerant: R404A
2.1 Middle and High Temperature:-5°C~ 5°C Models: HGZ18---HGZ160
2.2 Middle and Low Temperature:-25°C~ -15°C Models: MGZ28---MGZ160

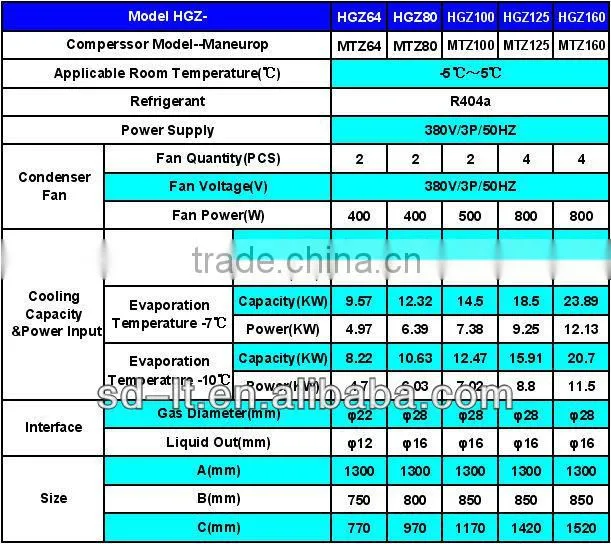

2. HGZ Series:Air Cooled R404a Condensing Units
2.1 Temperature:-5°C~ 5°C
Design Working Condition:Evaporation Temperature -7°C; Environmental Temperature 35°C;Suction Superheat 10°C.

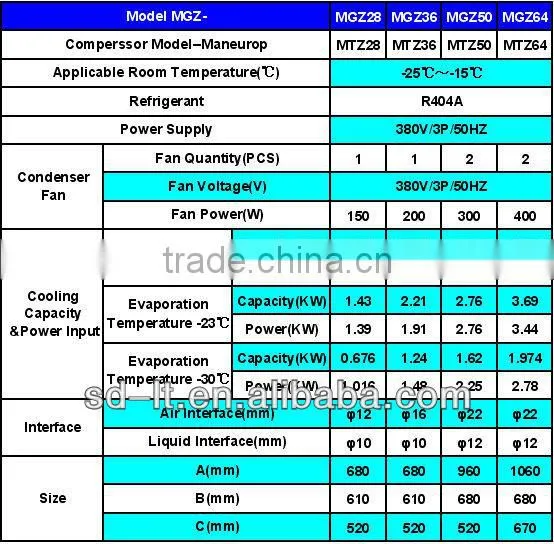

2. MGZ Series:Air Cooled R404a Condensing Units
2.2 Temperature:-25°C~ -15°C
Design Working Condition:Evaporation Temperature -23°C; Environmental Temperature 35°C;Suction Superheat 10°C.
