Specifications
LTWHM(R) Series Scroll Compressors Modular Type1. Low energy consumption
2. Stable oprertaion
3. Little vibration

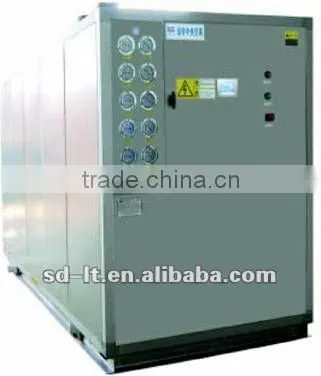

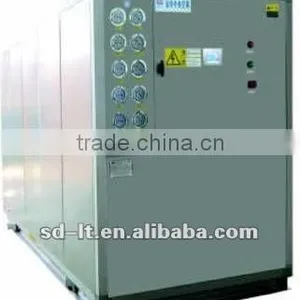

Scroll Compressors Modular Type Ground Source Heat Pump
MODELS: LTWHM(R)-08---LTWHM(R)-70
Heating Capacity: 37-2632KW
Cooling Capacity: 33-2340KW
FEATURES:
Heat resource:
From groundwater, surface water (rivers, lakes, sea) and soil;
Usage:
Can be used for heating and cooling by radiant floor, radiator, fan coil units and other end of the form, also based on the demand, preparation for free hot water;
Compressor:
Adopting world famous brand semi-hermetic screw-type or fully closed scroll-type;
Environment protection:
No combustion, no smoke, no boiler or cooling tower makes the environment more beautiful.
Low charge:
One-time investment only 1/2 to 1/3 of traditional air conditioning, the running cost is 1/2 to 1/3 of traditionals.
Widely Application:
Hotels, restaurants, hospitals, office buildings, theaters, stadiums, residential quarters, textile, food, medicine,metallurgy, chemicals and boiler works etc.

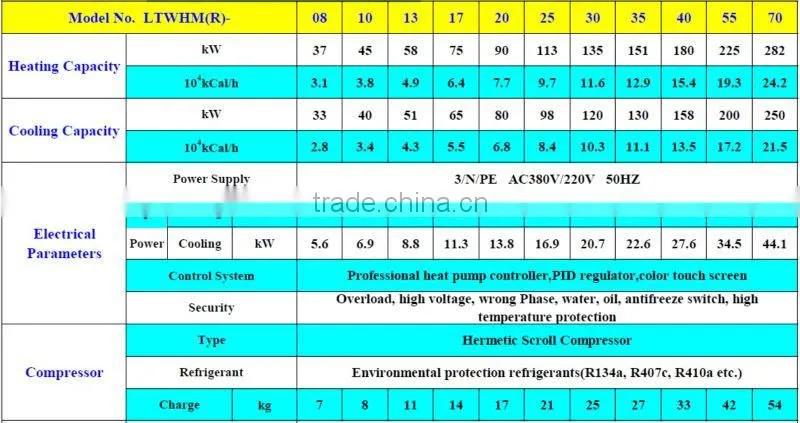

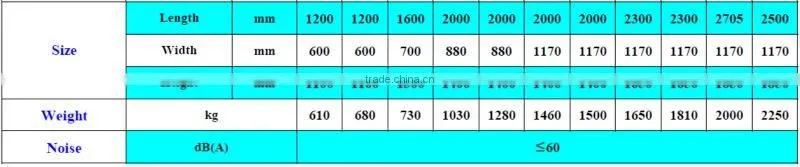

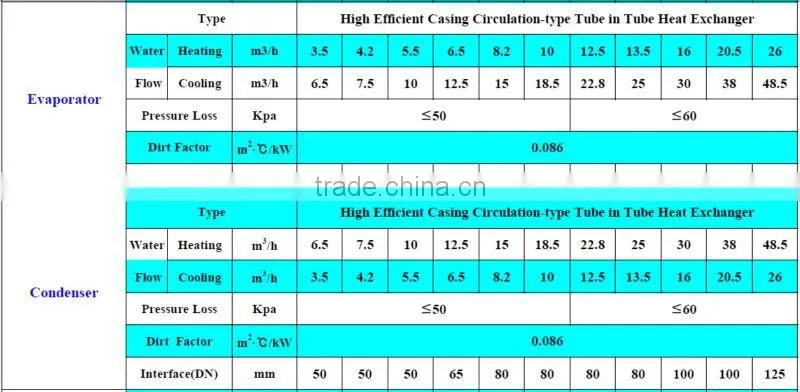

Technical Data
Notes:
1.Cooling Standard Conditions:Chilled water inlet/outlet 12°C/7°C;Cooling water inlet/outlet 18°C/29°C.
2.Heating Standard Conditions: hot water inlet/outlet 40°C/45°C;cooling water inlet/outlet 15°C/7°C;The max hot water temperature 65°C.
3.Heat recovery equipments can be added.

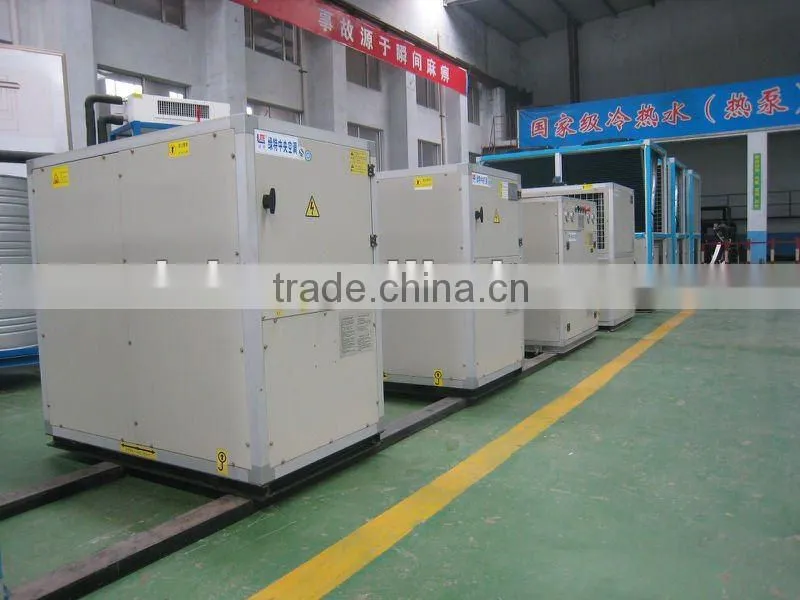

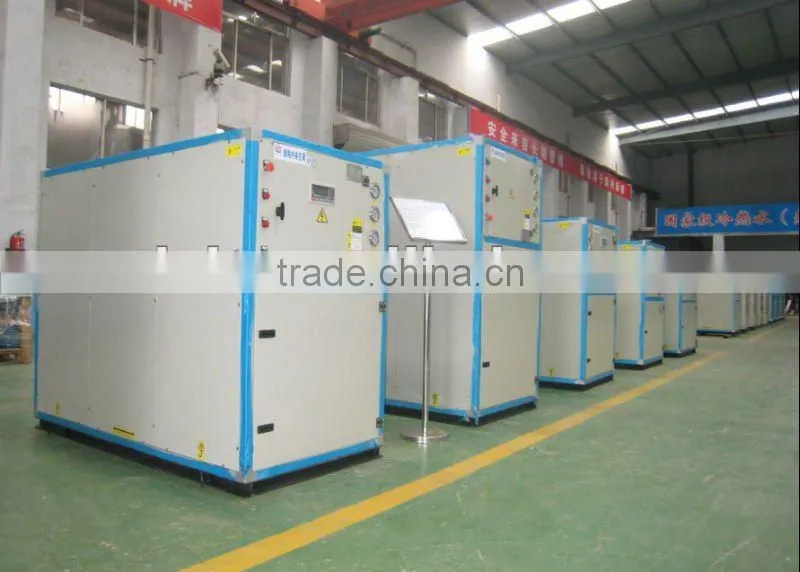

Products in the Factory
