Specifications
-With scroll, or recipocating compressor;-Reliable control components and professional control procedure;
-Safety protection

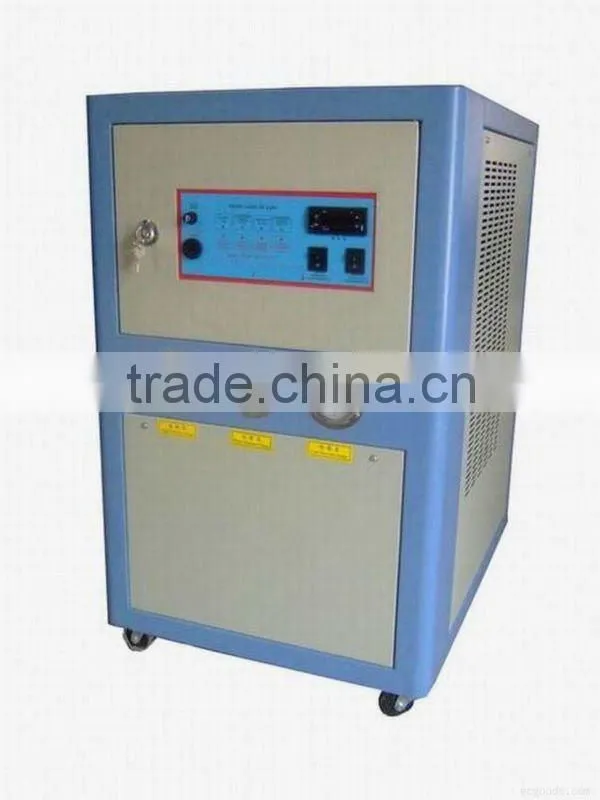

LTWS Series Box Type High Quality High Efficiency and Energy Saving Industrial Water Cooled Water Chiller
Two Kinds of Models:Water Cooled Water Chiller/Water to Water Chiller
1. Cooling Condition: Chilled Water In/Out 12°C/7°C;Cooling Water In/Out 30°C/35°C
Models: LTIC03WS-40WD
Cooling Capacity: 9KW-140KW
2.Cooling Condition: Chilled Glycol in/out -1/-5°C;Cooling Water In/Out 30°C/35°C
Models: LTIC03WSL-40WDL
Cooling Capacity: 5KW-70KW
Introduction
A. With scroll, or recipocating compressor of high quality, high efficient heat exchangers, excellent system design, by excllent
process, the chillers is of suffient capacity and efficiency.
B. The chillers will work stably for long time period as they are produced by excllent process, composed of reliable control
components and professional control procedure.
C. Complete safety protection:
1.High&low pressure protection, pressure safety value protection;
2.Overload protection to the compressor;
3.Power supply protect for phase lack, counter phase, voltage too high and voltage deficient;
4.Water system protection for freezing breaking, water lack etc.
Features
1. Ready to work only after connected to chilled water system;
2. A stainless steel water vessel,a low noise pump have been fixed inside the chiller;
3. With energy saving fan of large air flow and low noise;
4. The chillers of capacity below 50KW is movable by wheels with them;
5. The chillers of capacity over 50KW are double refrigeration system design that is good to reduce the frequent start and stop for load change. The chillers can run even 1 system is in trouble.
6. Strict test and inspection has been made before the chillers are delivered.

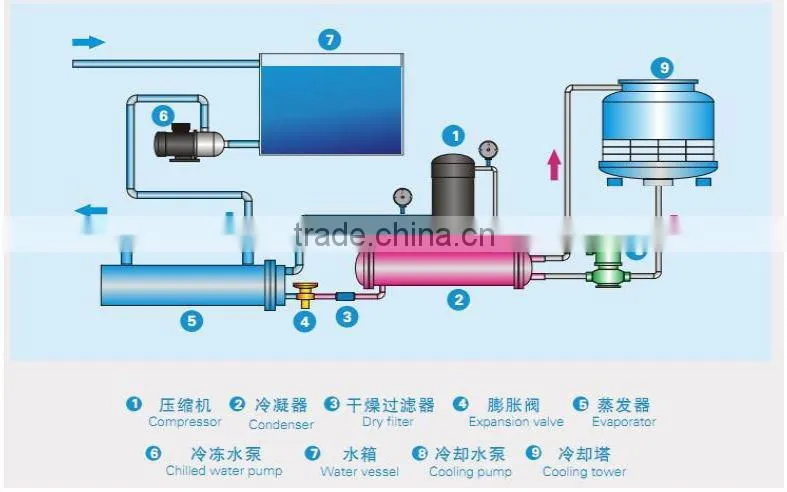

System Diagram

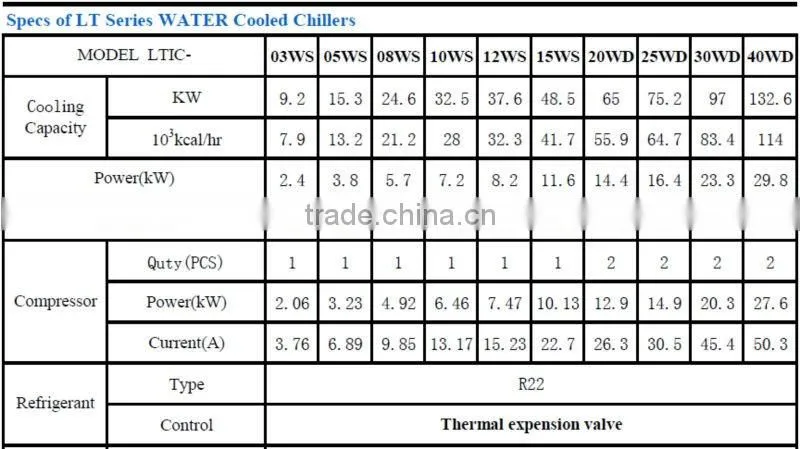

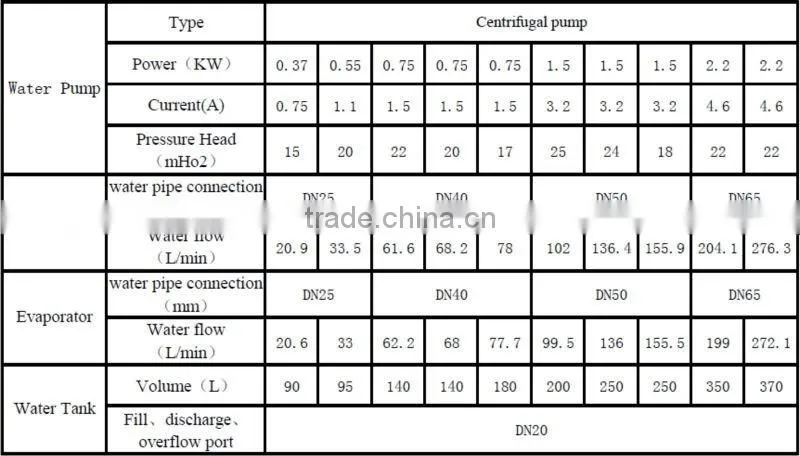

Model Specifications
Remark:
1.Colling Condition: Chilled water in/out 12/7°C; cooling water in/out 30/35°C;
2.Suitable chilled water temperature: 9-25°C;
3.Power supply: 3P-380V-50HZ;with voltage allowance ±10%,voltage dif between the phase lines±2%;
4.The data above is for R22, contact us if that for R134a,R407c and other refrigerant need;
5.There may be Changes for improvement without notice, confirm always before your order.

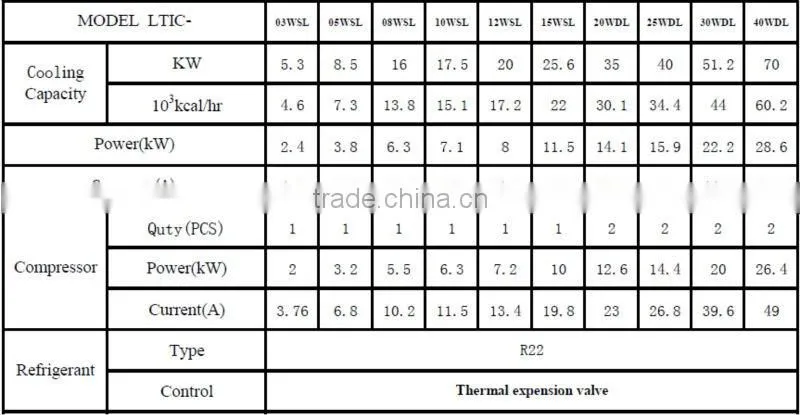

Model Specifications:Low Temperature(-5°C)

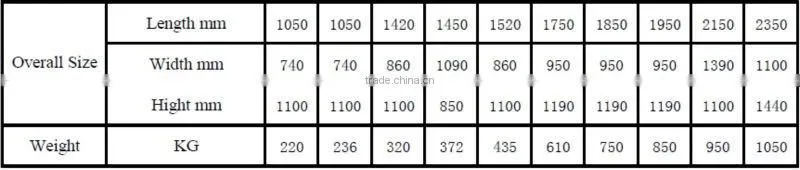

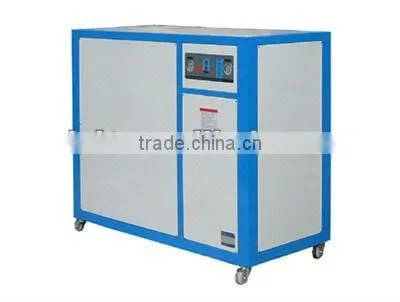

Overall size

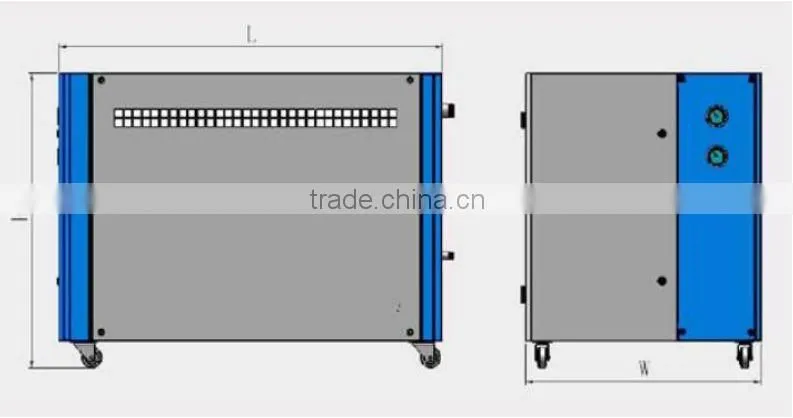

LTIC-03WS-LTIC-15WS

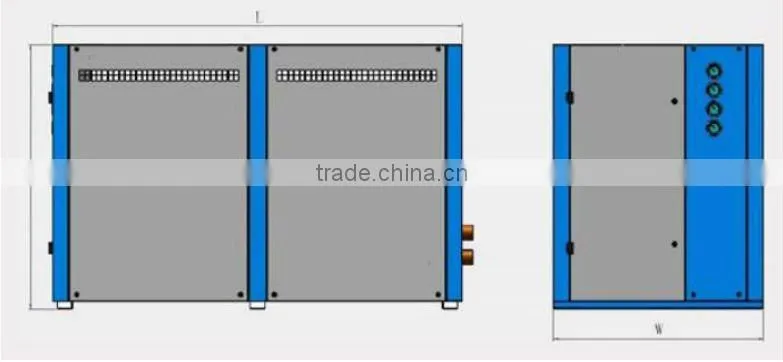

LTIC-20WD-LTICQ-40WD
PRODUCTS IN THE FACTORY
