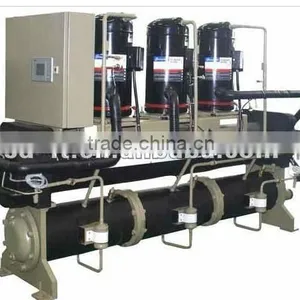

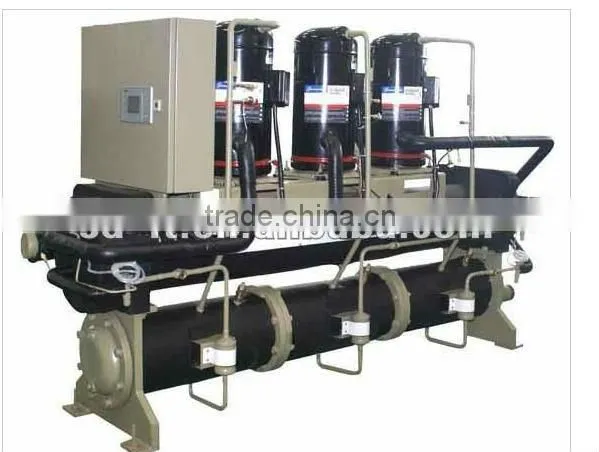

Help CenterScroll Compressors Water Cooled Chiller With Shell&Tube Evaporator
Related Products
-
Water Cooled Chiller for Central Air ConditioningUS$ 1,000 - 10,000MOQ: 5 Units -
Water Cooled Water Chiller(100-4000KW)US$ 1,000 - 10,000MOQ: 5 Units
-
8-158KW Water Cooled Water Chiller With Scroll CompressorUS$ 1,200 - 15,000MOQ: 1 Piece
-
Water Cooled ChillerUS$ 8,000 - 100,000MOQ: 1 Piece
-
Water Cooled Screw ChillerUS$ 8,000 - 100,000MOQ: 1 Piece
Specifications
Water Cooled Chiller-For Air Conditioning
-Water Cooled Type Condenser
-Scroll Compressor
-R407c,R134a Available
LTWS Series Scroll Compressors Water Cooled Water Chiller for Air Conditioning
Two Kinds of Models:Water Cooled Water Chiller/Water to Water Chiller
1. Cooling Condition: Chilled Water In/Out 12°C/7°C;Cooling Water In/Out 30°C/35°C
Models: LT03WS-40WD
Cooling Capacity: 9KW-140KW
LTWS Series Box Type Scroll Compressors Water Cooled Water Chiller for Air Conditioning
Two Kinds of Models:Water Cooled Water Chiller/Water to Water Chiller
1. Cooling Condition: Chilled Water In/Out 12°C/7°C;Cooling Water In/Out 30°C/35°C
Models: LT03WS-40WD
Cooling Capacity: 9KW-140KW
INTRODUCTION:
With scroll, or recipocating compressor of high quality, high efficient heat exchangers, excellent system design, by excllent process, the chillers is of suffient capacity and efficiency.
The chillers will work stably for long time period as they are produced by excllent process, composed of reliable control components and professional control procedure.
Complete safety protection:
1.High&low pressure protection, pressure safety value protection;
2.Overload protection to the compressor;
3.Power supply protect for phase lack, counter phase, voltage too high and voltage deficient;
4.Water system protection for freezing breaking, water lack etc.
FEATURES
Ready to work only after connected to chilled water system;
A stainless steel water vessel, a low noise pump have been fixed inside the chiller;
The chillers of capacity below 50KW is movable b y wheel s wit h them;
The chiller s of capacity over 50KW are double refrigeration system design that is good to reduce the frequent start and stop for load change. The chillers can run even 1 system is in trouble.
Strict test and inspection ha s bee n mad e before the chillers are delivered.
Model Details:
| MODEL LTWS- | 03WS | 05WS | 08WS | 10WS | 12WS | 15WS | 20WD | 25WD | 30WD | 40WD | |
| Cooling Capacity |
KW | 9.2 | 15.3 | 24.6 | 32.5 | 37.6 | 48.5 | 65 | 75.2 | 97 | 132.6 |
| 103kcal/hr | 7.9 | 13.2 | 21.2 | 28 | 32.3 | 41.7 | 55.9 | 64.7 | 83.4 | 114 | |
Cooling Condition: Chilled Water In/Out 12°C/7°C;Cooling Water In/Out 30°C/35°C
