Specifications
Digital Manifold GaugeAdvanced, durable tool for the professional HAVC&R technician it works with CFC, HCFC, HFC refrigerant
DIGITAL MANIFOLD GAUGE
Multi-function Digital Manifold Gauge Set
PR117A (Digital two valve manifold gauge set)

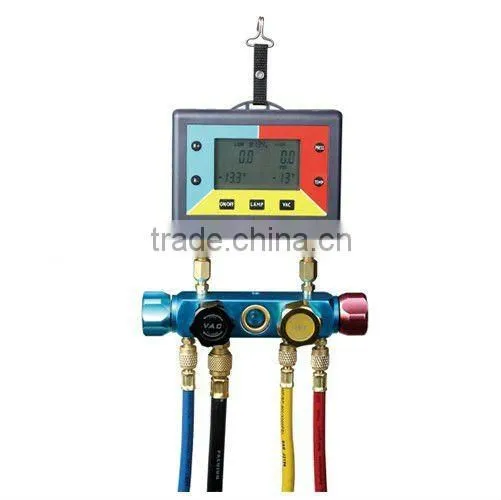

PR117B (Digital four valve manifold gauge set)
Poly RunMulti-Function Digital Manifold Gauge Set features an easy to read digital display for 56 different types and a variety of temperature and pressure units. The gauge are pulsation proof and automatically calibrate to zero at start up at any elevation up to 16000 feet. It can accurately measure the refrigerant temperature and pressure near the outlet of the evaporator and condenser as well as the corresponding pressure conversion and temperature index of the refrigerant saturation. The unit includes 3 high pressure, color coded 72’’ hoses and has 2 valves.
Applied Refrigerants |
All CFC, HCFC, HFC refrigerants total more than 68 types |
|
Unit Measurements |
Pressure |
kg/cm2, in.Hg, mmHg, bar, psi, kPa |
Vacuum |
kg/cm2, in.Hg, mmHg, bar, psi, kPa, Micron |
|
Temperature |
C, F |
|
Display Range |
High Side |
0psi to 725psi 0kPa to 5000Kpa |
Low Side |
0psi to 435psi 0kPa to 3000kPa |
|
Vacuum |
29.92in.Hg to 0in.Hg |
|
Temperature |
-40F to 203F -40C to 95C |
|
Maximum Overpressure |
High Side |
1087.5psi / 7500kPa |
Low Side |
625.5psi / 4500kPa |
|
Vacuum |
59.84in.Hg |
|
Tolerance |
Pressure High Side |
±2.175psi / ±15kPa |
Pressure Low Side |
±1.45psi / ±10kPa |
|
Vacuum |
±0.08859in.Hg / ±0.3kPa |
|
Temperature |
±0.5C |
|
Power Supply |
9 V Battery to 30 hrs. LCD flashes to indicate low battery |
|
Auto Shut-off Time |
30 min. Under no operation Extended 30 min. by any button touch except On/Off Button |
|
Background Lamp Auto Shut-off Time |
10 min. |
|
Operating Temperature |
10.4F to 120.2F -12C to 49C |
|

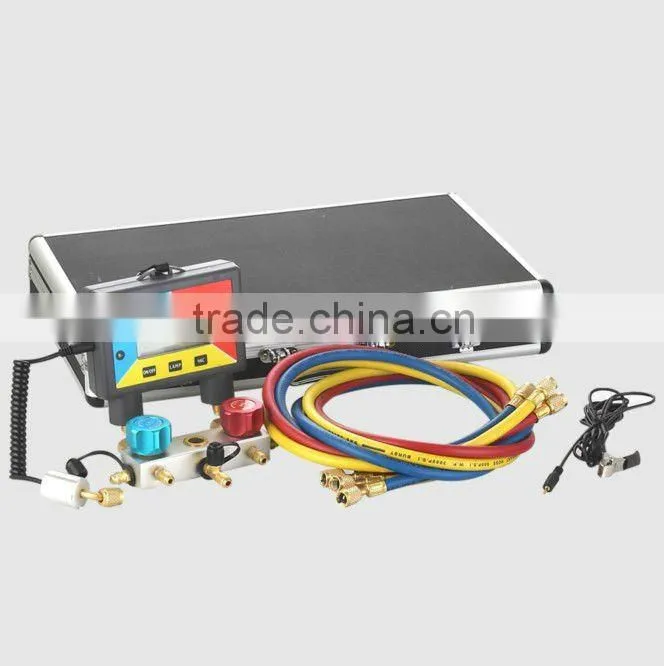

Include
1 Poly Run Digital gauge
2 180cm Charging hose ,W.P./B.P: 800psi - 4000psi
3 Vacuum sensor
4 Temperature sensor
5 Two valve or four valve aluminum manifold for option
6 User's Manual
7 Aluminum case
NOTE
Pressure or temperature below or above the rated ranges will cause a FULL to be displayed
