Specifications

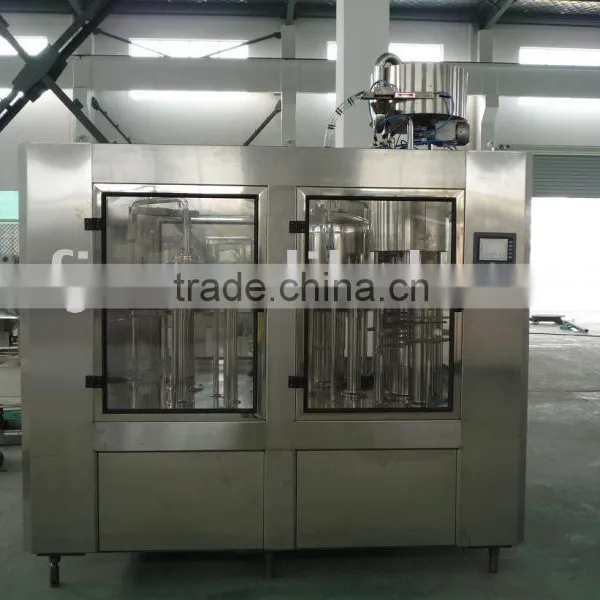

CGF12-12-6 Water Filling Machine is used in producing of Non-soda drink of fruit juice, fruit wine, Mineral Water and pure waterCGF12-12-6 Water Filling Machine:
Usage: The equipment is used in producing of Non-soda drink of fruit juice, fruit wine, minerals and prue water packed in polyester bottles. Washing, filling and capping are integrated in one machines.
Features:
1. The bottle-necks are cramped and bottles are suspended during the operations process.
2. The most advanced technolog from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and meantime avoided leakage.
3. Spring Cramps are used in the bottle washing process. The empty bottles can be turned over 180 degree along the conveying rail.
If you have questions, Welcome to contact Melissa Su.
Technical standards:
Production name |
Washing, filling , capping 3 in 1 unit machine |
Model |
CGF12-12-6 |
Filling Material |
Mineral Water, Pure Water , Juice |
Filling Volume Range |
500ml-1500ml |
Filling Capacity |
2,000-4,000B/H(Based on 500ml) |
Filling Way |
Normal Pressure Filling |
Washing Heads(pcs) |
12 heads |
Filling Heads(pcs) |
12 heads |
Capping Heads(pcs) |
6 heads |
Capping Way |
Screw cap |
Suitable Bottle Diameter(mm) |
D=50-110, H=170-340 |
Suitable Bottle Material |
Plastic Bottle and plastic cap |
Spraying Pressure(Mpa) |
0.2-0.25 |
Total Power(Kw) |
2.07 |
Dimension(mm) |
2300*1600*2500 |
Weight(Kg) |
2800 |
