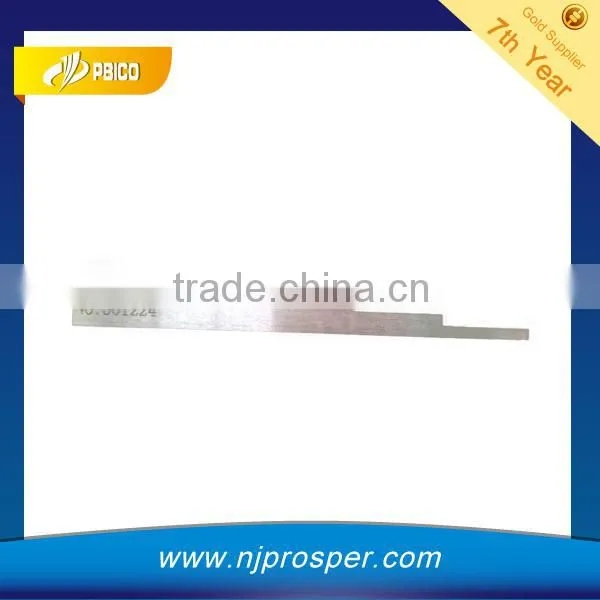

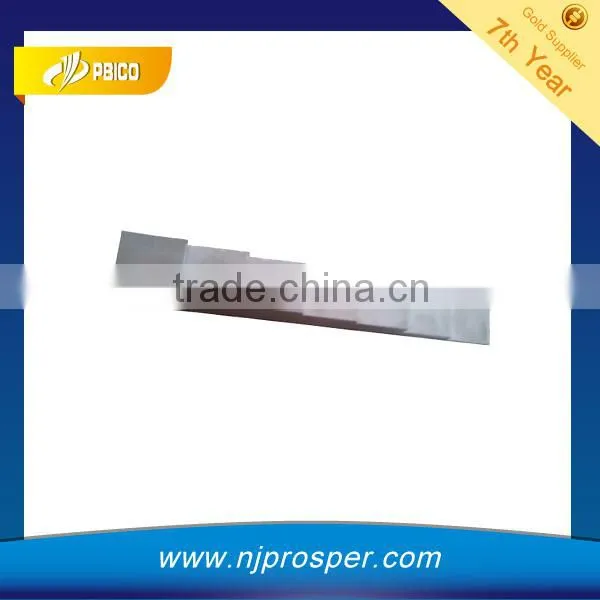

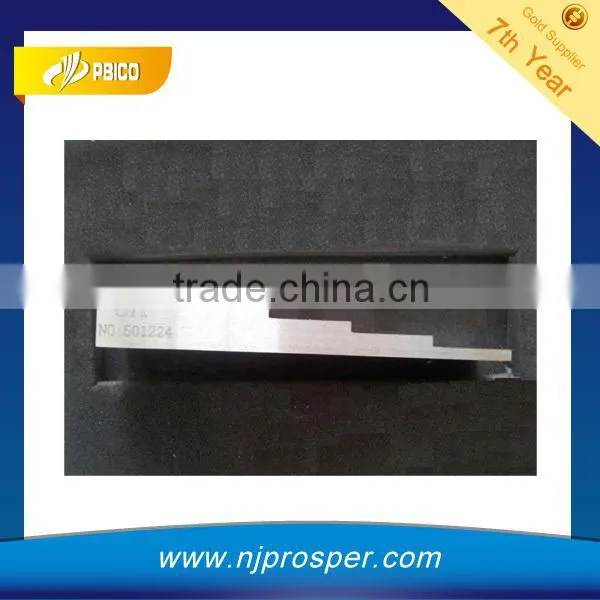

ultrasonic step Calibration blocks (YZF-Y692)
Calibration blocks is an important supplementary material in the Ultrasonic testing which is used to calibrate the sensitivity of the ultrasonic flaw detector and ultrasonic probe. Our calibration blocks are certificated by the authority of the state depeartment.
Calibration Blocks |
Thickness |
Wight |

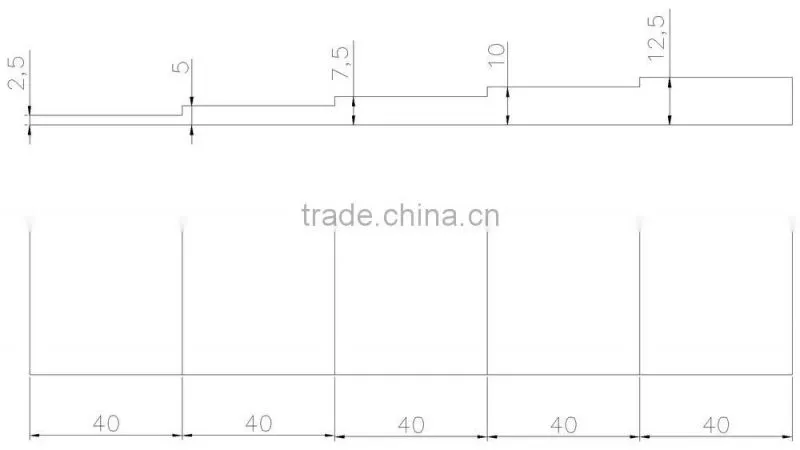

Carbon Steel Model 5A |
2.5/5.0/7.5/10/12.5 MM |
0.471 kg |

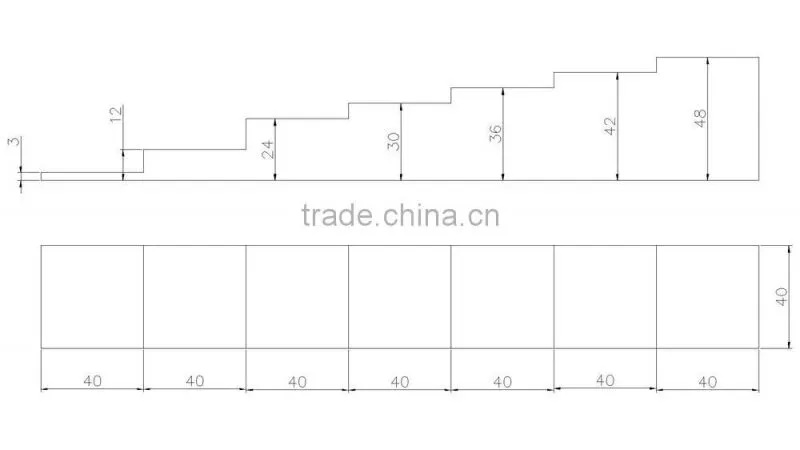

Carbon Steel Model 7A |
3/12/24/30/36/42/48 MM |
2.590 kg |

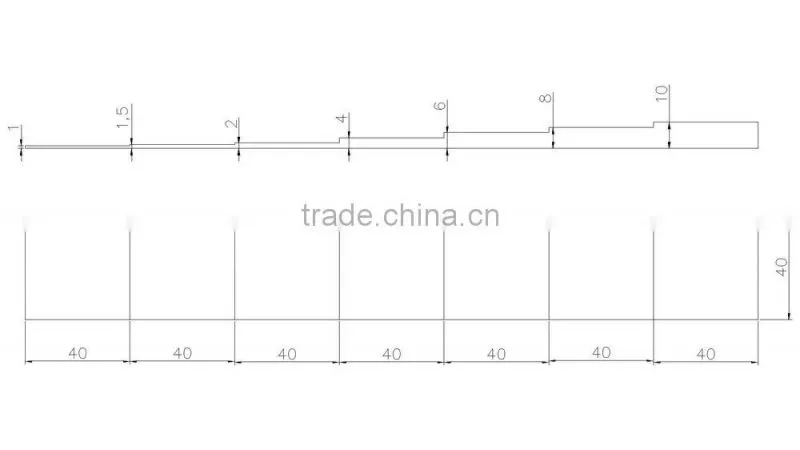

Carbon Steel Model 7B |
1/1.5/2/4/6/8/10 MM |
0.408 kg |
Stainless Steel Model 5A |
2.5/5.0/7.5/10/12.5 MM |
0.476 kg |
Stainless Steel Model 7A |
3/12/24/30/36/42/48 MM |
2.600 kg |
Stainless Steel Model 7B |
1/1.5/2/4/6/8/10 MM |
0.412 kg |
The thickness can be produced as per clients' requirement | ||
