Home > Manufacturing & Processing Machinery > Rubber Machinery > Rubber Product Making Machinery > Narrow Ribbon Loom

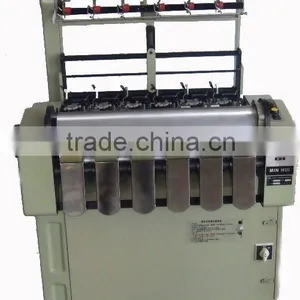

Narrow Ribbon Loom

Name: Narrow Ribbon Loom
Brand: GINYI
SKU: 111356313

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Fujian, China

Brand Name:

GINYI

Contact Supplier Request Quote Chat Now

Xiamen Ginyi Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Fujian, China

Brand Name GINYI

Model Number GNN 6/55

Voltage 320V-480V

Power(W) 1.5KW

Weight 800

Dimension(L*W*H) 180CM*115CM*155CM

Certification IEC

Warranty 1year

After-sales Service Provided Overseas service center available

narrow ribbon loom

narrow ribbon loom, can make the tape from mini width to 220cm width.

GNN needle loom is with stable quality, low noise, durable working.It supply customer high economic efficiency.

These series needle loom is used to make kinds of elastic and un elastic tapes. As ribbon, webbing, shoe lace, carpet tape, underware band, seat belt and so on.

Automatic lubrication device and automatic tension feeding system provide effective control over high quality fabric while saving time and labor for the user.

Drive belt and change gear to perform stabilized transmission of bottom weft and provide wider range of fabrics which be more superior in quality.

Convertible machine parts supported with various devices to provide wider range of fabrics multi-purpose for single machine as well.

Heald frame in double-load, double-shedding lever, twin pattern chain transmission configuration of shaft and gear has been reinforced. (8/45,4/65, 6/55)

Specifications.

MODEL	GNN-10/30	GNN-8/45	GNN-6/55	GNN-4/65	GNN-4/80	GNN-2/110
BELT NUMBERS	10	8	6	4	4	2
REED WIDTH(mm)	30	45	55	65	80	110
HEALD FRAME	8	8	8	8	8	8
PICK REPEAT	8-48	8-48	8-48	8-48	8-48	8-48
H.P. MOTOR	1.5	1.5	1.5	1.5	1.5	1.5
MAX.SPEED R.P.M	800-1300	800-1300	800-1300	800-1300	800-1300	800-1300
