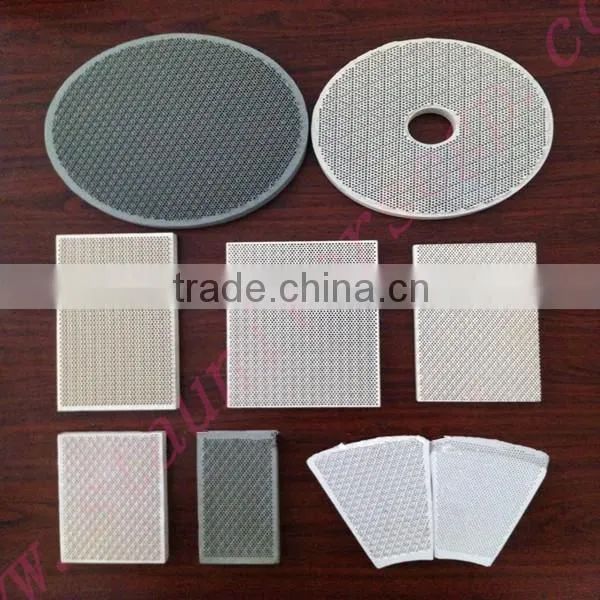

STA honeycomb Cordierite ceramic plate
The gas combustion is occurred inside the holes of the China cordierite plate; and the heat energy is radiated high-efficiently in the means of ultra-red rays, avoiding energy loss through visible light. For the advantages of high combustion efficiency, well distributed heating and low exhaust gas emission, Ceramic Combustion Plate is proved to be an environmentally friendly heating technology, and it is the idea technology to replace the traditional gas combustion technology.
Features of Cordierite ceramic plate
1. Fired through middle temperature
2. High strength
3. Good thermal shock stability
4. Anti-acid/alkali
5. Anti-corrosion
Technical data of Cordierite plate
Item |
Test Condition |
Unit&Symbol |
Cordierite ceramics |
The main chemical ingredient |
|
|
2MgO 2Al2O3 5SiO2 |
Bulk Density |
|
gm/cc |
2.5 |
Maximum Use Temperature |
|
|
1000°C |
Water absorption |
|
% |
0 |
Hardness |
|
HV |
800 |
Bending Strength |
20° C |
Kgf/cm2 |
900 |
Compressive Strength |
20° C |
Kgf/cm2 |
3500 |
Fracture Toughness |
K(I c) |
Map.m3/2 |
- |
|
Coefficient of thermal expansion |
|
1X 10-6/°C |
≤2.0 |
|
Coefficient of thermal conductivity |
25° C-30° C |
W/m °K |
1.3- |
Thermal Shock Resistance |
Tc |
°C |
250 |
Dielectric constant |
1MHz.25°C |
|
6 |
Dielectric strength |
|
ac-kV/mm (ac V/mil) |
10 |
Volume Resistivity |
20°C |
ohm-cm |
> 1012 |
Application:
1. Gas stove / cooker /Roaster
2. Gas room heater
3. Barbecue furnace
4. Industrial baking equipment
Guarantee of the sellers:
♥ If the product you receive is not as described or low quality, the seller promises that you may return it before order completion and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
♥ N.B.: If the seller provides the “Longer Protection” service on this product, you may ask for refund up to 15 days after order completion.
