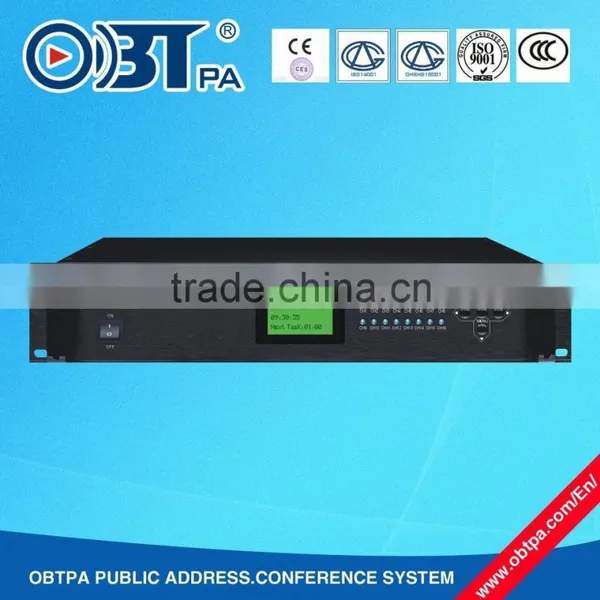

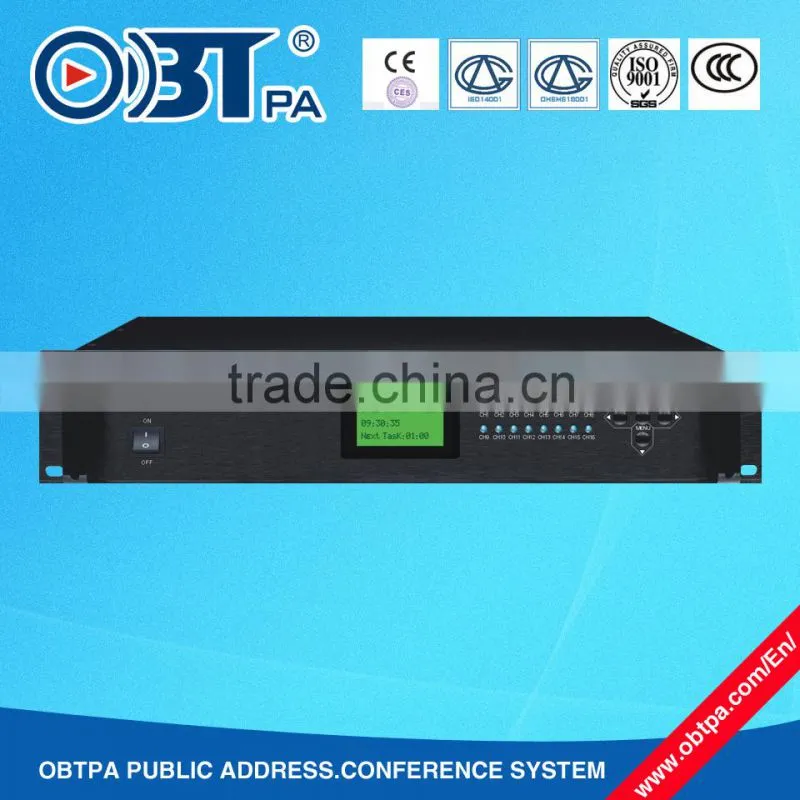

OBT-9100 220V Programmable digital timer,16 devices can be attached for PA system
Application:
Used for every public place: Shopping center, School, Airport, Raillway stataion, Building, Mining pool,
Residential area, highway, toll plaza,Factory,Supermarket,Parking,Stadium,Mountain etc.
Features:
1. Standard Rack Design (2U),black brushed aluminumfaceplate, humane pumping hands, sophisticated technology, filling the high-gradetemperament;
2. Large LCD display,graphical interface, easy to operate;
3. Program won’t lost when the power is cut off, run automatically once the power is on again ,
4. Sixteen editable timing control power, the whole power can reach 6KVA, four kinds ofpower-on mode;
5. a short circuit trigger output interface, you can control sixteen power timing switches, extend regular power socket;
6. Big storage capacity, can be multi-step programming timing control power;
7. 0V trigger 16 channels all on Power, 0V is controlled by the central controller OBT-9000 and OBT-9300USB , achieve automatic control;
8. Fire 0V/24Vtrigger 16 channels all on Power ;
Technical parameters:
Model |
OBT-9100 |
Time Format |
24 hours |
Fir Control Voltage Input |
1 channel 24V |
Upper Control Voltage Input |
1 short circuit signal(0V) |
Power Control Voltage Input |
1 short circuit signal(0V) |
Power Supply |
~220V/50Hz |
Programmable Output Quantity |
16 channels |
Output Power Consumption |
Total Power Consumption≤40KW,Single Channel Power Consumption≤20KW |
Power Consumption |
60W |
Standby Power Consumption |
10W |
Protection |
AC FUSE×1A |
Dimensions |
525×475×170mm |
Weight |
7.5Kg |
Lead time:
Sample: In stock
Mass production: 5 working days
Company Pictures 1 for office:
Company Pictures 2 for workshop:
Certification 1 for License and Pantents:
Certification 2 for Products:
Real Projects Connection Diagram:
