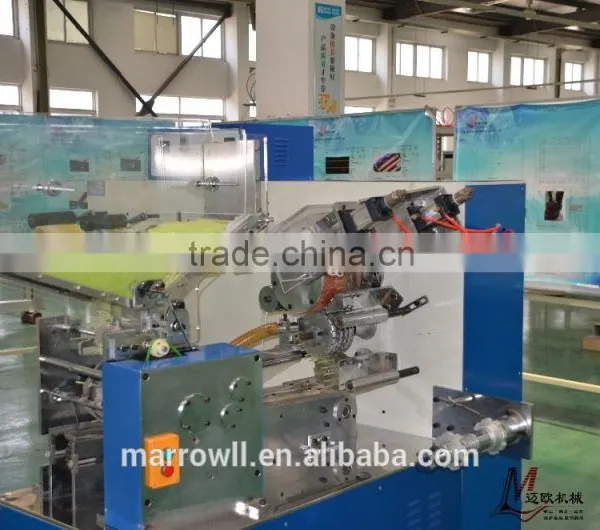

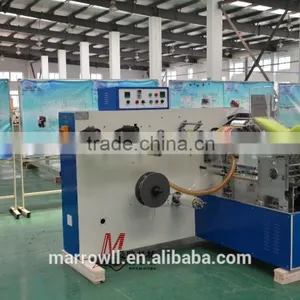

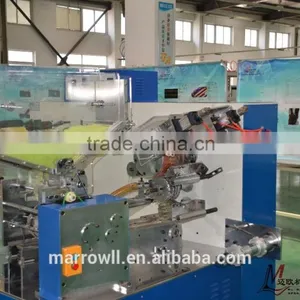

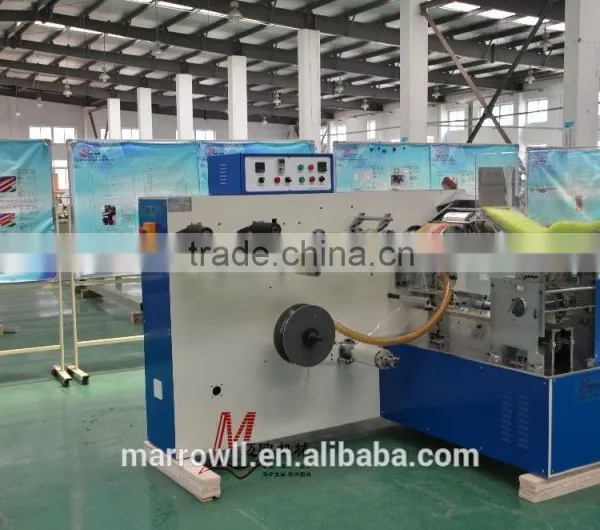

ML33 U SHAPE STRAW PACKING MACHINE
DESCRIPTION:

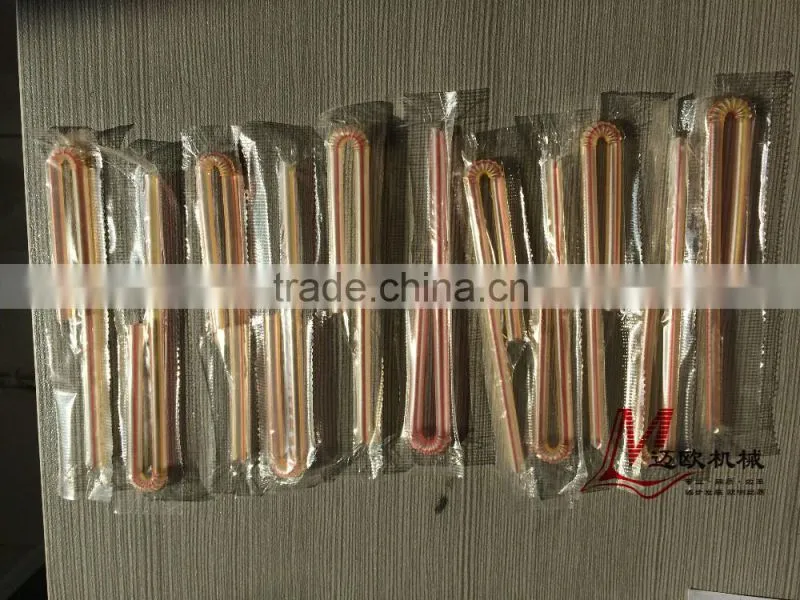

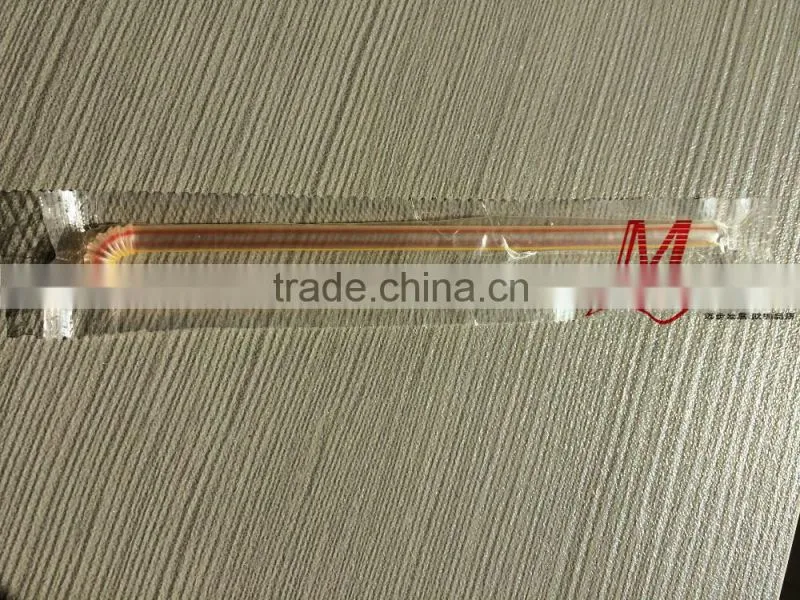

Model ML33 U shape straw packing machine is a machine that can bend flexible straws into U-shape and auto packing them into bags.
The machine is composed of driving motor, driven system, thin film rolling device, hopper, straw filling device, sealing device, it not only makes your straw packing operation easier, but also provides you with a high reliability.
TECHNICAL FEATURE:
- Single flexible straw packing,bending, filling&packing at a time,
- Automatic product counting,
- Packing speed can be adjusted freely,
- Special urgency safety buttons,
SPECIFICATIONS:
Capability |
600~800pcs/min |
|
Main motor |
2.2 kW (VFD) |
|
Vacuum motor |
0.75kW |
|
Flotsam motor |
0.37kW |
|
Heating power |
1.5kW |
|
Wrapping material |
BOPP film |
|
Width of film |
95~160mm |
|
Thickness of film |
0.018~0.022mm |
|
Specifications of straw |
Diameter of straw |
φ4mm |
Thickness of straw |
0.18~0.20mm |
|
Length of U-shape model |
90mm/105mm/128mm |
|
Machine weight |
2000KG |
|
Dimension |
1900mmW)×2000mm (L) |
|
Other specifications are customizable | ||
