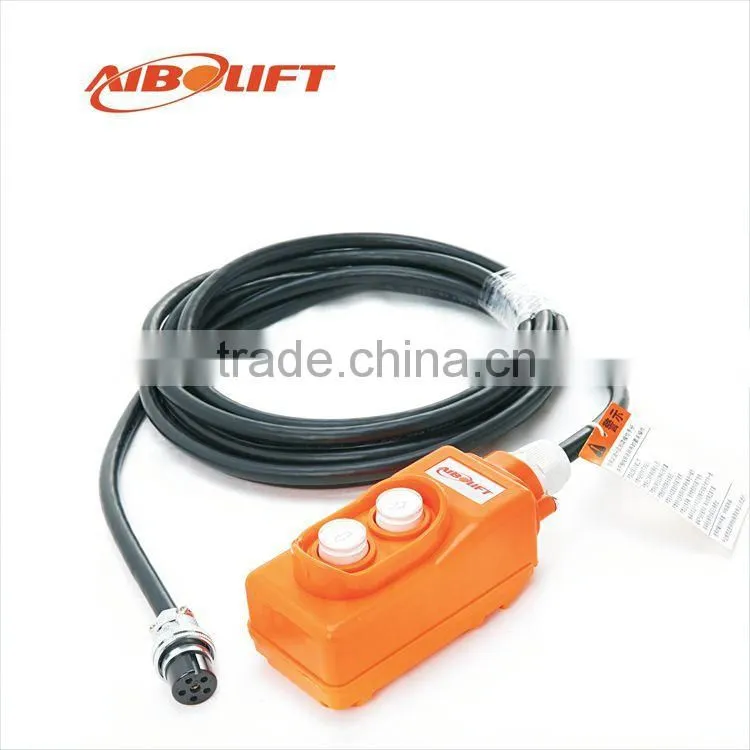

electric power source small hoist home use with pendant switch
The wire rope hoist can lift up to 180kg, 30M, and is easy to install, with a simple control pad.

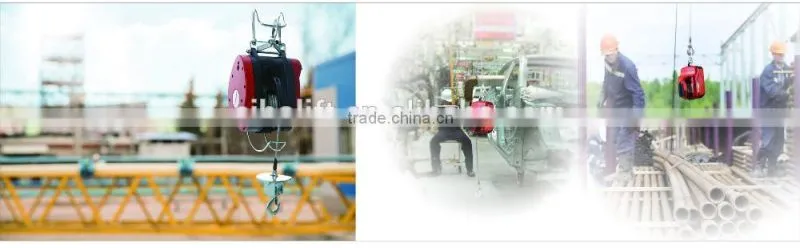

It can hoist at up to 12m per minute and is made of durable steel, making it a reliable and sturdy piece of equipment. This easily portable unit is also designed for multiple story construction work sites and long-lift applications for loads.
Powerful and reliable, this electric hoist is a great choice for any workshop or garage.
ATX-250A, Cap.250kg is also available.
Model |
ATX-180A |
Color |
Red, or according to requirement of order |
Load |
180KG |
Wire rope dimension |
4mm*30m |
Speed |
12m/min |
Voltage |
AC 100-240V/50/60HZ |
Power Source |
1200W |
Lift Height |
30M |
Temperature Protect |
Yes |
Net Weight |
18.5kg |
Packing Dimension |
477mmX265mmX280mm |
Certification |
CE, ISO9001 |
Features
——Unique design and elegant shape makes the job of lifting or pulling materials, machine etc so
much easier and safer.
——Suspending style with protection hook, high tensile alloy galvanized wire rope ensures easy
installation and safe working.
——Strength Al-alloy shell makes it weight light, stand wear and tear.
——Temperature protection system extend a longer service life.
——Dual braking system and upper limit switch, provide a double protection, making it safer and
more reliable.
——All gears are made from high quality Alloy steel with hard surface, allowing it to work in a
sealed oil bath for a long time.
Experienced but Keep Original
Over 23 years in hardware manufacture and continue developing new styles in electric hoist and winch.
OEM is available due to skilled engineers and trained staffs.
Cost Down, Quality Up
Independently manufacture and export by us that will help you cost saving and more competitive in the market.
Only suppliers with good fame will we select to cooperate from raw material to packing. Mature management ensures a smooth production.
These build up our confidence.
Service within 24 hours
We promise to feedback within 24 hours from Monday to Saturday.
