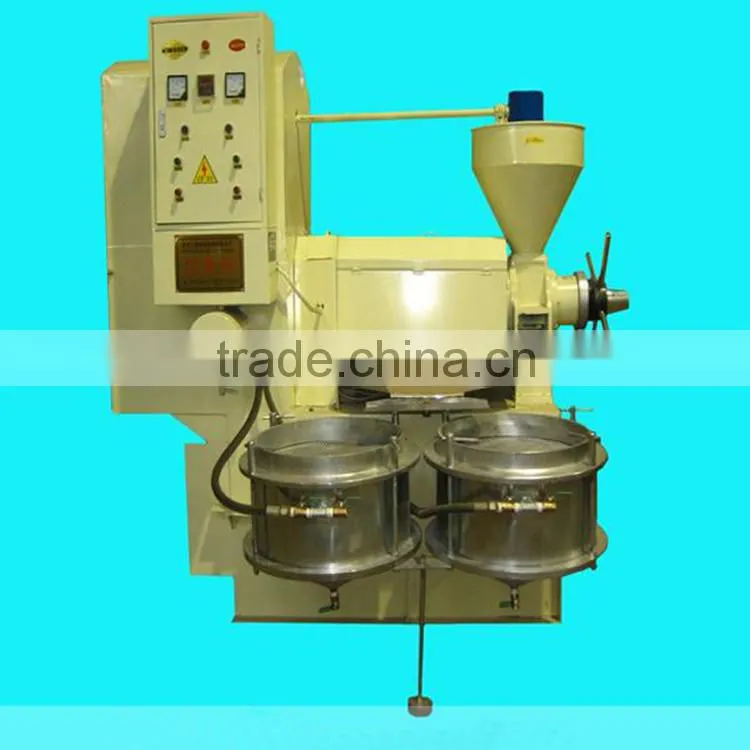

Help Center200TPD Farm Machinery Palm Kernel Oil Expeller With Turnkey Plant
Related Products
-
300TPD Equipments Producing Machine Presse a Huile d Arachide From Huatai FactoryUS$ 50 - 5,000MOQ: 1 Set -
300TPDagriculture Equipment Cold Press Oil Extraction Machine With CE, SGS, ISO9001, BVUS$ 1 - 500,000MOQ: 1 Set
-
300TPD Cheap Machine Palm Oil Press Machine From China HenanUS$ 50 - 5,000MOQ: 1 Set
-
100TPD Processing Machinery of Edible Oil Refineries From Huatai BrandUS$ 1 - 500,000MOQ: 1 Set
-
300TPD Iso Certified Palm Oil Equipment From China HenanUS$ 50 - 5,000MOQ: 1 Set
Raw materials available for palm kernel oil expeller
Parameters of different kinds palm kernel oil expeller
Parameters |
6YL-80 |
6YL-100 |
6YL-120 |
6YL-130 |
6YL-160 |
Speed of press screw |
30-45r/m |
30-40r/m |
30-40r/m |
28-40r/m |
28-40r/m |
Boundary dimension |
1650*1150*1750 |
1950*1300*1900 |
2050*1350*2000 |
2200*1600*2150 |
2500*1600*2500 |
Handling capacity |
80-150kg/h |
150-250kg/h |
200-300kg/h |
250-400kg/h |
400-600kg/h |
Weight |
760kg |
950kg |
1100kg |
1300kg |
2000kg |
Working Principle of palm kernel oil expeller
1. When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2. Under high temperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3. On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4. Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
5. Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.
6. Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.

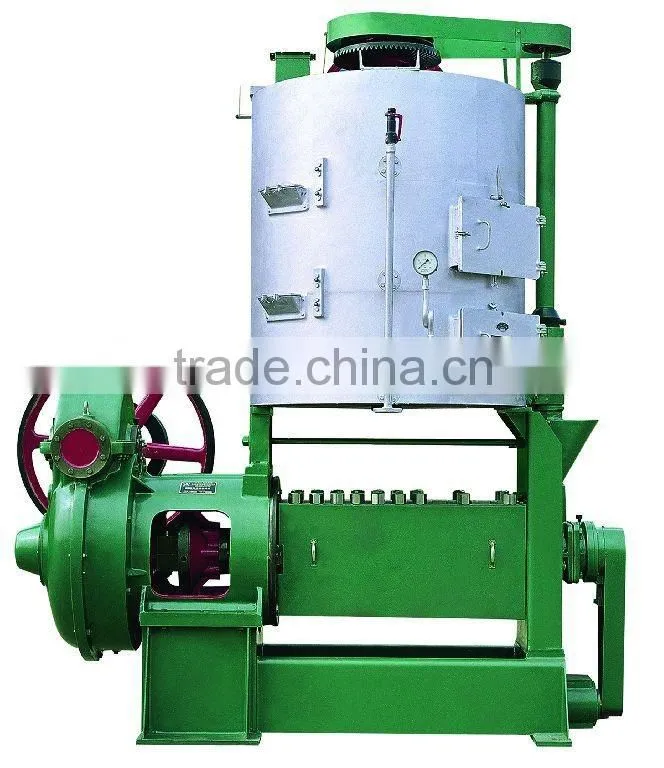

Different kinds of palm kernel oil expeller
