Screw Thread Rolling Machine
US$ 9,300 - 9,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
screw thread
Production Capacity:
high efficiency
Payment & Shipping
Payment Methods:
Port of Shipment:
qing dao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Low Noise Thread Rolling Machine Made in ChinaUS$ 23,000 - 24,000MOQ: 1 Set -
Factory Price Thread Rolling MachineUS$ 5,300 - 5,800MOQ: 1 Set
-
High Speed Low Noise Spline Rolling Machine Made in ChinaUS$ 34,000 - 35,000MOQ: 1 Set
-
2014 NEW Thread Rolling MachineUS$ 30,000 - 35,000MOQ: 1 Set
-
HIgh Speed Thread Rolling MachineUS$ 9,300 - 9,800MOQ: 1 Set
Condition
New
Application
screw thread
Production Capacity
high efficiency
Place of Origin
Shandong, China
Brand Name
KING POWER
Model Number
KP-ZPA28-32
Voltage
according to customer' requirment
Power(W)
14.2kw
Dimension(L*W*H)
1600x1680x1650mm
Weight
4080kg
Certification
CE
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas

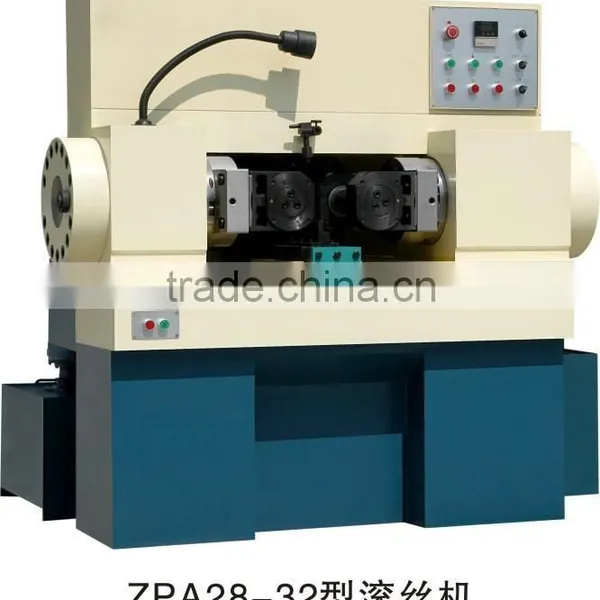

ZPA28-32 Thread Rolling Machine | ||||
Max. rolling pressure |
KN |
320 |
||
Rolling thread range |
Max. diameter |
Radial feed |
mm |
90 |
|
|
Axial feed |
mm |
50 |
|
Max. pitch |
Radial feed |
mm |
6 |
|
|
Axial feed |
mm |
8 |
Rolling die range |
Max. outer diameter |
mm |
220 |
|
|
Aperture |
mm |
75 |
|
|
Max. width |
mm |
180 |
|
Max. center distance btw. main axis |
mm |
300 |
||
Main axis rotation |
r.p.m. |
16.21.27.37.46.62 |
||
Main axis inclination |
|
±5° |
||
Feed travel |
mm |
0-16 |
||
Center height |
mm |
950 |
||
Gross power |
KW |
14.2 |
||
Dimensions (L×W×H) |
mm |
1600×1680×1650 |
||
Packing dimensions (L×W×H) |
mm |
2250×2000×1900 |
||
Weight |
Kg |
4080 |
||
