Specifications
Metal spot laser welding machine for advertising CNC router 1.laser welding machine2.high quality
3.reasonable price
CE
Metal spot laser welding machine for advertising CNC router

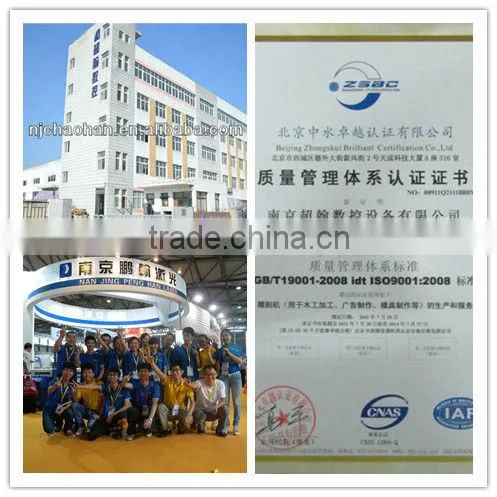

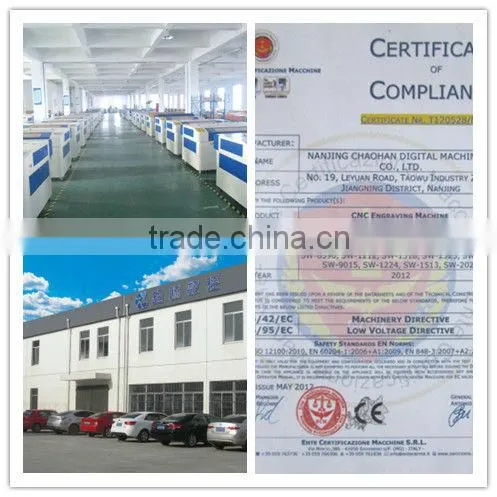

Factory and Exhibition:
Metal spot laser welding machine for advertising CNC router
Machine data:
Machine parts |
Optical bench extension 750mm.rotary 90°C |
X,Y.Z working process |
750*1000mm |
Table bearing limit |
≤200KGS |
Voltage supply |
220V±10%/50/60HZ or 380V ±10%/50/60HZ |
Model Nd |
YAG impulsive lamp |
Spot adjust range |
0.1~0.3mm |
Spot range |
0.2-3.0mm |
Laser wave length |
1064mm |
Pulse width |
≤15m/S |
Max laser power |
200W |
Pulse frequency |
≤15HZ |
Laser output focus |
110mm/150mm(optional) |
Laser cooling system |
Water cooling |
Observation system |
CCD or microscope |
Up and down process |
300mm |
Horizontal process |
200mm |

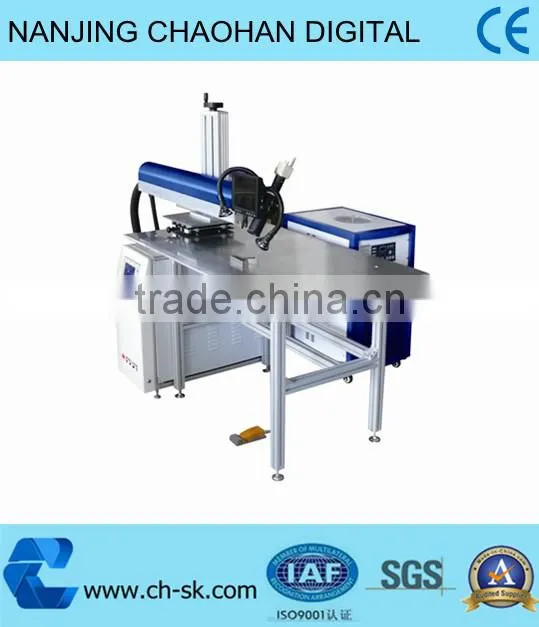

Metal spot laser welding machine for advertising CNC router
machine pictures:
Metal spot laser welding machine for advertising CNC router
features and applications:
1.Red light can automatically rapid check the welding point ,observing directly through the CCD or alter microscope.
2.According to your needs to change the working table to meet the different kinds of letters.
3.Fast speed processing ,professional fixed-focus clamp ,rapid testing the welding point by automatic focus without CCD and Microscope.
4.Little temperature distortion and themomechanical effect.
5.It also can be used for the local heat treatment of the metal letters.
6.Complicated pattern and components and small words processing.
7.Without noise and pollution when processing.
8.With the superfine locating rod inside ,the light -spot doesn’t need to adjust its positions in the turning points of the characters.
Metal spot laser welding machine for advertising CNC router

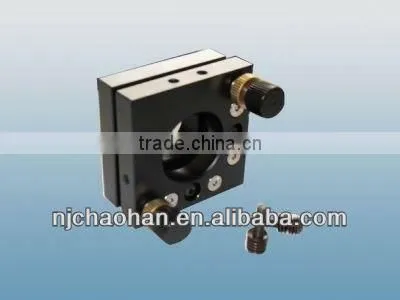

machine components:

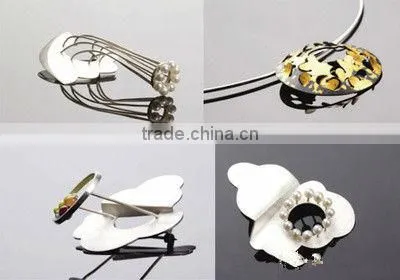

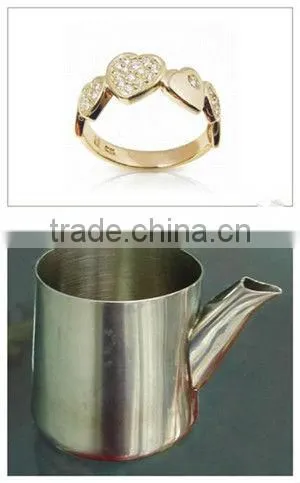

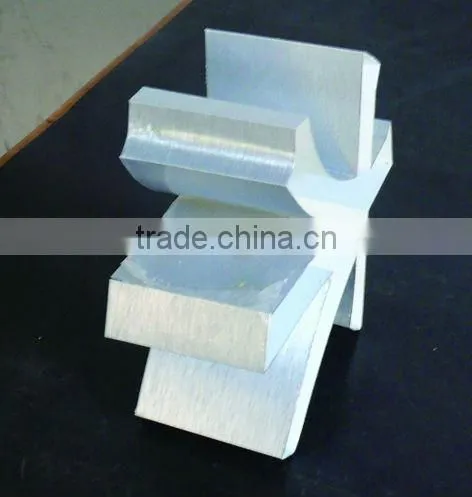

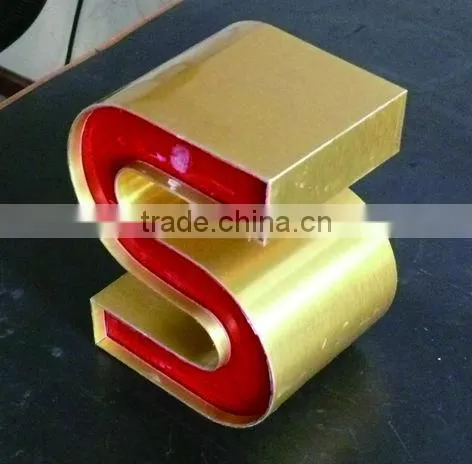

samples:
our advantages:
Metal spot laser welding machine for advertising CNC router
| Low MOQ | It can meet you promotional business very well |
| OEM accepted | We can produced the machine as your required |
| Good service | We treat our customers as friends |
| Company history | More than 12 years experience,so we can make sure the quality and the price is very satisiefied. |
| Fast&cheap delivery | We have a long cooperation and big discount from forwarder,we can make sure the fees and the delivery tme . |
Our team-service for you!
If you are not sure which machine to choose ,please tell me following information,I will recommend a suitable machine for you:
*What's the material you want to used ,mainly for cutting or engraving?
*The mateial size (length*width*thickness)?
