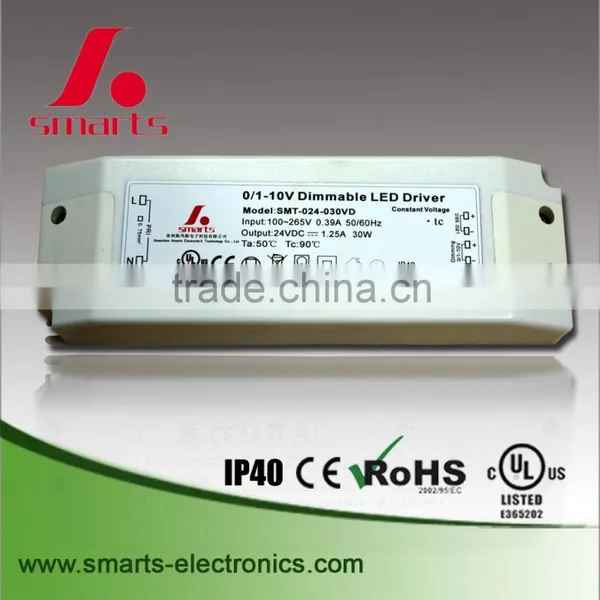

0-10V/PWM Dimmable LED Driver:24vDC @1250mA 30w
Description:
- Dimming type: 0-10v/pwm constant voltage
- Output: 24vDC @1250mA 30w
- RippleI & Noise (max.) : 150mVp-p
- Voltage Tolerance : ±5%
- Line Regulation : ±1%
- Load Regulation : ±2%
- Setup, Rise Time : 500ms, 120ms / 230VAC
- Efficiency: >86%
- PFC: >0.90
- Size: 140*45*28mm
- Net weight: 160g/pc
- Case material: Plastic
- Waterproof rate: IP40
- CE,UL,ROHS approval
- Warranty: 3 years
Features:
- Cooling by nature
- 100% full load burn-in test
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Passed high, low temperature and waterproof testing.
- Integrity protection,over loading, over voltage ,over current.
- 8Hrs and 100% full load burn-in test.
Environment:
- Working Temperature : -40 ~ +60°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety:
- Safety Standards :EN61347-1 EN1347-2-13
- Withstand Voltage : I/P-O/P: 3.75KVAC
- Isolation Resistance : I/P-O/P:100MΩ/500VDC/25°C/70%RH
- EMC EMISSION: Compliance to EN55015, EN61000-3-2(>=50%load)
- EMC IMMUNITY: EN61000-4-2,3,4,5,611(Surge 4KV)
Product Parameters:
| Item No. |
input voltage (vAC) |
Working Frequency (Hz) |
Output voltage (vDC) |
Output Current |
power (Watt) |
Working Temp. |
IP rate |
| SMT-024-080VD |
100-265vA | 47~63Hz | 24V | 0-6660mA | 80W | -25~50°C | IP67 |
| SMT-024-060VD | 100-265vAC | 47~63Hz | 24V | 0-2500mA | 60W | -25~50°C | IP67 |
| SMT-024-030VD | 100-265vAC |
47~63Hz |
24V | 1250mA |
30W | -25~50°C |
IP40 |
| SMT-024-100VD |
100-265vAC /170-375V |
47~63Hz |
24V | 0-4100mA | 100W | -25~50°C |
IP67 |
Applications:
Our products are widely used in various industries, such as
- Indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights,
- Controller Panels, etc.
|
Constant Voltage/Current LED Driver
|
Enclosure Power Supplies
|
Wall-Mount/Desktop Type Power Adapter
|
|
0-10v/PWM Dimmable Constant Current LED Driver
|
Triac Dimming Constant Voltage LED Driver
|
DALI Dimmable Constant Current LED Driver
|
Packaging:
- Inner box: white box
- Outer carton: standard exporting carton for packing
Shipping:
- Samples: FedEx, DHL, UPS or TNT ;
- Batch Goods: By Air or By Sea for FCL;
- Customers Specifying Freight Forwarders or Negotiable Shipping Methods;
♦ We are UL/cUL audited LED drivers/power supplies enterprise in China.
♦ Alibaba assessed Gold Supplier and more than 10 years LED industrial experience.
It will guarantee your order 100% safe!
♦ Price is negotiable if you have large quantity demand.
♦ 100% QC inspection Before Shipping.
♦ Best Quality & Best Service with Competitive price.
♦ Shipping will be the most economical for you and freight cost is informed in advance
for your consideration. Shipping terms will be made according to your requirements.
♦ We have our engineer team, if you have any question about your LED applications,
let us know freely, we will give you the best solution.
♦ Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
♦ OEM design & OEM packing welcome.
♦ Samples will be ready within 7 working days.
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes the concerned topic.....The detail, view website:
Certifications:
• CE • UL/CUL • ROHS
Factory & Equipments View:
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future.
