Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver

ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver

ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver thumbnail-1
ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver thumbnail-2
ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver thumbnail-3
ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver thumbnail-4
ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver thumbnail-5
ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver thumbnail-6
ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver photo-1
ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver photo-2

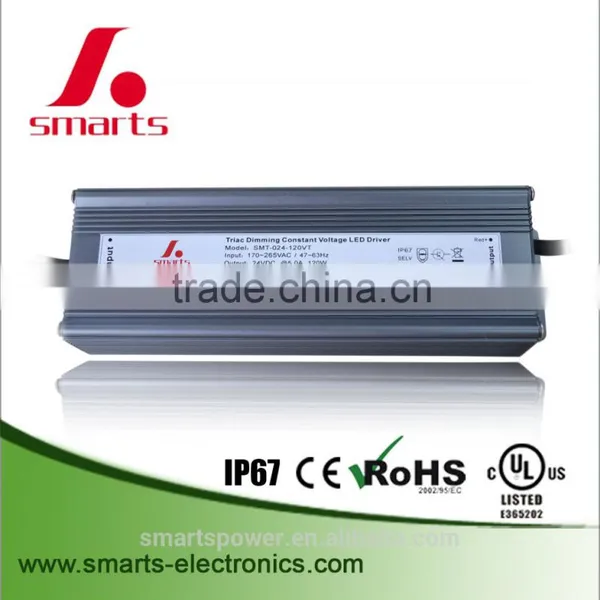

ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver photo-3

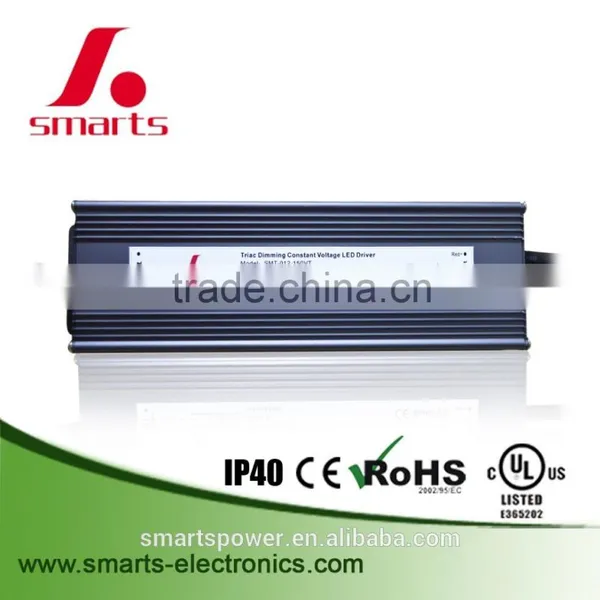

ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver photo-4

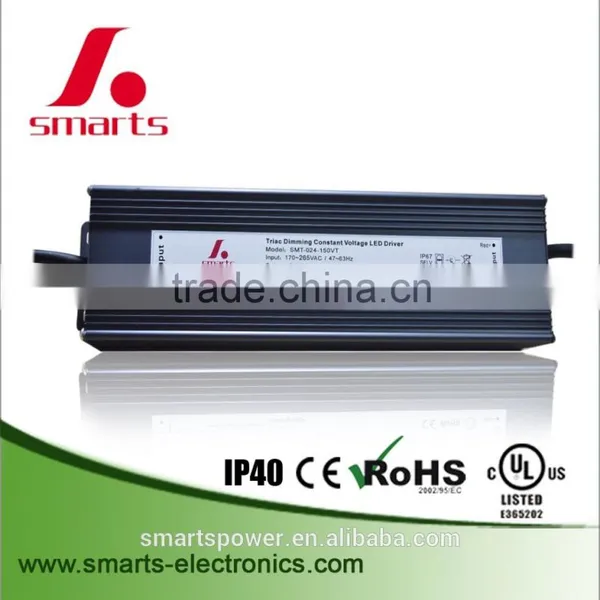

ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver photo-5
ce ul Listed Led Driver 12v 200W Triac Dimmable Led Driver photo-6
US$ 38 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-012-200VT
Contact Supplier Request Quote Chat Now
Quanzhou Smarts Electronic & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name SMARTS
Model Number SMT-012-200VT
Output Power Other, 200W
Output Type Single
Input Voltage Other, 90-135vAC/170-265vAC
Output Voltage 12V
Output Frequency 47-63HZ
Output Current 16.66A

ce ul listed led driver 12v 200W triac dimmable led driver



Product Description



  Model



  Specification

SMT-012-200VT

SMT-024-200VT

SMT-036-200VT

SMT-048-200VT

  AC input voltage

90~135VAC/170~265VAC

  Frequency range

47~63Hz

  DC output voltage

12VDC

24VDC

36VDC

48VDC

  Rated current

16.67A

8.33A

5.56A

4.16A

  rated power

200W

 200W

200W

200W

  voltage tolerance

 +/-0.5V

+/-0.5V

+/-0.5V

 +/-0.5V

  AC current(Typ.)

 1.78A

1.76A

1.76A

 1.74A

  Leakage current

 <0.70mA/110VAC,  <0.65mA/220VAC

  Power factor(typ.)

 PF >0.73/110VAC, >0.76/220VAC

  Inrush current(Typ.)

 Cold start 50A/220VAC

  Full load  Efficiency(Typ.)

 Efficency>87%

  Working mode

 Triac dimming constant voltage type

  Outer case & IP rate

 Aluminum,  IP67

  Net weight

 1.8kg

  Size

 226.5*77.5*47mm

  Packaging

 440*295*145mm/8 pieces in one carton

Protection
  1. Protections: Short circuit / Overload  / Over current
  2. Short Circuit: Hiccup mode, recovers automatically after fault condition is removed.
  3. Overload : <=120%
  4. Over Current : <=1.4*I out

Features
  1.  Cooling by nature.
  2. 100% full load burn-in test
  3. High reliability designing solution
  4. High efficiency,save energy ,protected environment
  5. High stability and low ripple, increase light efficiency
  6. And decrease light attenuation.
  7. Meet to safety standard and EMC.
  8. Assure LED stability long lift and light efficiency by constant voltage.
  9. Passed high ,low temperature and waterproof testing.
  10. Integrity protection,over loading, over voltage ,over current.
  11. 8Hrs and 100% full load burn-in test.

Environment
  1. Working Temperature : -40 ~ +60°C
  2. Working Humidity : 20 ~ 90% RH non-condensing
  3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  4. nefficient: +-0.03%°C(0~50°C)
  5. Vibration: 10~500Hz 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

Safety & EMC
  • Safety Standards : EN61347-1  EN61347-2-13
  • Withstand Voltage : I/P-O/P: 3.75KVAC
  • Isolation resistance: I/P-O/P:100M/500VDC/25°C/70%RH
  • EMC EMISSION: Compliance to EN55015, EN61000-3-2(>=50%load)
  • EMC IMMUNITY: EN61000-4-2,3,4,5,611 (Surge 4KV)

Certificates

 CE(EMC+LVD), ROHS

Application



 Our products are widely used in various industries, such as

  • Indoor LED illuminating lights,
  • LED Neon,
  • LED urban Decoration
  • LED Lighting Advertising,
  • LED Display,
  • Safety Protection Apparatus,
  • Telecommunications,
  • Networks,
  • Vehicle Lights, Controller Panels, etc.

Notes
  1. All parameters NOT specially mentioned are measured at 110V & 220VAC input, rated load and 25 of ambient temperature.
  2. Tolerance:includes set us tolerance, line reguation and load regulation.



ce ul listed led driver 12v 200W triac dimmable led driver

Detailed Images

ce ul listed led driver 12v 200W triac dimmable led driver


Related Products

Constant Voltage/Current

LED Driver

ce ul listed led driver 12v 200W triac dimmable led driver

Enclosure Power Supplies



ce ul listed led driver 12v 200W triac dimmable led driver

Wall-Mount/Desktop Type Power Adapter

ce ul listed led driver 12v 200W triac dimmable led driver



0-10v/PWM Dimmable Constant

Current LED Driver



ce ul listed led driver 12v 200W triac dimmable led driver

Triac Dimming Constant Voltage

 LED Driver



ce ul listed led driver 12v 200W triac dimmable led driver

DALI Dimmable Constant

Current LED Driver



ce ul listed led driver 12v 200W triac dimmable led driver
Packaging & Shipping

Packaging:

  • Inner box: white box
  • Outer carton:  standard exporting carton for packing

ce ul listed led driver 12v 200W triac dimmable led driver

Shipping:

  • Samples: FedEx, DHL, UPS or TNT ;
  • Batch Goods: By Air or By Sea  for FCL;
  • Customers Specifying Freight Forwarders or Negotiable Shipping Methods;

ce ul listed led driver 12v 200W triac dimmable led driver



Our Services

♦  We are UL/cUL audited LED drivers/power supplies enterprise in China.

♦  Alibaba assessed Gold Supplier and more than 10 years LED industrial experience.

    It will guarantee your order 100% safe!

♦  Price is negotiable if you have large quantity demand.

♦  100% QC inspection Before Shipping.

♦  Best Quality & Best Service with Competitive price.

♦  Shipping will be the most economical for you and freight cost is informed in advance

     for your consideration. Shipping terms will be made according to your requirements.

♦  We have our engineer team, if you have any question about your LED applications,

     let  us know freely, we will give you the best solution.

♦  Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.

♦  OEM design & OEM packing welcome.

♦  Samples will be ready within 7 working days.

Company Information

 Quanzhou Smarts Electronic & Technology Co.,Ltd  (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes the concerned topic.....The detail, view  website:

ce ul listed led driver 12v 200W triac dimmable led driver



 Certifications:

• CE    • UL/CUL   • ROHS

ce ul listed led driver 12v 200W triac dimmable led driver

 Factory & Equipments View:

ce ul listed led driver 12v 200W triac dimmable led driver

FAQ

Q1.            What's type power supply do you have?

Answer:     We specialized in constant voltage & current LED drivers,

                  0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters



Q2.             What's shipping mode can we choose?

Answer:      1.FedEx/DHL/UPS/TNT/Express for samples;

                   2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

                   3. Customers specifying freight forwarders or negotiable shipping method



Q3.             What's the MOQ?

Answer:      Our MOQ is 500pcs, but we accept your trail order/small order, no problem.



Q4.             What can you do if the product is broken?

Answer:      We promise to replace new ones to you if there is any defective happen

                   during the warranty period, but we need pictures or video to prove the defective

                   comes from our quality problem



Q5.             How about the protection of product?

Answer:      Most of our products have protection of short-circuit. overload,
                   over voltage, over current and reserve polarity. About the specific product,

                   please consult our salesstuff.



Q6.              How about the transportation?

Answer:       For small order,express will be best.And for bulk order,sea ship way is best but take much time.

                    For urgent orders,we suggest via air to airport plus our ship partner send to your door.

                    We will cooperate with your choice.



Q7.              What's the Payment do you have?

Answer:       To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,

                    WESTERN UNION, PAYPAL. More payment options will be added in the near future.





ce ul listed led driver 12v 200W triac dimmable led driver
