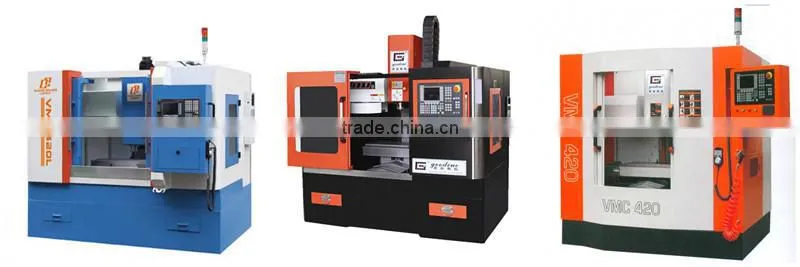

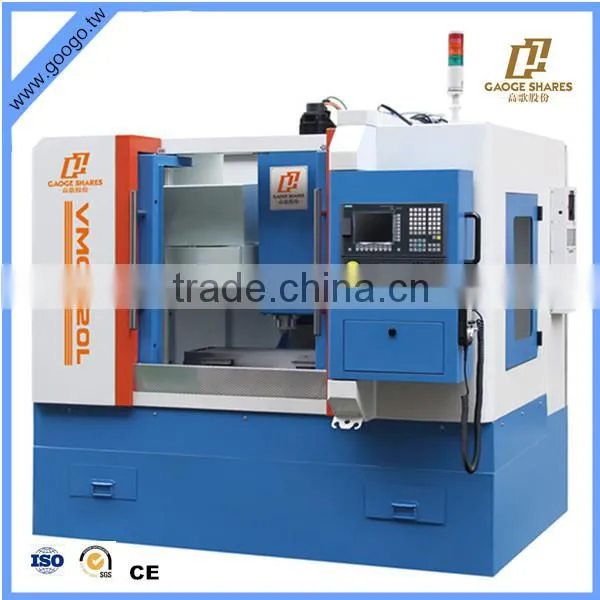

for education or training xyz travel 3 axis cnc belt drive spindle machine
NO. |
ITEM |
Specification |
|||||
1 |
Table size L(mm)×W(mm) |
800×260 |
|||||
2 |
T slot QTY /width/interval distance(mm) |
5-16-50 |
|||||
3 |
Maximum load(KG) |
150 |
|||||
4 |
X travel (mm) |
420 |
|||||
5 |
Y travel (mm) |
270 |
|||||
6 |
Z travel (mm) |
410 |
|||||
7 |
Spindle nose to table (mm) |
70-480 |
|||||
8 |
Spindle center to column (mm) |
315 |
|||||
9 |
Spindle taper |
BT30 |
|||||
10 |
Max. spindle speed (Rpm) |
6000 or 8000 |
|||||
11 |
Main motor (kW) |
2.2 |
|||||
|
12
|
Feed motor
|
X torque(N.M) |
4 |
||||
Y torque(N.M) |
5 |
||||||
Ztorque(N.M) |
6 |
||||||
Max.install size |
XY |
Square 110×11diameter φ95 |
|||||
Z |
Square 130×130diameterφ110 |
||||||
13 |
Rapid moving speed (m/min.) |
10 |
|||||
14 |
Cutting speed (mm/min) |
1-4000 |
|||||
15 |
Ball screw (diametermm/pitch )mm |
XY |
20/5 |
||||
Z |
25/5 |
||||||
16 |
Linear guide way width( mm) |
XY |
20 |
||||
Z |
25 |
||||||
17 |
Accuracy
|
Positioning accuracy (mm) |
0.016 |
||||
Repeatability accuracy (mm) |
0.008 |
||||||
18 |
Tool changer |
Funnel type (optional ) BT30 |
10 or 8 |
||||
Tool changing time (s) |
Funnel type |
8 |
|||||
19 |
Air pressure Mpa |
0.6 |
|||||
20 |
Machine weight (kg) |
Frame |
800 |
||||
Complete machine |
1300 |
||||||
21 |
Machine overall size L(mm)×W(mm)×H(mm) |
Frame |
830×1000×1800 |
||||
Complete machine |
1900×1400×2100
|
||||||

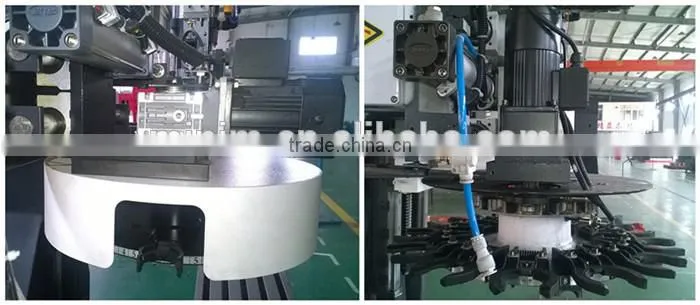

12 tools funnel type tool changer | |
Max diameter of tools(interval) |
φ80/φ120mm |
Max length of tools |
200mm |
Max weight of tools |
4kg |
16 tools arm type tool changer | |
Max diameter of tools |
φ80 |
Max length of tools |
250mm |
Max weight of tools |
8KG |
Ball screw |
|
X –axis ball screw |
2005/P3 |
Y –axis ball screw |
2005/P3 |
Z –axis ball screw |
2505/P3 |
Linear guide way | |
Width of linear guide way |
XY 20mm Z 25mm |

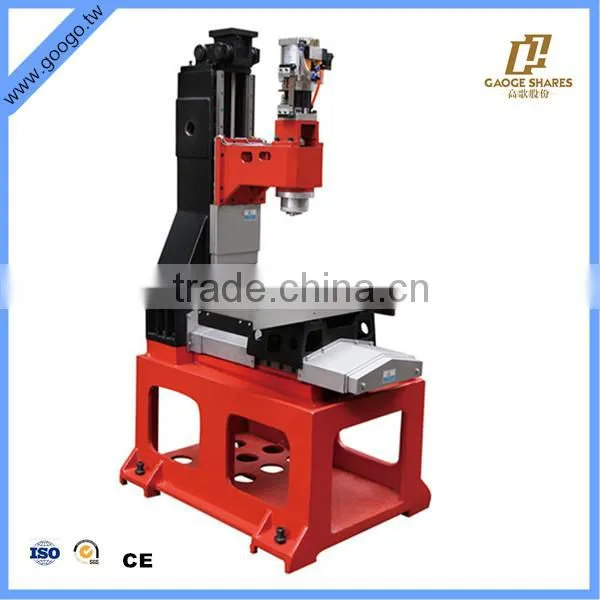

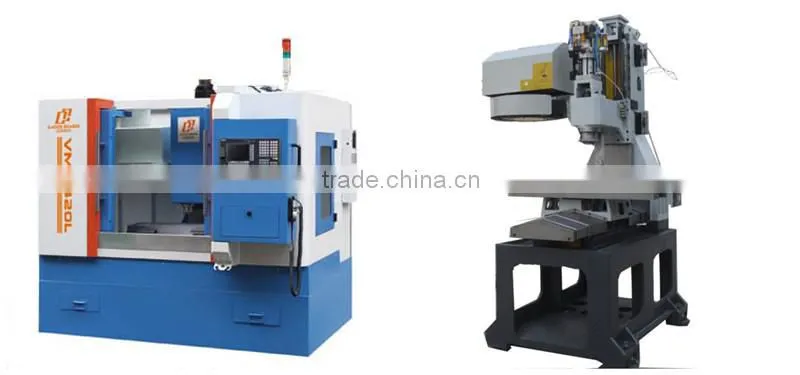

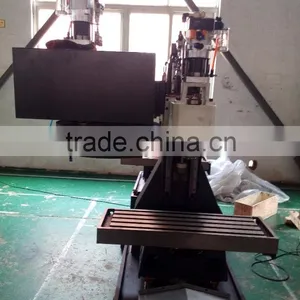

Frames |
|
Frames |
HT250 cast iron |

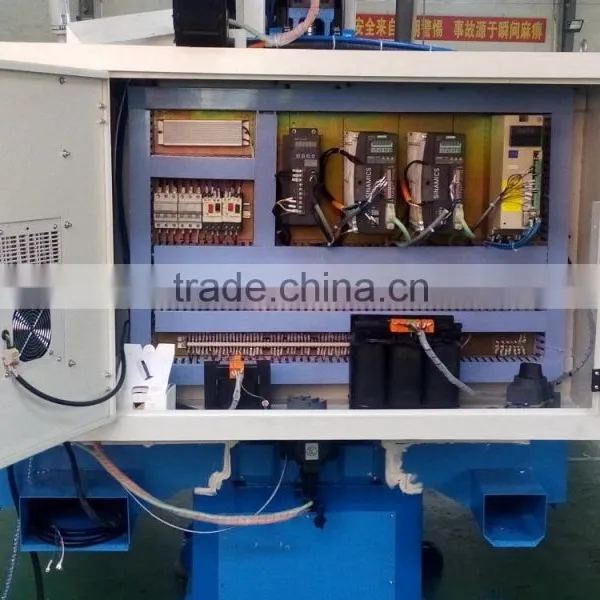

controller system |
|
tank volume |
100L |
Cooling pump power |
180W |
Others |
|
Auto lubricant |
Included |
Extra tool holders to suit ATC |
Included |
Chip conveyor |
Not |
ridged tapping |
Can |
We will supply enough spare parts and accessories with our machine when shipment. Within one year after receiving
our machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail FREE OF CHARGE.
We will provide GOOD After-sellingService for our clients after shipment. It's basis of establishing long-term cooperation
with our foreign clients.

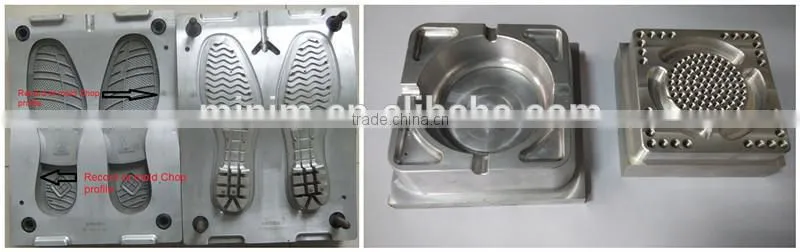

(1).X,Y axis adopt linear rail in 20mm width Z axis 25mm so as to ensure processing rigidity.
(2).High speed, high precision spindle 8000rpm.
(3) Cooling system adopt water pump in big flow and high head so as to ensure enough cooling
under cutting in high speed.
standard apart :
Linear Guideway
10 tools funeal type tool magazine
BT30 Max. Spindle Speed 8000RPM
Automatic Lubrication Unit
Coolant Supply System
Electric Handwheel
optional apart :
4th axis of CNC control system ( Dividing head or Rotary working table )
We will supply enough spare parts and accessories with our machine when shipment. Within one year after receiving
our machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail FREE OF CHARGE.
We will provide GOOD After-sellingService for our clients after shipment. It's basis of establishing long-term cooperation
with our foreign clients.
1 Anticorrosive oil and transparent plastic cover shell
2 The metal tray and Non-fumigation wooden case
3 packing size: 2100* 1660 * 2300 mm
We sincerely welcome you to visit our factory!
Any further information,please feel free to contact us!
Your inquiry are sure to get our best and prompt attention
