Vertical CNC Milling Machine Frame VMC650L Machine Body

Name: Vertical CNC Milling Machine Frame VMC650L Machine Body
Brand: Good
SKU: 111607011

US$ 1 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Good

Tengzhou City Good CNC Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Good

Model Number VMC650L frame

Type Vertical

CNC or Not CNC

Voltage 380v/220v

Dimension(L*W*H) 2100*1500*2000mm

Weight 2.8T

Certification ISO9000

Warranty 12months

After-sales Service Provided Engineers available to service machinery overseas

vertical CNC milling machine frame VMC650L machine body

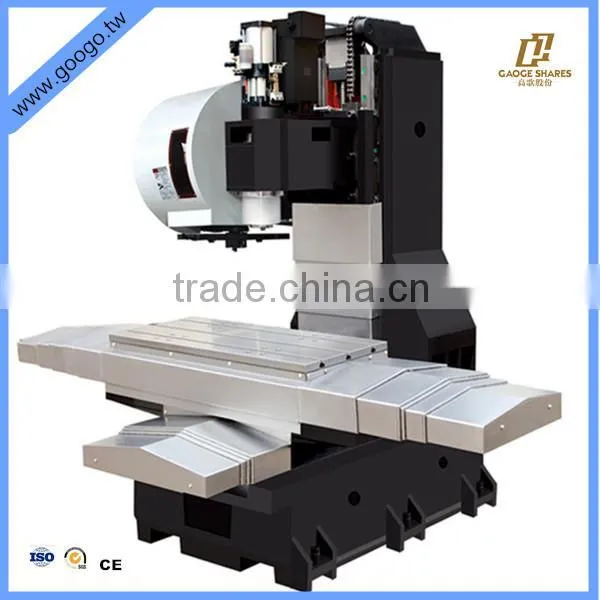

Product picture:

Main parameters:

NO.	ITEM				Specification
1	Table size L(mm)×W(mm)				900×360
2	T slot QTY /width/interval distance(mm)				3-14-120
3	Maximum load(KG)				400
4	X travel (mm)				650
5	Y travel (mm)				380
6	Z travel (mm)				480
7	Spindle nose to table (mm)				100-600
8	Spindle center to column (mm)				410
9	Spindle taper				BT40/120
10	Max. spindle speed (Rpm)				8000
11	Main motor (kW)				7.5
12	Feed motor		X torque(N.M)		6
			Y torque(N.M)		7.7
			Ztorque(N.M)		7.7
			Max. install size		7.5
13	Rapid moving speed (m/min.)				12/12/10
14	Cutting speed (mm/min)				1-6000
15	Ball screw (diametermm/pitch )mm				32/10
17	Accuracy	Positioning accuracy (mm)			0.016
		Repeatability accuracy (mm)			0.008
18	Tool changer	Funnel type (optional ) BT40			20
19	Air pressure Mpa				0.6
20	Machine weight (kg)			Frame	2500
				Complete machine	3000
21	Machine overall size : L(mm)×W(mm)×H(mm)			Frame	2200×1550×2000
				Complete machine	2500x2250x2300
