Help CenterCNC Milling Machine
US$ 10,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Good or OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Milling CNC Machine FrameUS$ 10,000 - 20,000MOQ: 1 Yard -
Assurable Quality Cnc Milling Machine Body Without CabinetUS$ 9,800 - 9,800MOQ: 1 Set
-
Directly Factory Exporting Competitive Price Cnc Milling Machine FrameUS$ 9,800 - 9,800MOQ: 1 Set
-
Directly Factory for Exporting Cnc Milling Machine FrameUS$ 9,800 - 9,800MOQ: 1 Set
-
High Speed High Precision China Cnc Milling Machine Frame PriceUS$ 9,800 - 9,800MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
Good or OEM
Model Number
VMC650L
Type
Vertical
CNC or Not
CNC
Specifications

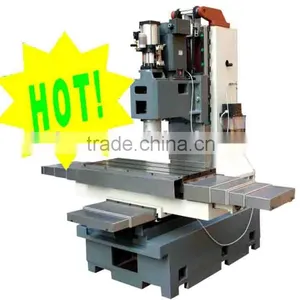

this CNC equipment frame is designed with advanced solutions with resin casting iron body,it is precise and rigid.CNC equipment VMC650L frame
Standard fittings:
Taiwan-made spindle
Highly rigid resin sand casting
Taiwan-made linear guideway
Precise ball screw
Taiwan precise cap nut
Automatic intermittent lubrication system
Adjustable horn
Japan NSK bearing
Parameter:
X,Y,Z travel(mm) |
650×400×500 |
Spindle nose to table(mm) |
100-600 |
Spindel center to column(mm) |
410 |
Table Size(mm2) |
900×360 |
Maximum load(KG) |
500 |
T slot QTY/ width/center distance (mm) |
3×14×120 |
Taper |
BT40 |
Spindle speed |
8000 |
Main motor (KW) |
5.5 |
X,Y,Z axle motor (Nm) |
8,8,11 |
Contro system(optional) |
FANUC,Siemens,GSK,KND |
Cutting speed(mm/min) |
1-4000 |
Positioning accuracy |
0.02 |
Repeatability accuracy |
0.01 |
Tools changer(optional) |
16 |
Machine weight(ton) |
3 |
Machine dimension(L×W×H mm3) |
2500×2250×2250 |
