Specifications
1.sealing by ultrasonic2.Capability: 30-60bag/min
3.Filling rang:2-10ml
4.PLC controller
Welcome to TIANJIN HAYETODA PACKING MACHINERY CO.,LTD
----------Best Quality ,most competitive price
---------Heartful Service ,Professional Manufacture

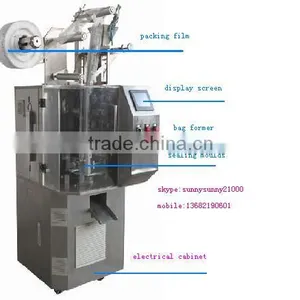

| products name: | Triangle Bag Packing Machine(Ultrasonic sealing) |
| products model: | DXDK-40WZM |
| products Description: | This Triangle Bag Packing Machine can be used in packing tea and etc. |
Specification:
Type | |
DXDK-40WZM | |
Filling Range (ml) |
Packing speed |
<10 |
30-50 |
Packing Size(mm) | |
L:50-120 W:30-80 | |
Modes Of packing | |
Triangle Packing | |
Remarks | |
Stainless Steels With Computer Console | |
Application:
This machine is suitable for automatically packing tea in Triangle bags.
Characters:
1.Using Ultrasonic sealing,can packing teabag with good look.
2.Packaging capacity :3000bags/h (Determined by packing material).
3.Can be used in packing teabag with line label.
4.Cylinder Push-pull material feeding
Sample bag:
sample bag
Serial No. |
Item |
Indicators and notes |
1 |
The production rat |
40-50bas/min |
2 |
Measurement methods |
Skateboard-style volume method |
3 |
Sealing the form |
Seal & cut in three direction by ultrasonic wave |
4 |
Packaging shape |
Glide volumetric metering (standard installment) or load cell weight measurement. |
5 |
Packaging material |
Nylon, polyester mesh, non-woven fabrics, ultrasonic sealing materials. |
6 |
Size of the teabag |
Broach: 50-80mm Even bag: 60-90(W)*40-80(L)mm Use packing material width: 120mm, 140mm, 160mm, and 180mm |
7 |
Machine size |
(W*L*H)700*850*1800mm |
8 |
Volume let diameter |
less 350mm |
9 |
Particle content |
2±0.5g/bag (other specifications can be customized) |
10 |
Rolls diameter paper core |
76mm |
11 |
Built-in electric pressure |
more 0.6Mpa(by the custom side with 3Kw motor, V-0.36/7 to the air compressor) |
12 |
operators |
1 |
13 |
Machine weight |
450Kg |

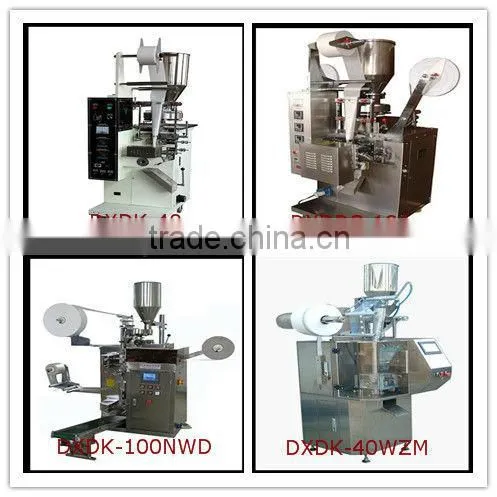

Tea bag packing machine series
DXDK-40 model : single filter bag with no thread and no tag.
DXDDC-10 model :single filter bag with thread .
DXDDC-10A model : single filter bag with thread and tag .
DXDK-100NWA mode : inner filter bag and out plastic bag envelop.
DXDK-100NWD model : inner filter bag and out plastic bag wrapped (inner bag with tag and thread).
DXDK-40WZM model :pyramid tea bag with thread and tag (nylon material, Ultrasonic sealing).
Select the bag sealing way
Delivery
Warranty & Sale after service
Three kinds of guarantee services:
“Guarantee the product quality, Customer supremacy ” is our company objective. Our company insure offer three kinds of guarantee services to all customers as follows:
Maintain Service:
There is one year warranty period after take the delivery from our company . During this period , if there are any stoppages of machine or some assembling , design ,material are damage from us, we will repair them without fee .except the quick-wear parts , manually damage, and inaccurate operate .
Training:
In order to let all customers further understand the performance of packing machine and familiar with the operation procedures. We will irregularly scheduled arrange technical training for our users.
Others here
Payment:T/T only.30% deposit,70% balance before loading.
Offer price term:FOB Xingang, Tianjin
Delivery date:7-15 days after the deposit
Attention please
We design and manufacture custom-made machines based on customer specifications.
Please contact your product specifications.
1. Bag type
2. Bag material
3. Filling product
4. Bag size
5. filling range
6. packaging capacity (speed)
Based on the specification, we will select the optimum machine & options.
For price quote, we need your product specifications.
websit: /
address: Tiande road, Yanji street, Beichen district, Tianjin Tianjin
Tianjin 300400 China
