Fine Wire Drawing Machine Copper Wire Cable Making Equipment Wire Cable Machine

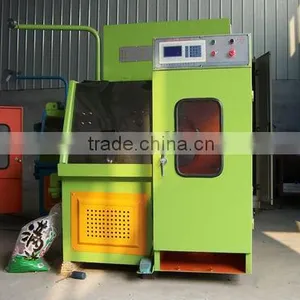

Fine Wire Drawing Machine Copper Wire Cable Making Equipment Wire Cable Machine thumbnail-1
Fine Wire Drawing Machine Copper Wire Cable Making Equipment Wire Cable Machine thumbnail-2
Fine Wire Drawing Machine Copper Wire Cable Making Equipment Wire Cable Machine photo-1

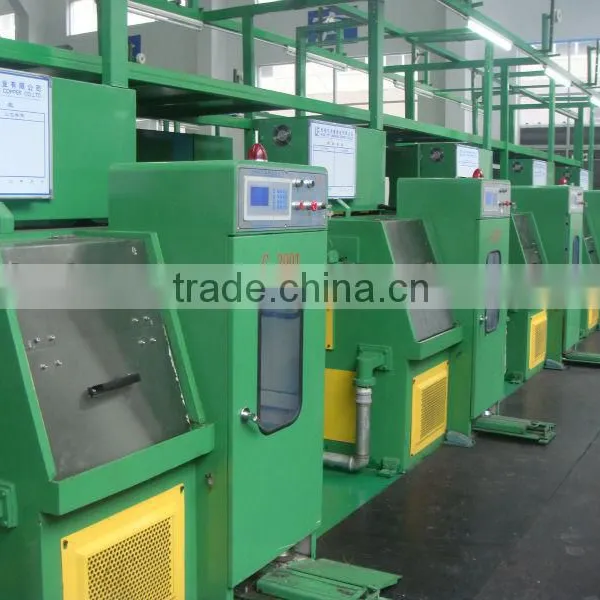

Fine Wire Drawing Machine Copper Wire Cable Making Equipment Wire Cable Machine photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-15D/HT-20D/HT-22D/HT-24D
Certification CE
Warranty 1 year, 1 year
After-sales Service Provided Engineers available to service machinery overseas

Features

. vertical type and horizontal type for customer's option.

.  Dual motors inverter control to reduce slip ratio.

.  High quality flat belts drive;high efficiency;low noise.



Technical specifacations

Items

Specifacation


HT-15D

HT-20D

HT-22D

HT-24D

materials

Cu

Cu

Cu

Cu

Max line speed

25.0m/s

33.0m/s

40.0m/s

40.0m/s

Inlet Diameter

1.20~1.60mm

0.15~0.40mm

0.60~1.2mm

0.50~1.00mm

Outlet range

0.20~0.68mm

0.05~0.12mm

0.10~0.4mm

0.08~0.25mm

Number of dies

Max 15

Max 20

Max 22

Max 24

Capstan diameter

268mm

120mm

207mm

207mm

Final slip ration

0%~2%

0%~2%

0%~2%

0%~2%

Drawing Cones

Sprayed ceramic or tungsten carbide

Tension Control

Weight Balance type

Max Loading capacity

100KG

50KG

60KG

60KG

Bobbins

300/4000MM

300mm

300mm

300mm

Main capacity

24KVA

8KVA

15KVA

15KVA

Machine dimensions

2000*1600*1920mm

1900*1600*1750mm

2050*1600*1920mm

2050*1600*1920mm



 Line Speed

Wire Diameter

(mm)

HT-15D

HT-20D

HT-22D

HT-24D


Hard wire

Hard wire

Hard wire

Hard wire

0.05

/

22.0

/

/

0.08

/

30.0

/

30.0

0.10

/

25.0

32.0

32.0

0.20

20.0

/

36.5

36.5

0.30

22.0

/

26.5

26.5

0.40

16.5

/

21.5

/

0.60

10.0

/

/

/





Please contact us for details.
