Fine Wire Drawing Machine With Online Annealer High Speed Electric Cable Making Equipment

Fine Wire Drawing Machine With Online Annealer High Speed Electric Cable Making Equipment thumbnail-1
Fine Wire Drawing Machine With Online Annealer High Speed Electric Cable Making Equipment photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-14DT
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-14DT
Usage Drawing







Product Description

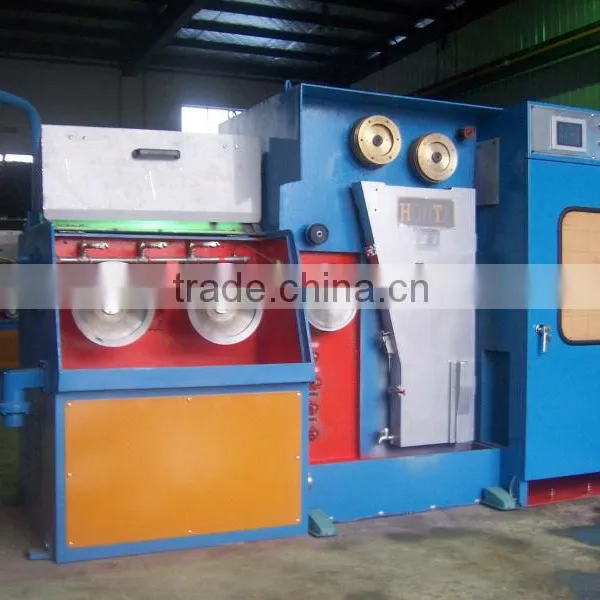

HT-14DT Fine Wires Drawing Machine with Online Annealer

The machine body is made of steel plates by welding, through annealing to eliminate internal stress and then processed by precision milling machine.



Technical data



Wire Diameter :                                0.20~0.6 mm

Maximum Speed :                            1200 m/min

Rated annealing Current :               600 ADC

Max. Annealing Voltage :                 55 VDC

Annealing Capacity :                        30 KVA

Steam Generator Power :                9 Kw

Steam quantity :                              Max.12 kg/h

Compressed Air:

Working pressure :                          0.6 ~ 0.7Mpa

Fluctuating value :                           ±0.02Mpa

Dew point :                                       -25°C

Flow rate :                                       200L/min

Water quality:

Pressure :                                       0.2~0.4Mpa

Temperature :                                 ≤25°C

Hardness of Water for Steam Generator :    Max 5 dH

Hardness of Water for Annealer :                 Max 12 dH

PH Value :                                                    7~8

Flow Rate :                                                   420L/min

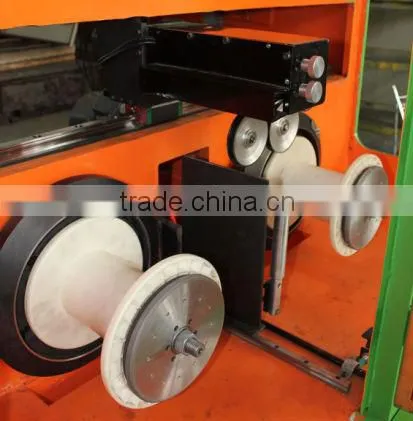

Fine Wire Drawing Machine with Online Annealer high speed electric cable making equipment
