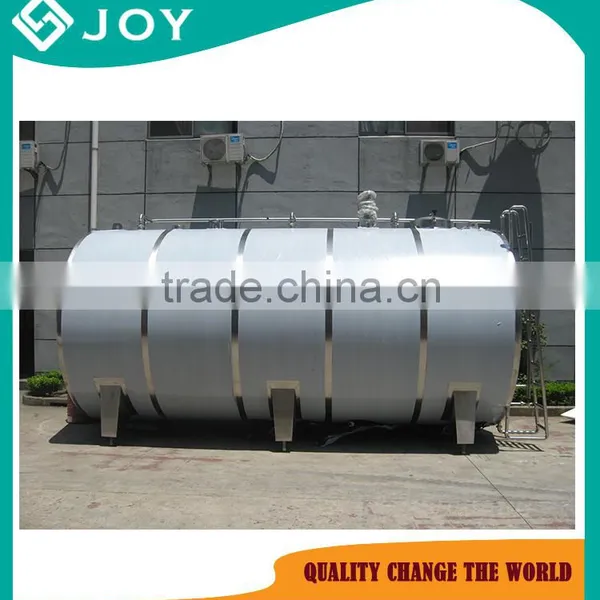

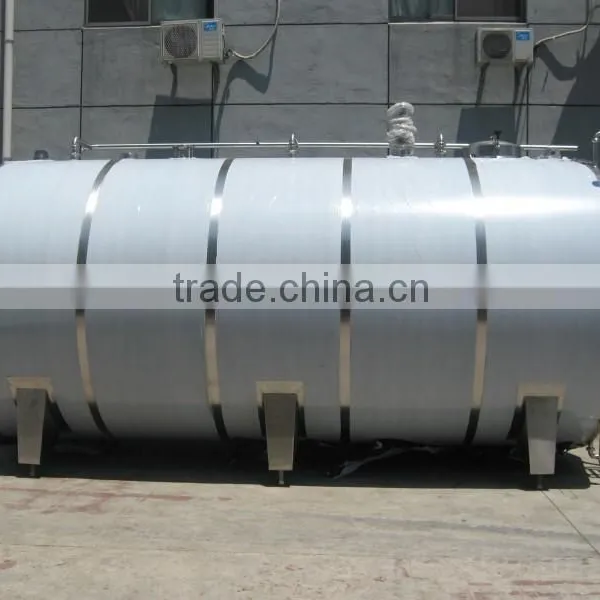

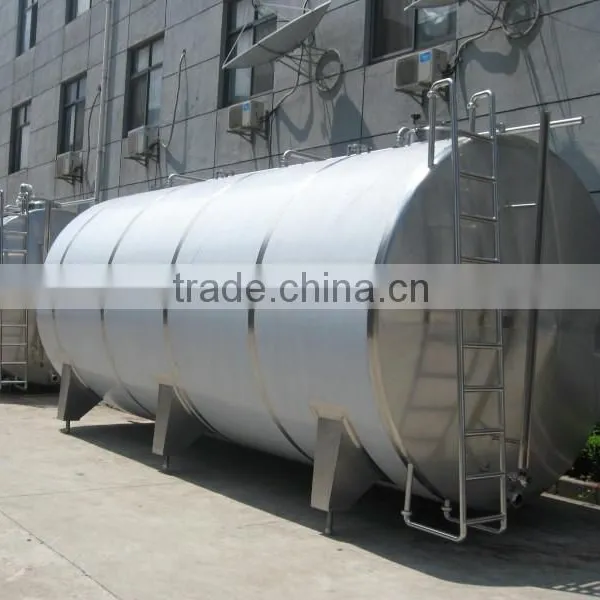

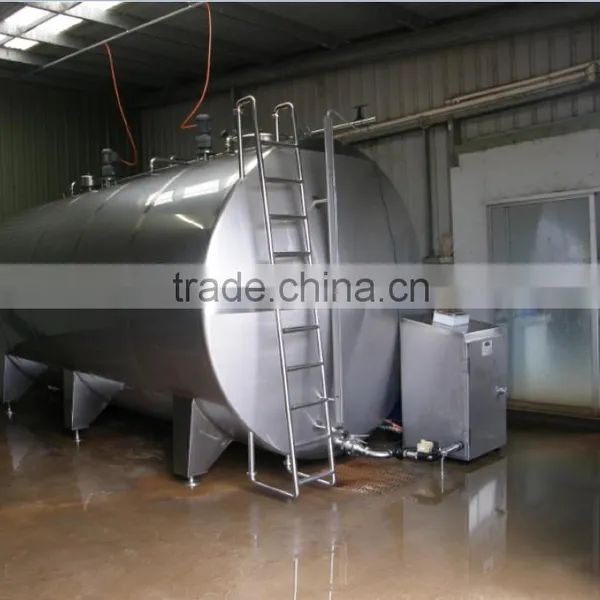

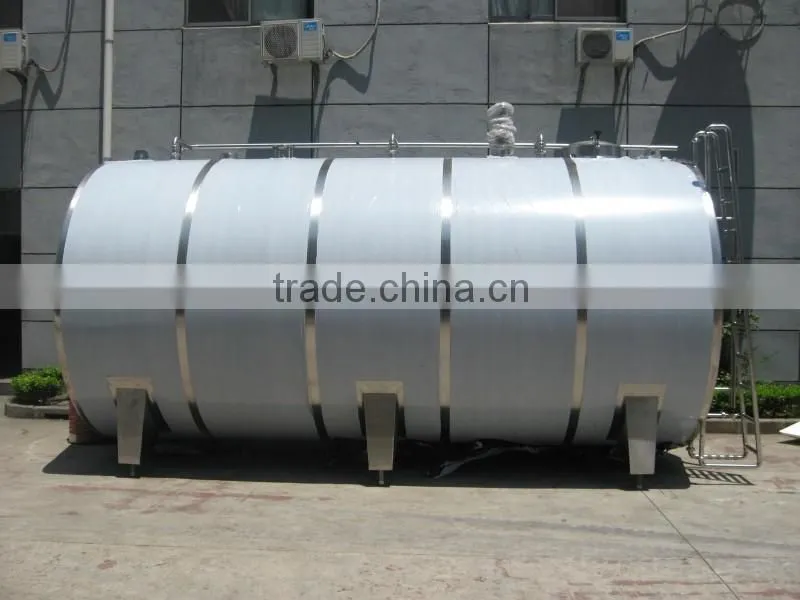

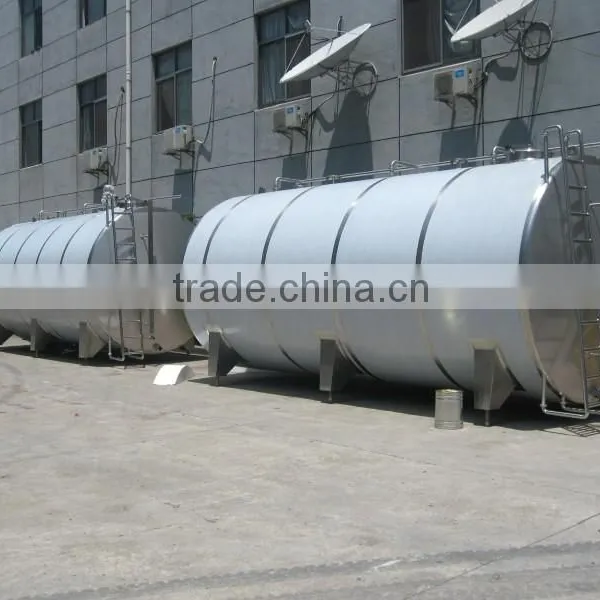

20T horizontal type stainless steel milk storage tank with insulation
Material: all material use high quality SUS304-2B or SUS316L stainless steel, inner shell 3-4mm and outer cladding 2mm and cooling jacket 1.5mm;
Structure: cylindrical shape, conical top cover of 15 degree, with skirt base; with PU(Polyurethane) as heat insulation; with cooling dimple pad at tank wall and base.
Volume range: 15,000L-120,000L
Standard attachments:
a) One airtight side manhole;
b) One side mounted agitator;
c) One PT100 thermometer, temperature range 0~100℃;
d) Two CIP cleaning ball;
e) One aseptic sample valve;
f) Anti butterfly and dirt air vent;
g) Product inlet/outlet;
h) Cooling medium inlet/outlet;
i) Level sensor;
j) Ladder with circle protection and protection fence at tank top.
Most applicable for storage and mixing all kinds of liquid products in dairy products, juice, beer and brew, chemistry, and biology engineering.
