LV power cable
Has a number of advantages over paper insulated and PVC insulated cable. XLPE power cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting anti-chemical corrosions, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Several of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technologies (peroxide, silane and irradiation cross linking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non- halogen and three classes of A, B, C.
Our PVC/XLPE power cable can be manufactured according to companies’ specification which is equivalent to IEC 60502, IEC 60332, and IEC 60754.Some of indexes are superior to above international standard IEC.
Some of special XLPE power cable can be manufactured according to the other standards required by customs.
XLPE power cable having higher long-term working temperature and greater current rating, at the same environment XLPE cable may be reduced size (nominal cross-section) 1or 2 class in comparison with paper and PVC cable. This is not only improving the quality and properties of products, but also reduces cables production costs.
Scope of PVC/XLPE Power Cable
1) Copper (aluminium) cores PVC/ XLPE insulated / PVC(PE) sheathed power cable
2) Copper (aluminium) cores PVC/XLPE insulated /steel tape armored/ PVC ( PE) sheathed power cable
3) Copper (aluminium) cores PVC/XLPE insulated / thin steel wire armored/ PVC ( PE) sheathed power cable
4) Copper (aluminium) cores PVC/XLPE insulated / thick steel wire armored/ PVC (PE) sheathed power cable
Type |
No. of Cores |
Nominal Cross-Section of Conductor(mm2) |
|
VV VV22 VV23 ZR-VV ZR-VV22 ZR-VV23 ... YJV YJLV YJV YJLV YJV22 YJLV22 YJV23 YJLV23 YJV32 YJLV32 YJV33 YJLV33 YJV42 YJLV42 YJV43 YJLV43 ZR-YJV ZR-YJLV ZR-YJY ZR-YJLY ZR-YJV22 ZR-YJLV22 ZR-YJV23 ZR-YJLV23 ZR-YJV32 ZR-YJLV32 ZR-YJV33 ZR-YJLV33 ZR-YJV42 ZR-YJLV42 ZR-YJV43 ZR-YJLV43 |
1 |
1.5--1000 |
|
2 3 4 5 |
1.5--400 |
|
|
3+1 4+1 3+2 |
2.5--400 |

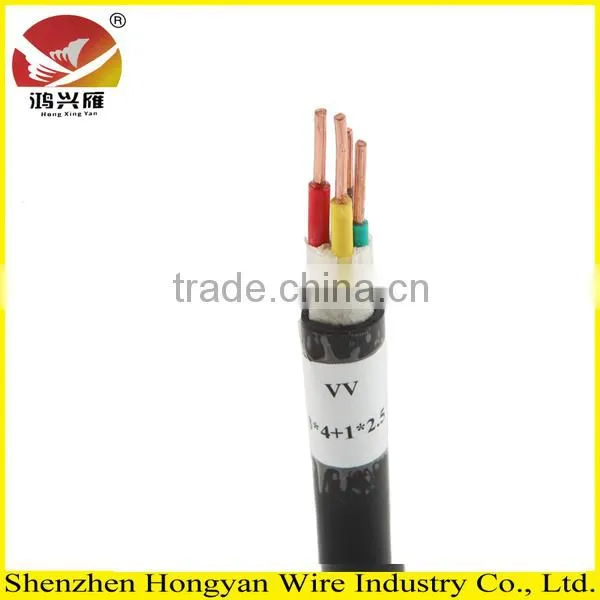

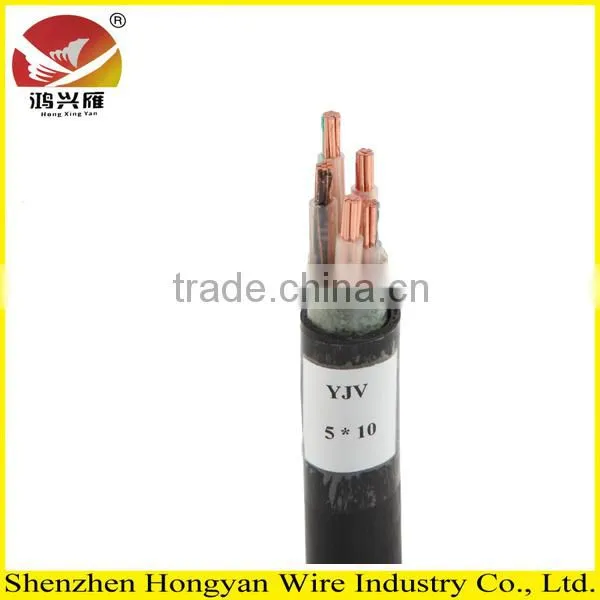

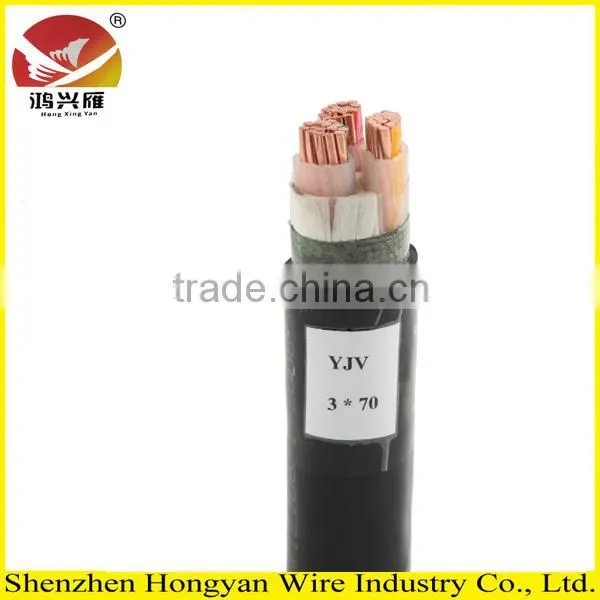

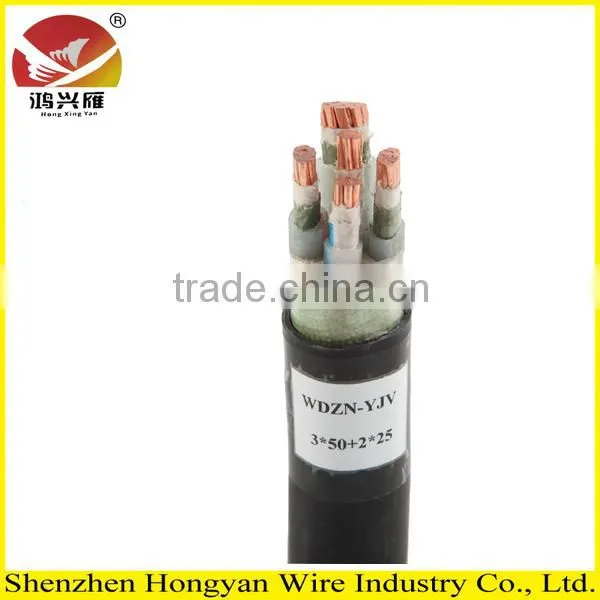

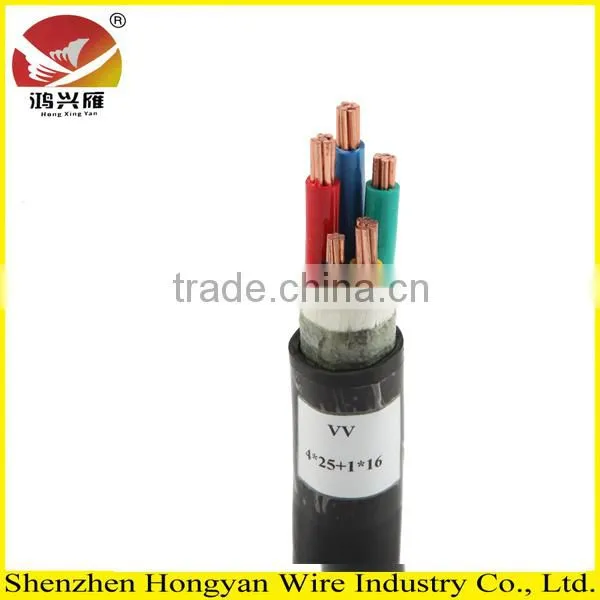

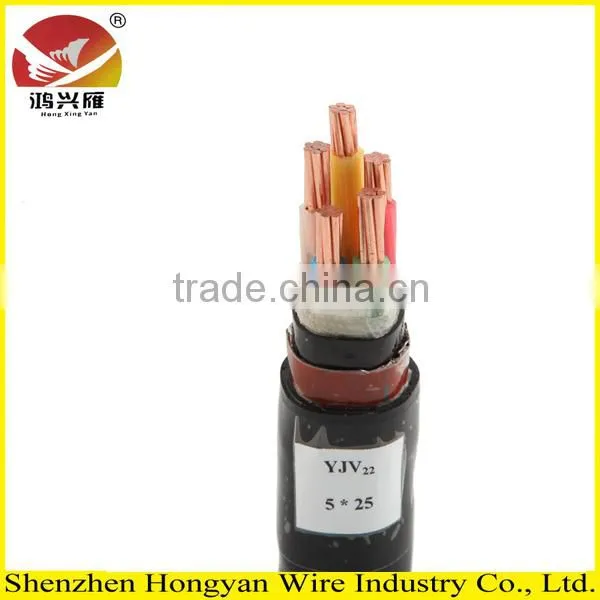

Sample pictures :
Ms Joyce Yin
Shenzhen Hongyan Wire Industry Co.,Ltd.
Add:#1 Building,Nannian Maling Industrial Park, Longgang District, Shenzhen, Guangdong, China
Tel : 0086-755-89611579 , Fax : 0086-755-84801184
Mobile : 0086-18520868290
Skype : joyceyin9
