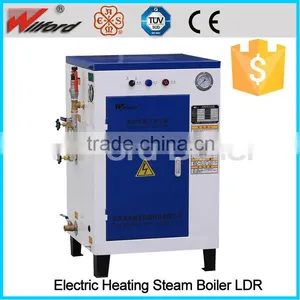

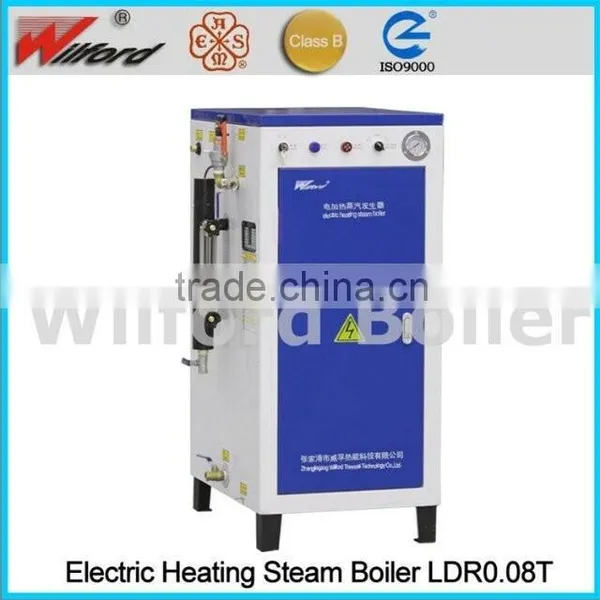

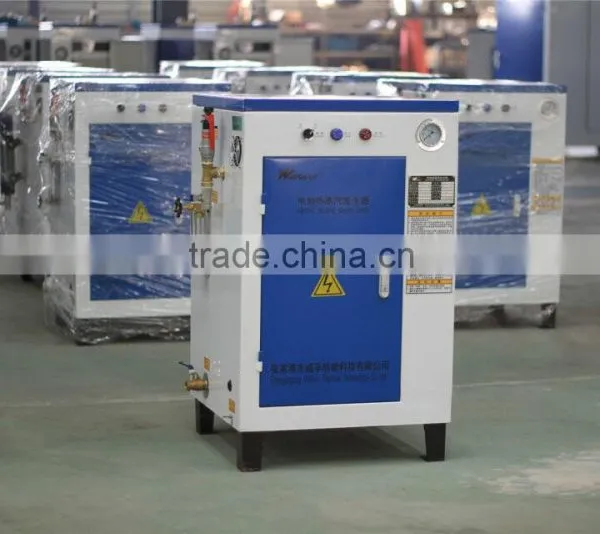

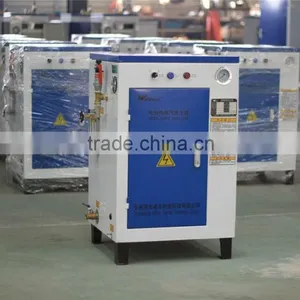

mini generator 9KW 18KW 72KW electric heating steam generator boiler

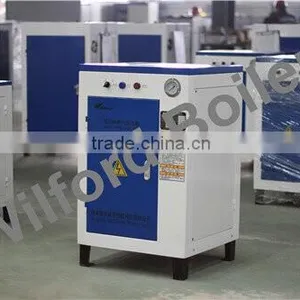

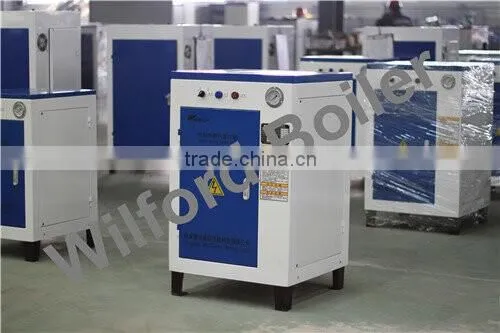

Boilers in the factory
Technical parameters
| Type | LDR0.012-0.7 | LDR0.016-0.7 | LDR0.025-0.7 | LDR0.035-0.7 | LDR0.05-0.7 | LDR0.08-0.7 | LDR0.1-0.7 | |
| rated evaporation | kg/h | 12 | 16 | 25 | 35 | 50 | 80 | 100 |
| rated working pressure | Mpa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| staturated steam temperature | °C | 170 | 170 | 170 | 170 | 170 | 170 | 170 |
| input power | KW | 9 | 12 | 18 | 24 | 36 | 54 | 72 |
| input current | A | 14 | 18 | 27 | 36 | 54 | 81 | 108 |
| rated pressure | V | 3N AC 50Hz 380V | ||||||
| main steam valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 25 |
| safety valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 25 |
| infall diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| sewage valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| length | mm | 600 | 600 | 680 | 680 | 680 | 620 | 750 |
| width | mm | 540 | 540 | 600 | 600 | 600 | 680 | 660 |
| height | mm | 780 | 830 | 920 | 990 | 1060 | 1180 | 1450 |
| weight | kg | 86 | 95 | 105 | 115 | 130 | 160 | 245 |

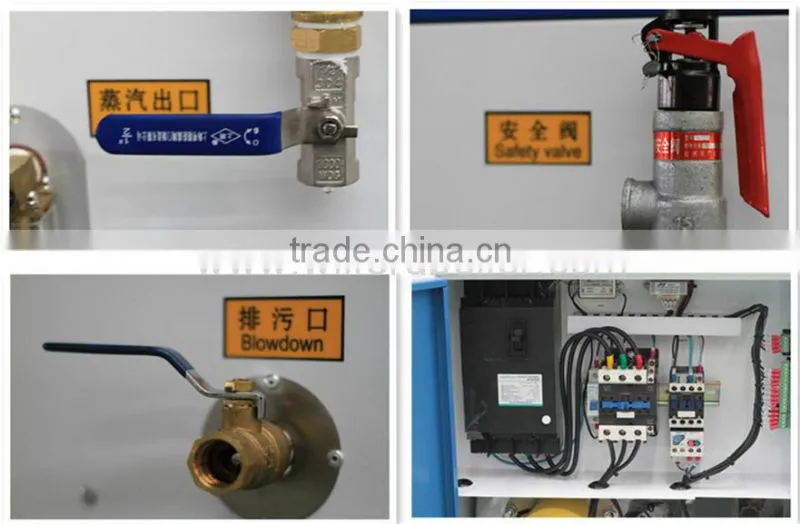

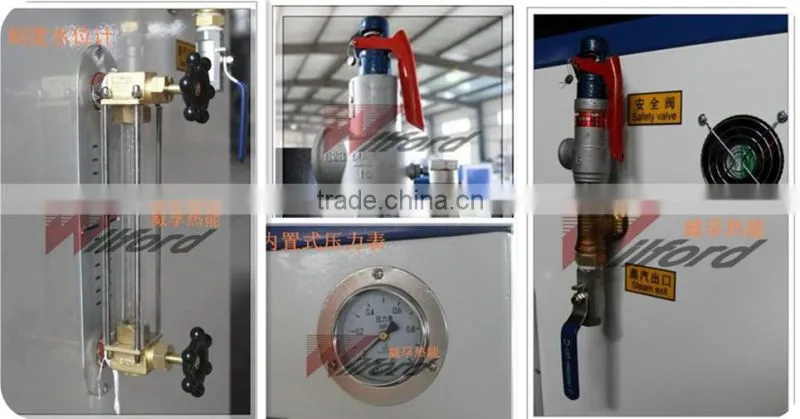

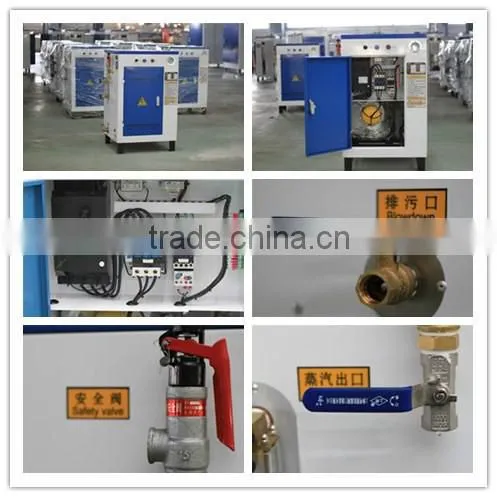

Boiler parts
Advantages
1.Boiler water volume is small,with quick start of cold furnace
2.Which can realize temperature and pressure rise during a short period of time.
3.Built-in multi steam and water separation technology, quality steam;
4.With multiple chain protection for water level,steam pressure,overheating,is safe and reliable.
5.With ASME,TUV,SGS to ensure the good quality.

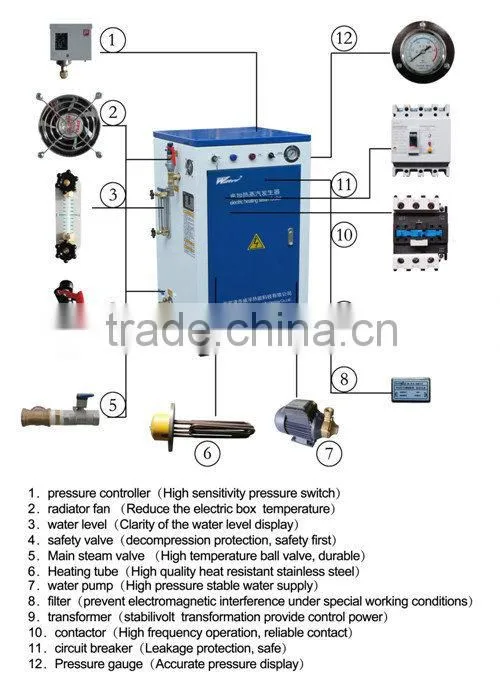

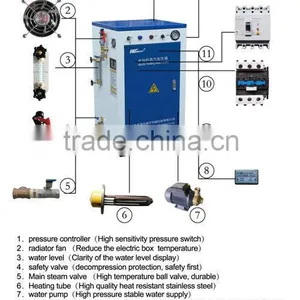

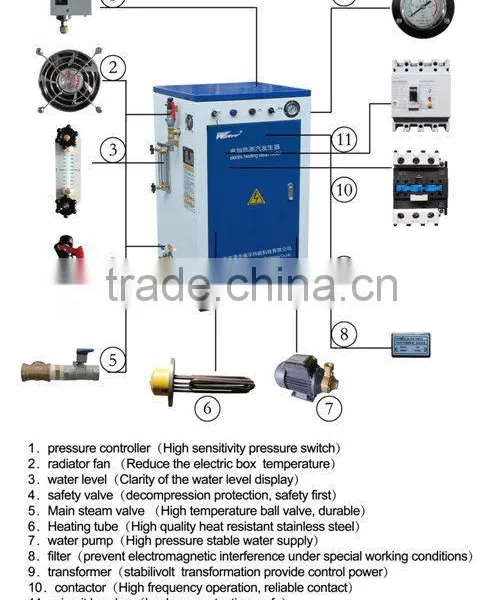

Structure specification
Boiler certificates

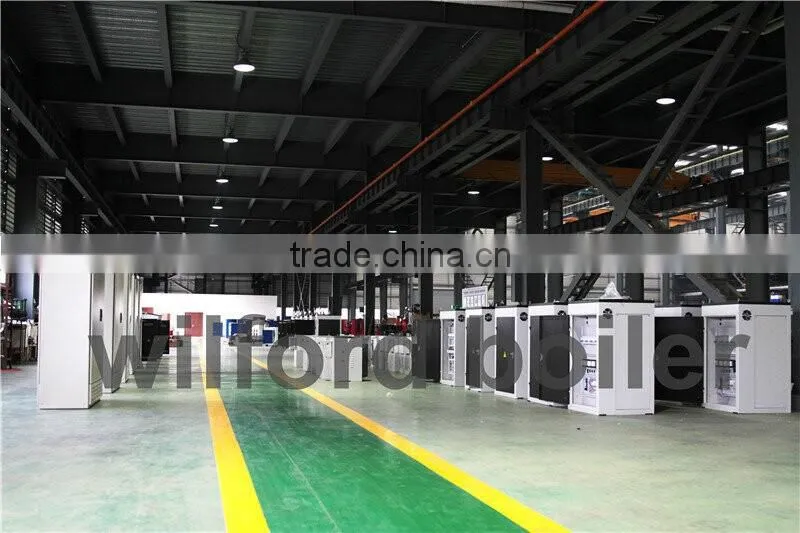

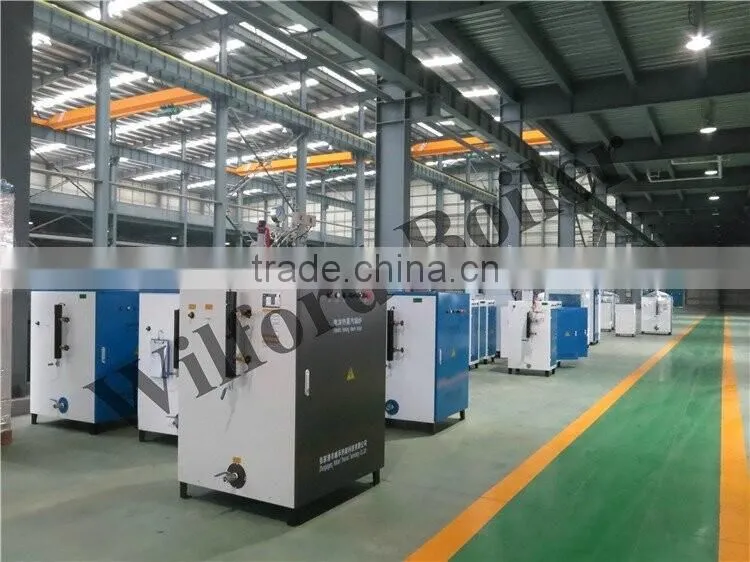

Boiler Factory
1. Wilford company is specialized in manufacturing and selling steam boiler for many years .
2.Our worker have experience to produce machines professional and skilled,so the machine workes well with high quality.
3.All parts of our machines are famous brand in China or in international,so it make sure our machine have high quality with long lifetime.
4. Our company provides 24 hours online services and technical supports for customers.
Application
Building heat, chemical processing, health care, laundry industrial, paper processing, textiles,hotel,school,washing,cleaning etc.

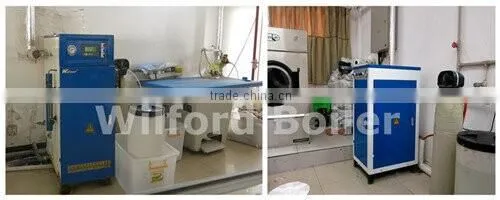

Customers
Factory assurance
1.1-year warranty with full life after-sale services
2.Powerful technical support and services
3.Different voltage available
4.Fast respond with 10 minutes
5.Good after-sale service offered
6.Create you long-term profits
