High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption

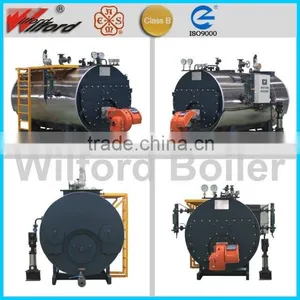

High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption thumbnail-1

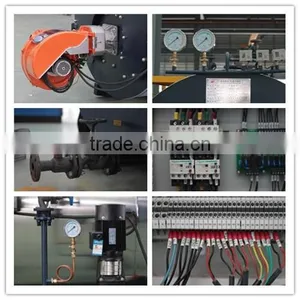

High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption thumbnail-2
High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption thumbnail-3
High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption thumbnail-4
High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption thumbnail-5

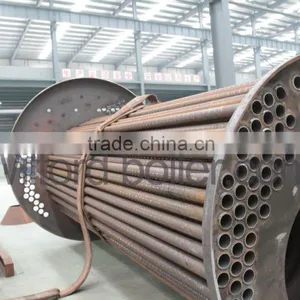

High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption thumbnail-6
High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption photo-1
High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption photo-2
High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption photo-3
High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption photo-4

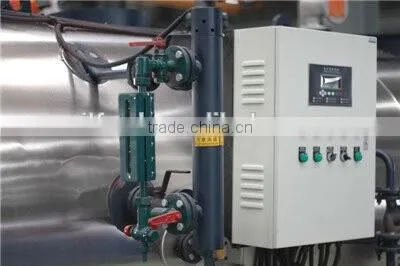

High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption photo-5
High Quality 0.5-2t/h Hot Sale Heavy Oil Steam Boiler With Low Consumption photo-6
US$ 13,500 - 27,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Contact Supplier Request Quote Chat Now
Zhangjiagang Wilford Thermal Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port.China .0.5-2t/h heavy oil steam boiler
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Natural Circulation
Usage Industrial
Structure Fire Tube
Pressure High Pressure
Style Horizontal
Fuel Other, Oil-fired, HFO ,diesel oil or LPG ,NG ,pipeline gas
Place of Origin Jiangsu, China
Brand Name WILFORD
Model Number WNS,0.5-2t/h heavy oil steam boiler
Output Steam
Dimension(L*W*H) Depend
Weight Models, 3.3-49.5T
Certification ASME ,CE ,ISO
After-sales Service Provided Engineers available to service machinery overseas

Product Description

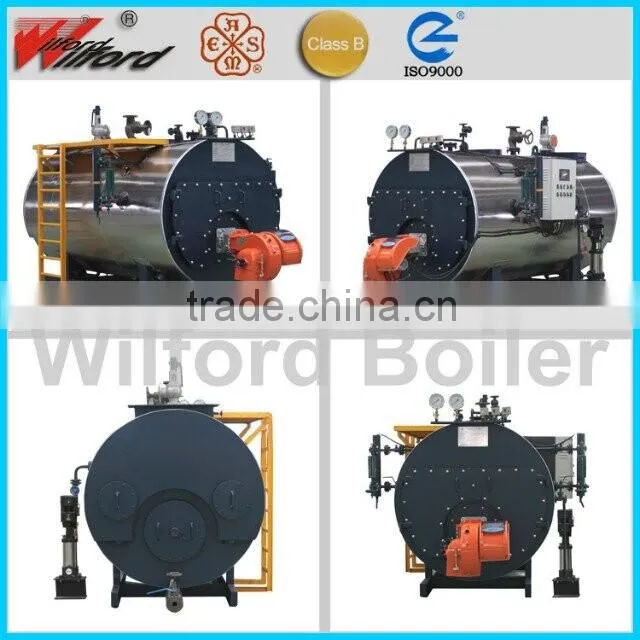

0.5-2t/h heavy oil steam boiler



High quality 0.5-2t/h Hot sale Heavy Oil Steam Boiler with Low consumption



1) Description :

         1. Specially desigh: It uses the most mature three-pass all wet back structure in the word, safe and reliable

        2.  High Quality steam :The water capacity in steam drum is large,with large steam room and quality steam            and small fluctuations of water level in running.

      3.  Safe and reliable: the boiler is installed with multiple safety control system, including pressure,                          temperature,and water level.

      4.  Environmental protection:The unique design of the large burning chamber can increase the radiation of            hearth heating area and reduce the volume of boiler and NOx emissions.

      5.  High efficiency:Horizontal structure has area ample heated and adequate heat transfer,the boiler is                  stable in running when load changes.

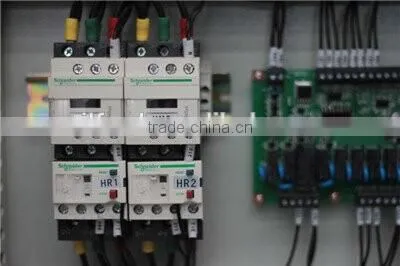

      6.  Full automatic: Equipped with advanced touch screen controller,digital prosecution system.



2) Application Scope:

Industrial usage: the pharmaceutical, paper making, tobacco, printing and dyeing, garment, Beverages and other industries,
Civil usages: get heating, restaurant,hotel, laundry room,sterilization, (hospital) disinfection, sauna, etc



3)Technical Parameter



WNS Oil Gas Steam Boiler

Type

0.5

1

1.5

2

3

4

Project



Rated evaporation(t/h)

0.5

1

1.5

2

3

4

Rated working pressure(MPa)

0.7

1

1

1

1

1.25

Rated steam temperature(℃)

170

184

184

184

184

193

Fuel consumption

(Nm ³/h)





Light diesel oil

35

70

105

140

210

260

Natural gas

40

80

120

160

240

280

Liquefied gas

15

30

45

60

90

120

Pipeline gas

85

170

250

340

510

680

Main steam valve diameter(DN)

40

65

65

80

80

100

Safety valve diameter(DN)

40

50

50

40 ×2

40 ×2

50 ×2

Infall diameter(DN)

25

25

40

40

40

50

Overall size(mm)

L

3800

4500

4700

4800

5500

6310

W

1900

2500

2800

2900

2900

2950

H

2100

2680

2950

3250

3880

3120

Steam boiler weight(T)

3.3

4.6

5.8

7.1

9.2

11

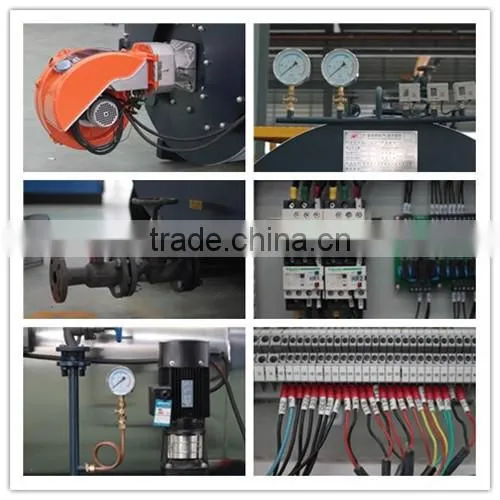

4)The details :



High quality 0.5-2t/h Hot sale Heavy Oil Steam Boiler with Low consumption

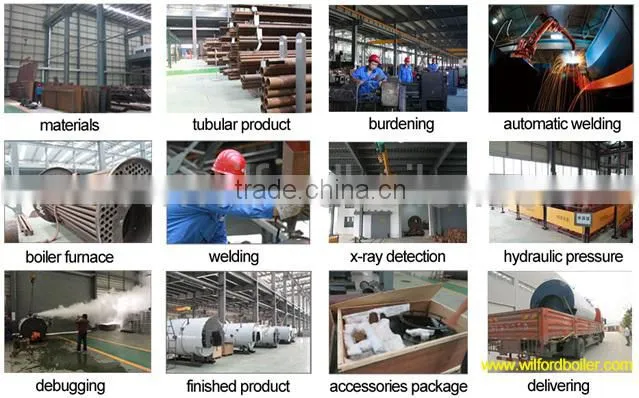

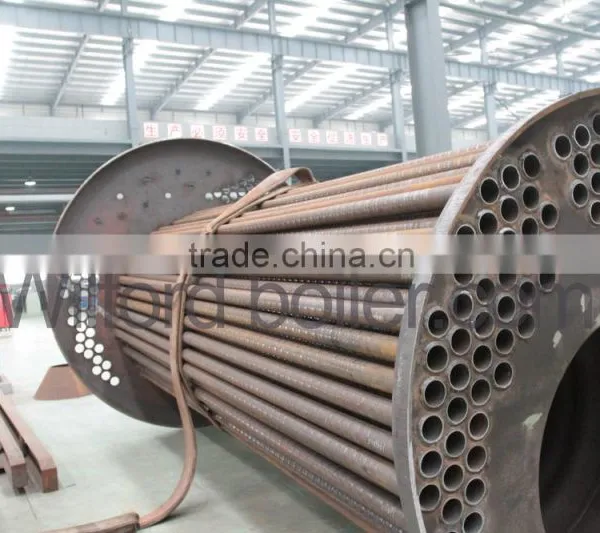

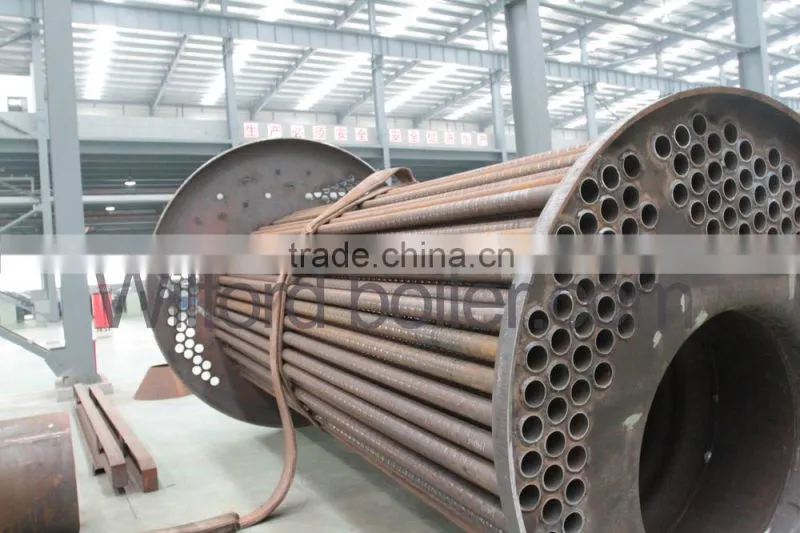

 5) WNS model steam boiler Manufacture Process High quality 0.5-2t/h Hot sale Heavy Oil Steam Boiler with Low consumption
After-Sales Service

1.1-year warranty with full life after-sale services

2.Powerful technical support and services

4.Fast respond within 10 minutes on line

5.Whole life factory cost spare parts .



Product Overviews

      Other boiler types of Wilford (click on the picture to see more details)

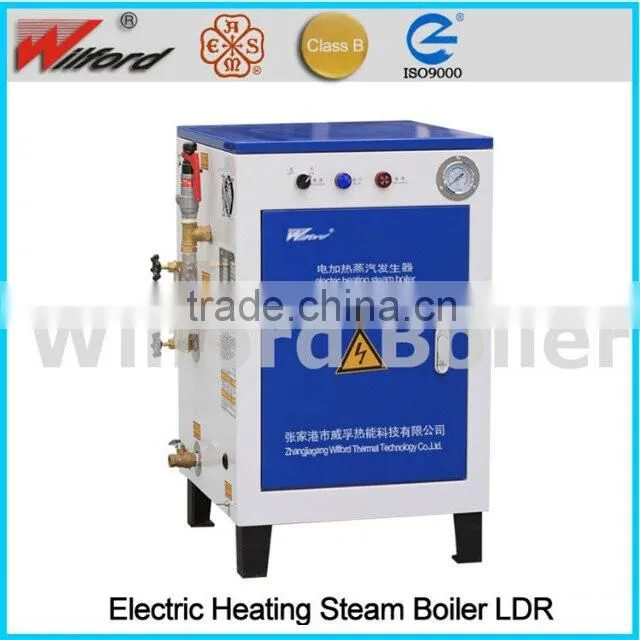

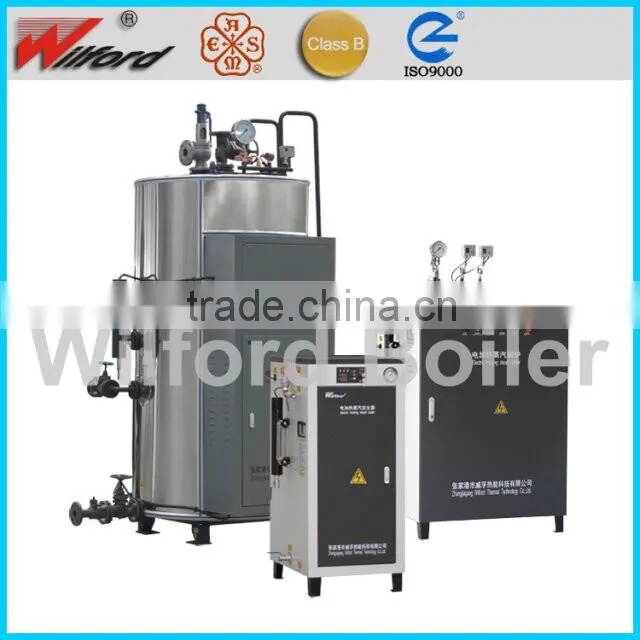

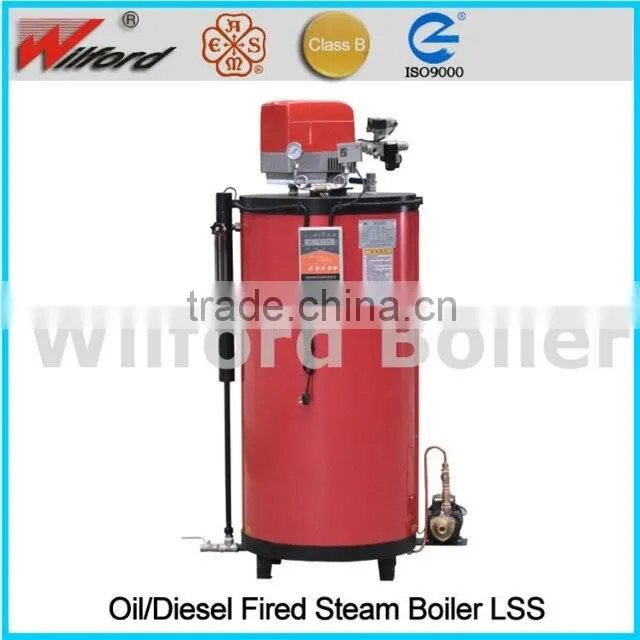

      Electric steam generator                Oil/gas steam boiler                    Electric steam boiler           Horizontal oil/gas steam boiler

High quality 0.5-2t/h Hot sale Heavy Oil Steam Boiler with Low consumption        High quality 0.5-2t/h Hot sale Heavy Oil Steam Boiler with Low consumption            High quality 0.5-2t/h Hot sale Heavy Oil Steam Boiler with Low consumption      High quality 0.5-2t/h Hot sale Heavy Oil Steam Boiler with Low consumption







Contact information

Contact person: Sonja

Skype:sonjawilford

Mob: 0086 17701567985

Wechat:(86)17701567985

Whatsapp:(86)17701567985
